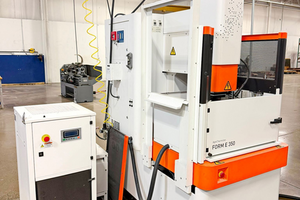

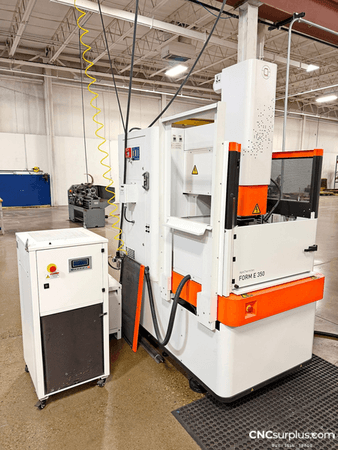

2018 AGIE CHARMILLES FORM300

Equipped With
CNC controlled c-axis
Chiller unit
Intelligent speed power generator
TECHFORM expert system
IQ graphite & copper electrode wear reduction module
Closed-loop linear glass scales
System 3R electrode tooling interface
Handheld remote jog pendant
Automatic dielectric management system
Integrated dielectric filtration system
Integrated fire suppression system
Assorted tooling


Specifications


Power Pack 80 A
Table Size-W 15.75"
Table Size-L 24.81"
X-Axis Travel 13.78"
Y-Axis Travel 9.85"
Z-Axis Travel 9.85"
X-Axis Speed 157 in/min.
Y-Axis Speed 157 in/min.
Z-Axis Speed 236 in/min.
Max Workpiece Weight 400 lb
Max Workpiece Size 31.5" X 19.69" X 10.44"
Max Electrode Weight 110 lb
Max Electrode Weight (C-Axis) 55 lb
Distance Floor To Table 35.43"
Worktank Dimensions 37.60" X 21.26" X 13.78"
Tank Capacity 71.33 gal
Control CNC (AC FORM HMI)
Dimensions 68.15" X 39.37" X 93.39"
Weight 3,813 lb

Type: CNC Sinker
