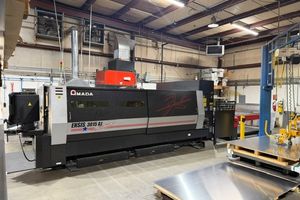

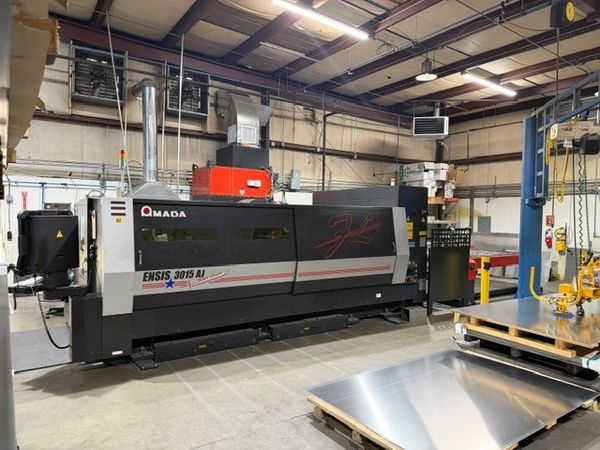

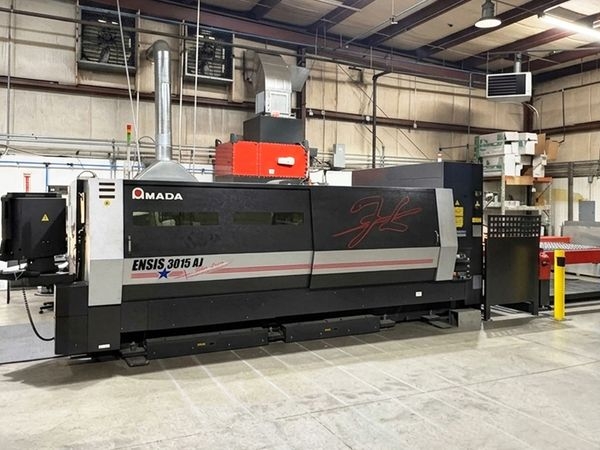

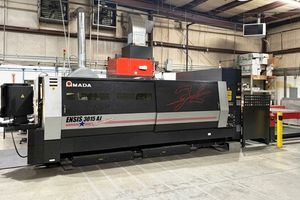

2019 AMADA ENSIS 3015 AJ

X Axis Travel: "
Y Axis Travel: "
Z Axis Travel: "
Travel Method: Z-Axis Movement Cutting Head
Control Method X,Y,Z: Sim. 3-Axis Control
Drive Motors: Fanuc AC Servo Motors
Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis
Max. Axis Pos. Speed X,Y: 6,693"/min. 45° Vector
Max. Z-Axis Speed: 4,724"/min.
Repeatability: 0.00039"
Max. Material Weight: 2,028 lbs.
Data Storage: Compact Flash Drive
Resonator Type: Fiber
Resonator: LD Excited YB Fiber
Power Output: 9KW (9,000 Watts)
Laser Wavelength: 1.08 m
Power Stability: ±2%
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1–10000Hz
Pulse Duty: 0–100%
Max Cut Mild Steel: .98”
Max Cut Stainless Steel: .98”
Max Cut Aluminum: .98”
Max Cut Brass: .70”
Max Cut Copper: .46”
Assist Gas: 4 Ports w/ NC Pressure Control
Electrical Req.: 200V, 3-Phase, 60Hz, 65kVA Max
Dimensions with Shuttle Table: 399 x 111 x 88
Dimensions:
Weight: 26,675
Power: 20.4W
Cutting Speed: IPM

AMNC 3I
bought unit new installed September of 2020
