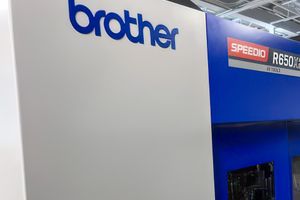

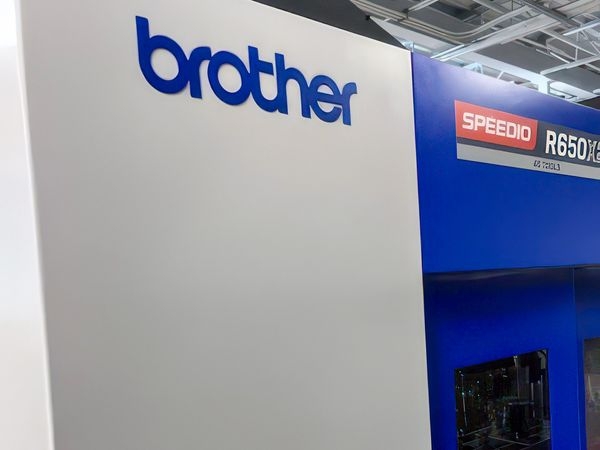

2021 BROTHER SPEEDIO R650X1

Machine Type:
Vertical machining center with dual-face QT pallet changer.

Axis Travels:
X-axis travel: 650 mm
Y-axis travel: 400 mm
Z-axis travel: 305 mm

Spindle:
Standard spindle speed: 10,000 rpm
Optional spindle: 16,000 rpm high-speed
Optional for both: high-torque versions and Big-Plus dual-contact spindle

Rapid Traverse Rates:
X-axis: 50 m/min
Y-axis: 50 m/min
Z-axis: 50 m/min

Tool Magazine:
Standard capacity: 14 tools
Optional capacity: 22 tools

QT Pallet Table:
Table size (each face): 800 mm × 535 mm
Maximum table load: 200 kg per pallet (higher load available as option)
Pallet change time: approximately 3.4 seconds

Control System:

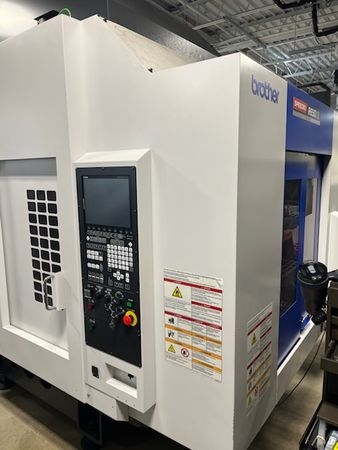

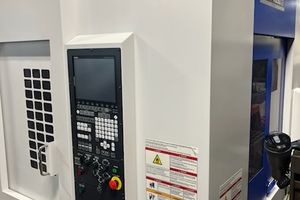

Brother C00 control (conversational and G-code compatible)

Machine Footprint:
Approx. required floor space: 1,837 mm × 3,248 mm

Notable Features:

Ultra-fast acceleration and rapid moves

High-speed pallet changer for minimal non-cutting time

Optional coolant-through spindle

Energy-saving power regeneration and efficient pumps

Sealed chip-containment structure

Probe
Chip Conveyor
Coolant Thru Spindle
4th Axis Rotary Table
