Machine Overview

Specs:
CNC Control: yes
Control Type: Brother
# Axis: 4
Table Size: 23.6" x 16.7"
Table Capacity: 441 pounds
X-Axis Travel: 31.7"
Y-Axis Travel: 15.7"
Z-Axis Travel: 16.3"
Rapid Traverse Rate (X/Y/Z): 2,756 ipm
Spindle Taper: BT-30
Spindle Speed: 16,000 rpm
Main Motor: 15 hp
Tool Changer Capacity: 40
Coolant Thru Spindle: yes
Machine Dimensions: 75" x 145" x 93"
Machine Weight: 10,500 pounds
Description:

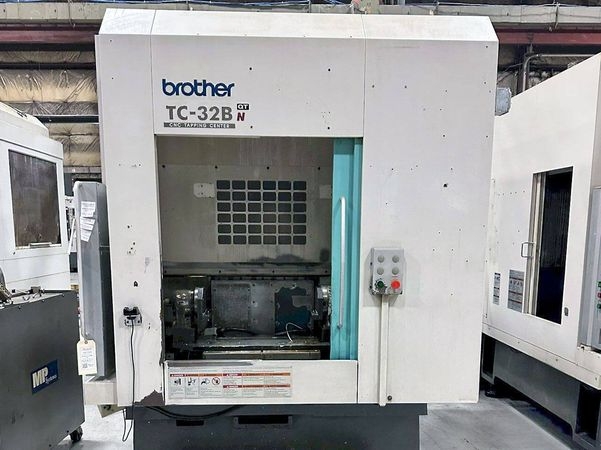

This 2008 BROTHER TC32BNQT is a machine tool that boasts a wide variety of specs. It comes with a Brother type CNC Control that helps in easy handling and operation of the machine. As an ideal unit for heavy cutting and prolonged use, it can carry a maximum weight of 441 pounds on its 23.6" x 16.7" table.

There are four different axes on this machine - the X, Y, and Z and a spindle. The X-Axis has a travel distance of 31.7", the Y-Axis 15.7", and the Z-Axis 16.3". Fast work is made possible with a Rapid Traverse Rate (X/Y/Z) of 2,756 inches per minute.

This machine comes with a BT-30 Spindle Taper and can reach speed up to 16,000 rpm. The Main Motor is rated 15 horsepower which enables it to perform with enough strength. It comes equipped with a tool changer that has a capacity to hold up to 40 tools, allowing for a quick and easy tool changeover.

One of the key features of this machine is its ability to enable Coolant through the Spindle. This distinct ability keeps the machine running cool and prevents overheating, especially during long hours of operation.

The physical dimensions of the machine are 75" x 145" x 93" and it has a total weight of approximately 10,500 pounds.

All in all, this 2008 BROTHER TC32BNQT is built for tough jobs and continuous work. If you want a machine that demands less from you and does more by itself, this 2008 BROTHER TC32BNQT could be a prime choice.
