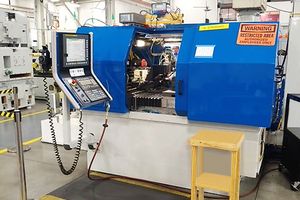

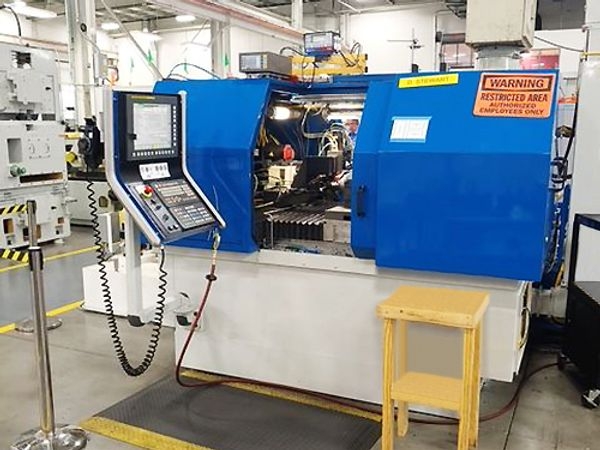

Max Grinding Bore 9"
Stroke 10"
Travel-Long 10"
Workhead Swivel 30
Dresser Yes
Minimum bore: 0.40in
Maximum swing: 6in
Maximum bore (chucker): 4in
Maximum bore (shoe centerless): 5.5in
Maximum length of bore: 3in
Maximum Z axis travel: 10in
Maximum X axis travel: 2in
Z Axis resolution: 0.000016in
X Axis resolution: 0.000004in
Work speed (shoe centerless): 1,850RPM
Work speed (chucker): 4,000RPM
Shoe centerless work drive motor: 1.5HP
Chucker work drive motor - valve lifter: 1.0HP
Maximum spindle speed: 120,000RPM
Equipped with: 30,000 RPM Hi-Frequency rotary diamond dresser
Other Features: Shoe type grinder, 2 Axis CNC Kollmorgen Servos, 2 Point control gaging 852, Allen Bradley Panel View Touch Screen
maximum external diameter: 177mm
bed design: Special torque tube design
thermal stability enhancement: Oil and coolant circulation through the base
leveling support: Three-point leveling support
slide mounting: Independent X and Z round bar hydrostatic slides mounted directly to the base
loading solutions: Automatic workpiece loading solutions available
gaging systems: In-process and post-process gaging systems available
monitoring system: Acoustic emission monitoring system (AEMS)
control system: Fanuc i Series control
Equipped With:
In-Process Gage System For Bore Diameter Inspection, Mounting, Controller
Sbs Acoustic Emission Sensing For Dress
Sensor For Part Present On Inlet, Outlet And Work Head
Dryer For Part Blowoff
Poka-Yoke System For Part Load
3-Position Switch For Auto/Dressing/Manual
Work Driver Tooling – Chuck
Pole Extenders
Shoe Bodies; With One (1) Set Of Shoe Pads
Shoe Centerless Fixture; With Mounting For Arms To Hold Shoes
Cbn Rotary Diamond Dressing Tool
Dresser Mount For Orientation (Vertical)
Cbn Grinding Wheel - Face
Cbn Grinding Wheel - Bore
Cbn Grinding Wheel - Od
Cbn Grinding Wheel Quill
Weight: 13,900
