Machine Overview

Specs:
Features:
PT-508 Panther Machine ATC

• Dual supported moving gantry, fixed table design, all steel construction

• 61” x 97” Work Envelope

• 10” gantry clearance & 11” Z axis stroke

• Z pneumatic counterbalance

• Hiwin bearings on all rails and axis

• 5HP HSD Manual Spindle

• Brushless AC Servo drive system

• Precision 25mm linear motion systems on all axes

• Helical Rack & pinion

• 2000 ipm rapid travel speed

• Dust boot w/ 4" connection

• Upgraded Dust boot and aluminum assembly 03/2025

• 1" Sealed MDF Table Top

• WinCNC multi-axis controller W/ PC, Keyboard, Mouse, & Flat LCD Monitor

• Lifetime Technical Phone Support

• SP HSD-ATC
••Upgraded to HSD5HP Automatic Toolchanging Spindle.
••Cooling by electric fan.
••Ceramic bearings.
••Includes variable frequency drive (inverter) and necessary hardware, wiring, and control system upgrades to accommodate this option.
••Automatic Spindle ON/OFF control and speed control from G-code, Tool Holders & Forks

• 7W Diode Laser Engraver. Capable of both Vector and Raster engraving.

• Automatic Lubrication System.
••Each bearing on the machine, plus the z-axis ballscrew, is connected to a central lubrication dispenser that automatically provides a pressurized, ••programmable, time metered grease feed.

• 3 Location Pins for quick and easy part placement. Each pin set consists of 3 pins.

• Hurricane Vac System. 208-230V Single Phase Power @ 30A. 400 cfm 9.5 In Hg System Includes:
•• 4 Industrial Vacuum Motors @ 20,900 RPM
•• Inlet and Exhaust Filters
•• 4 Valterra Blast Gate Sliding Valves to control vacuum to desired zones - Vacuum Gauge
•• Vacuum Grided Table Top and Plumbing

Options:
WinCNC
Dust Collector
Vacuum System
Auto Lube System
Locating pop up pins
Phenolic table top
Hurricane vac hold down system
Cold air gun plumbing
7w laser engraver
Description:

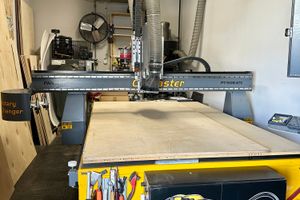

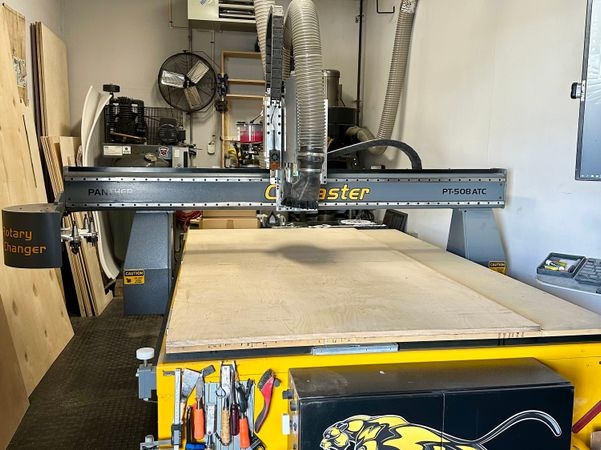

This 2021 CAMASTER PANTHER Router is a robust CNC machine that combines precision and advanced technology for various routing projects. Controlled by the intuitive WinCNC system, this machine ensures a seamless and smooth operation.

The machine comes with several valuable upgrades and options. It includes a Dust Collector and a Vacuum System, which help maintain a clean and safe work area by removing debris and particles during operation. The Auto Lube System is an added feature that contributes to the smooth functioning of the machine's moving parts.

Additionally, locating pop-up pins assist in the precise positioning of materials to ensure accuracy in every cut. The Phenolic table top offers durability and a stable surface for extensive projects.

Equipped with a Hurricane vac hold down system, this router firmly secures materials in place, reducing errors and ensuring consistency throughout production. The inclusion of cold air gun plumbing facilitates efficient cooling during intricate procedures.

A standout feature is the 7w laser engraver, which allows for detailed and specific engraving tasks, expanding the machine's versatility beyond traditional cutting and routing.

This CAMASTER PANTHER Router is a comprehensive tool suited for both small and large woodworking or fabrication projects, designed to deliver precise and high-quality results consistently.
