2010 CINCINNATI PROFORM

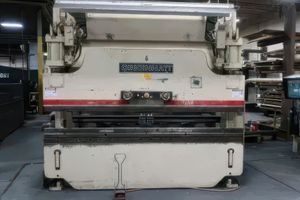

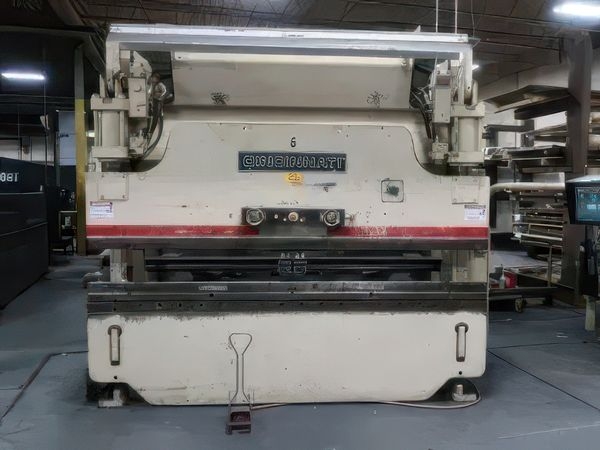

This 2010 CINCINNATI PROFORM is a well-designed machine made for precise metal forming tasks. With a tonnage capacity of 90 T, this press brake can handle a variety of projects with ease. It boasts an overall length of 10 feet and space between housings of 8 feet, providing ample room for a range of materials.

The specified stroke of 8 inches and the CNC control from Cincinnati Proform ensure precise operation and adaptability to different project requirements. This machine measures 12 feet 7 inches by 5 feet 6 inches and weighs in at 16,000 pounds, showcasing its sturdy construction.

In terms of bending capabilities, it can bend materials up to 9 feet by 10 GA and 5 feet by 1/4 inches. The maximum stroke length is 8 inches, while the open height and closed height are 15 inches and 7 inches respectively, offering flexibility for various bending tasks. The throat depth is generously set at 7 inches.

The ram speed includes an approach/high speed of 260 inches per minute (IPM), a forming/variable speed range of 1 to 80 IPM, and a return speed of 280 IPM. Powered by a 15 HP motor, this machine is built for efficient performance in demanding environments.

It is also equipped with a 5-axis pendant mounted programmable CNC back gauge, a pedestal-mounted palm button operator station, and a 3-position footswitch. These features add to the ease of use and provide enhanced control during operation.

This CINCINNATI PROFORM maintains a balance of size and strength, well-suited for those in need of a reliable solution for their metal forming needs.
