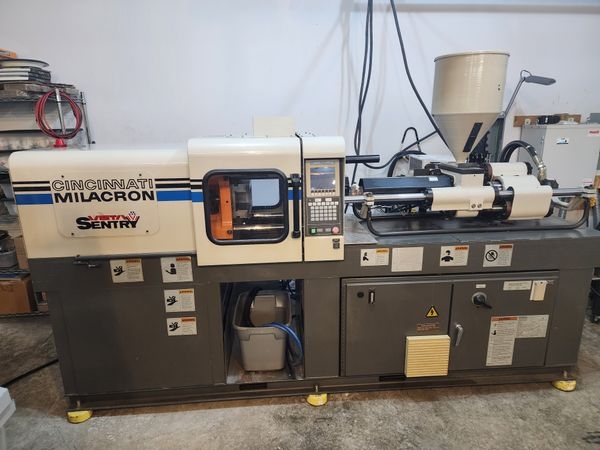

Used CINCINNATI VSX33 Injection Molding
Pre-owned CINCINNATI VSX33 1998 Injection Molding. This Injection Molding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This CINCINNATI Injection Molding is available for a limited time. Get a quote today on this VSX33 before it's gone.
Specs:
Max Hydraulic Pressure: 2600 PSI
Electric Motor: 10 HP
Hydraulic Pump Capacity @ 100 PSI: 12 gpm
G.P. Styrene: 2.27 Oz
Theoretical Disp: 4.13 in^3
Injection Pressure: 30,000 PSI
Injection Rate: 3.45 in^3/sec
Injection Screw Stroke: 4.33"
Screw Diameter: 1.1"
Screw L/D Ratio: 23 : 1
Max Screw Speed: 400 RPM
Torque at Screw: 2400 in-lb @ 2475 PSI
Number of Pyrometers: 31
Total Heat Capacity: 5.36 Kw
Dimensions: 122.3" x 44.4" x 78.1"
Weight: 4380 Lbs
Electric Motor: 10 HP
Hydraulic Pump Capacity @ 100 PSI: 12 gpm
G.P. Styrene: 2.27 Oz
Theoretical Disp: 4.13 in^3
Injection Pressure: 30,000 PSI
Injection Rate: 3.45 in^3/sec
Injection Screw Stroke: 4.33"
Screw Diameter: 1.1"
Screw L/D Ratio: 23 : 1
Max Screw Speed: 400 RPM
Torque at Screw: 2400 in-lb @ 2475 PSI
Number of Pyrometers: 31
Total Heat Capacity: 5.36 Kw
Dimensions: 122.3" x 44.4" x 78.1"
Weight: 4380 Lbs
Options:
Topstar MD-80 3 Axis Robot
Mokon Heater
Penguin Chiller
Mokon Heater
Penguin Chiller
Price:
Call For Price
Owner:
TimM525
(Machine Shop in USA)
