Machine Overview
Maximum Machining Diameter: 16mm (5/8")
Maximum Machining Length: 200mm
Main Spindle Speeds: 200 - 15,000 RPM
Main Spindle Indexing: C-Axis
Back Spindle Speeds: 200 - 10,000 RPM
Sub-Spindle Indexing: C-Axis
Rotary Tool Speeds: 200 - 6,000 RPM
Back Spindle Max Chucking Diameter: 20mm
Turning Tools: 5
Rotary (Live) Tools: 4
Front Endworking Tools: 3
Back Endworking Tools: 3
Rapid Traverse (X/Y/Z): 20 m/min
Main Spindle Drive: 3.7 KW
Back Spindle Drive: .15 KW
Rotary Tool Drive: .75 KW
Electrics: 220 Volt 3 Phase
Shipping dimensions:
Machine: 72” x 45” x 82” 4,700 lbs
Chip Pan: 40” x 38” x 25” 500 lbs
CAV 16-IS barfeed: 18’ x 2.5’ x 6’
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
CAV16-IS Barfeeder
Parts Conveyor
4 Live tool holders
Misc Collet Bushings

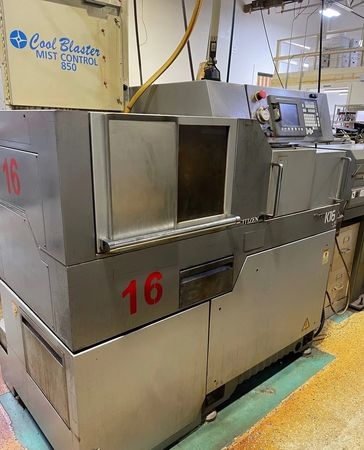

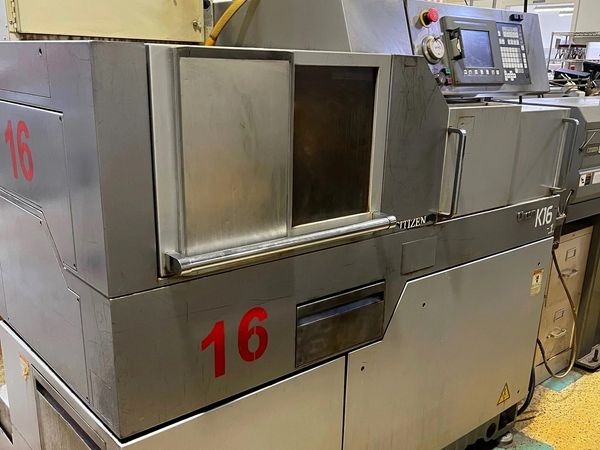

Pre-owned CITIZEN K16 VII 2007 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in California. This CITIZEN CNC Lathe is available for a limited time. Get a quote today on this K16 VII before it's gone.
