Machine Overview
Main side
Number of axis (total) 10 + 2
Main spindle Z1 + C1+ B1
Gang tool post X1 / Y1
Maximum machining Ø (mm) 32 / 35
Maximum headstock stroke (mm) 320
Maximum spindle speed (Rpm) 8000
GBL- Specification NA
Motor Power (kW) 7,5
Gang tool post 1
Turning tools 5 x 16mm
Cross rotary tools 4 + X (OP)
Maximum speed (Rpm) 9000
Motor Power (kW) 2,2
Axis X1 / Y1
Front drill block
Fix tools Turret
Back side
Back spindle Z3 / X3 / Y3 / C2
Maximum machining Ø 32 / 35
Motor Power (kW) 3,7
Maximum spindle speed (Rpm) 8000
Back working tools
Number of tools 10 Turret + 9 back drill block
Maximum speed (Rpm) 6000
Motor Power (kW) 1,5
General info
CNC Control unit Meldas 700M
Dimension (mm) 2.520 x 1.382 x 1.750
Weight (Kg) 2900
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
B-AXIS CONTOURING 4 PLUS 1 AXIS
10 POSITION TURRET WITH LIVE TOOLING
CROSS DRILLING SPINDLES
MAIN AND SUB SPINDLE C-AXIS
HIGH PRESSURE PUMP
IEMCA BOSS 338 HD MAGAZINE BAR FEEDER

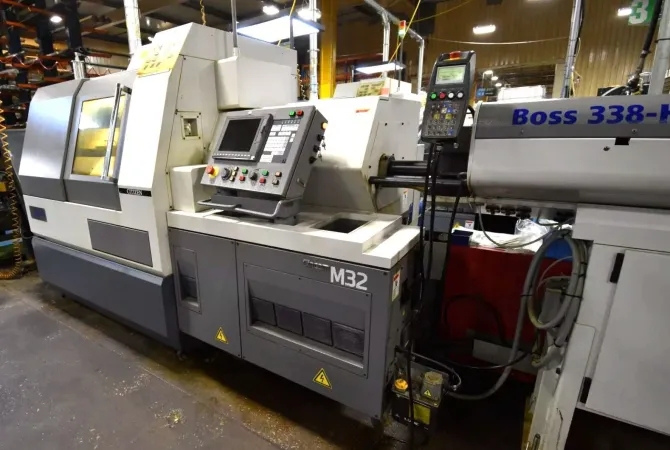

Pre-owned CITIZEN M32 2014 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Illinois. This CITIZEN CNC Lathe is available for a limited time. Get a quote today on this M32 before it's gone.
