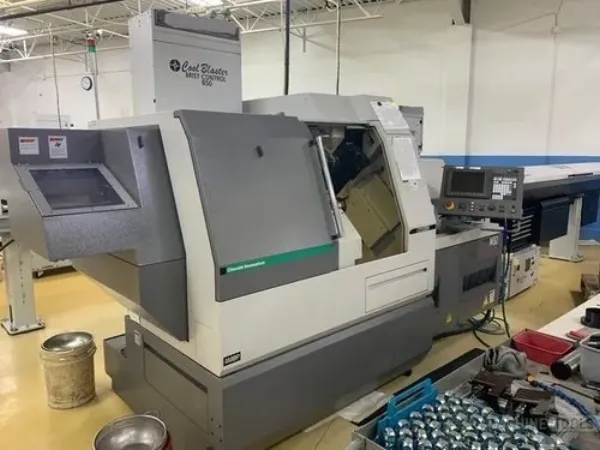

2011 CITIZEN M32 VIII

Bar Capacity: 32 mm (1.25")
Chuck Size: 32 mm (main spindle collet chuck); back spindle max. chuck diameter 32 mm
Spindle Speed: Max. 8,000 RPM (main and back spindle)
Spindle Motor: 7.5 kW (main spindle); 3.7 kW (back spindle)
X Axis Travel: X1: 108 mm; X2: 120.5 mm; X3: 235 mm
Z Axis Travel: Z1: 325 mm; Z2: 202 mm; Z3: 410 mm
Rapid Rate Z Axis: 32 m/min (all axes except X2 and Y2)
Turret Tools: 10 turret stations + 9 back drill block positions (19 total back-side tools); gang tool post has 5 turning tools + 4 cross rotary tool positions
Rapid Rate X Axis: 32 m/min (X1/Z axes); X2 axis: 18 m/min
Max Turning Dia: 32 mm standard / 35 mm (with guide-bushing-less mode)
Max Turning Length: 320 mm maximum headstock stroke
Max Swing: Not a traditional spec for Swiss-type sliding headstock lathes
Dimensions: 2,520 mm × 1,382 mm × 1,750 mm
Weight: 2,900 kg

Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Programmable B AXIS
Y AXIS TURRET
gang and turret configuration with live tools on B axis/turret/gang
High Pressure Coolant
Mist Collector
LNS Express 332 Magazine bar loader
long parts attachment
