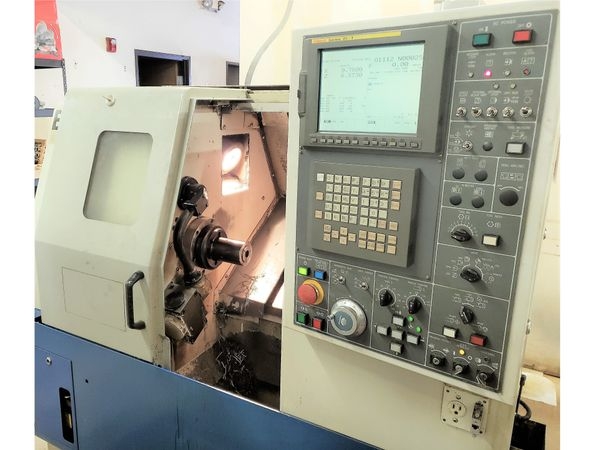

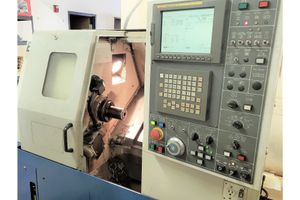

Used DAEWOO LYNX 200 CNC Lathe
Pre-owned DAEWOO PUMA 200 2001 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This DAEWOO CNC Lathe is available for a limited time. Get a quote today on this PUMA 200 before it's gone.
Specs:
Max Turning Diameter: 11.02"
Max Turning Length: 11.81"
Max Bar Capacity: 1.75"
Swing Over Cross Slide: 13.78"
Swing Over Bed: 18.11"
X Axis Travel: 6.3"
Z AXis Travel: 13.0"
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-5
Spindle Bore: 2.09"
Spindle Speed: 50 – 5,000 RPM
Spindle Motor: 5.5/7.5 KW
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
General:
Power: 25 kva, 220v / 3-Phase
Overall Dimensions: 102" x 63" x 63" High
Overall Dimensions: 76" x 63" x 6 High (w/o Chip Conveyor)
Weight: 6500 lbs
Max Turning Length: 11.81"
Max Bar Capacity: 1.75"
Swing Over Cross Slide: 13.78"
Swing Over Bed: 18.11"
X Axis Travel: 6.3"
Z AXis Travel: 13.0"
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-5
Spindle Bore: 2.09"
Spindle Speed: 50 – 5,000 RPM
Spindle Motor: 5.5/7.5 KW
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
General:
Power: 25 kva, 220v / 3-Phase
Overall Dimensions: 102" x 63" x 63" High
Overall Dimensions: 76" x 63" x 6 High (w/o Chip Conveyor)
Weight: 6500 lbs
Options:
Fanuc Series 21i-T
Tool Presetter
6" Chuck
Tool Presetter
6" Chuck
Price:
Call For Price
Owner:
EricM596
(Machine Shop in CO)
