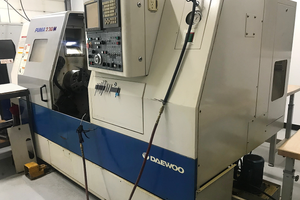

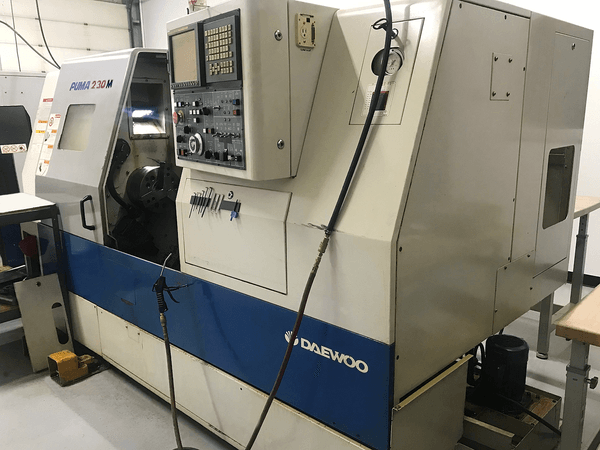

Used DAEWOO PUMA 230 CNC Lathe

Pre-owned DAEWOO PUMA 230 2003 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This DAEWOO CNC Lathe is available for a limited time. Get a quote today on this PUMA 230 before it's gone.

Bar Capacity: 3"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 9.53"
Chuck Size: 10"
Z Axis Travel: 22.83"
Rapid Rate Z Axis: 1,000 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 13.78"
Max Turning Length: 21.57"
Max Swing: 21"
Distance Between Centers: 26.3"
Spindle Nose: A2-8
Spindle Bore: 3.53"
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.9"
Tailstock Quill Travel: 3.15"
Power: 35 kva, 220v / 3-Phase
Dimensions: 117" x 62" x 72"
Weight: 9,500 LBS
