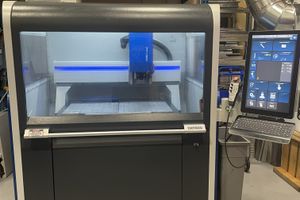

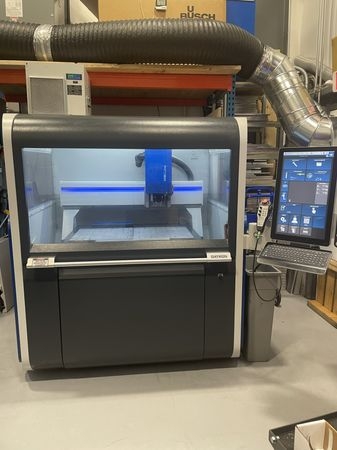

2021 DATRON M8

X Axis Travel: 40"
Y Axis Travel: 31.4"
Z Axis Travel: 9.5"
Rapid Rate X Axis: 800 IPM
Rapid Rate Y Axis: 800 IPM
Rapid Rate Z Axis: 800 IPM
Spindle Speed: 60,000 RPM
Spindle Motor: 2kW/2.66 HP
Spindle Taper: Straight Shank
Tool Changer: 15 ATC
Dimensions: 69 x 57 x 77
Weight: 1,760 LBS
2 kwatt (2.7 hp) high frequency Spindle up to 60,000 rpm
High Precision 3D Touch Probe (.01mm/.0004" accuracy)
Polymeric concrete table w/ cut-out for vertical clamping
Standard 6mm collet with optional sizes up to 8mm max.
Travel: 1,020 x 830 x 245 mm (40” x 33” x 10") (X, Y, Z)
Feed: Up to 22 m/min (866 in/min)
Standard Accuracy
ISO 230 Standard X,Y Positional +/- 0.0006” Repeatability +/- 0.0004” (mean values)
Linear Scale Accuracy: ISO 230 Standard X,Y Positional +/- 0.0006" Repeatability: +/- 0.0004" (mean values)
Tool Changer: Up to 143 stations automatic tool changer
Working Area: 39” x 27.5” x 7.5”
Dimensions: 69” x 69” x 77”
Machining Table: Polymeric concrete table with a cut out option for vertical part mounting
Touch Screen: 23” visual interface
Power: 400 volts three phase or 240 volts three phase with optional transformer
Weight: 2,866 LBS

Datron Next Control
Probe
Programmable Coolant
Spray Mist (Alcohol or Oil) Cooling System
2024 Busch MINK MM 1142 BV vacuum pump
Integrated camera setup system
Machine status indicated by LED lights within the gantry
Handheld remote control with machine override functions
Ergonomic side terminal for easy machine operation
Integrated air & vacuum ports to mount fixtures quickly
Conical centers for quick, repeatable mounting of jobs
