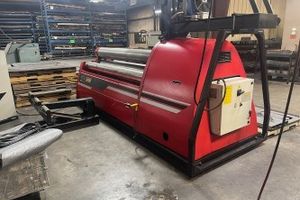

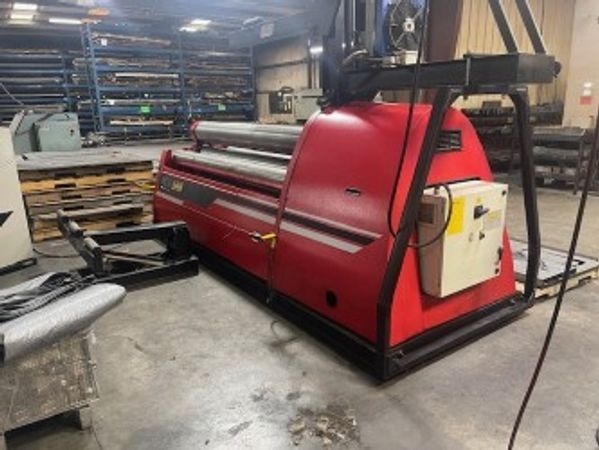

2015 DAVI MCA2527

Model: MCA 2527
Roll width (plate width): 2,550 mm (? 100 in)
DAVI
+3
iTec AS
+3
euromarket.bg
+3

Maximum rolling (sheet) thickness: 15 mm (~0.59 in)
POL-WELT
+3
DAVI
+3
DAVI
+3

Pre-bending (edge) thickness: 12 mm (~0.47 in)
DAVI
+1

Top roll diameter: 270 mm (~10.63 in)
euromarket.bg
+1

Bottom/corner roll diameter: 250 mm (~9.84 in)
euromarket.bg
+1

Motor / Electric power (listed in HP in spec table): 15 HP (~11.2 kW) for this model in one specification sheet.
DAVI
+1

Footprint / Weight (used machine data): e.g., a listing shows: length × width × height = 4,740 × 1,450 × 1,550 mm; weight ? 6,700 kg.
exapro.fr
+1

Notes / Additional context:

The “MCA” series are 4-roll machines where the bottom roll clamps the plate to ensure precise control and the side rolls apply bending force via a patented “Servo-Tronic” system.
DAVI
+2
DAVI
+2

The capacities (thickness, width) assume mild steel (e.g., UTS approx 450 MPa) and may vary for other materials or special alloy plates.
dnctecnica.com
+1

The model is well suited for cylindrical, conical shapes and automated production runs.
iTec AS
+1
