Machine Overview

Specs:
X-Axis Travel: 19.7
Y-Axis Travel: 17.7
Z-Axis Travel: 15.7
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Tool Capacity: 30 ATC
Rapid Traverse: 1,181 IPM
B-axis: tilt range from -5 to +110
C-axis: full 360 rotation, allowing complex 5-axis machining capabilities Equipped With:
21.5 ERGOline Operation Panel with Celos, Sinumerik 840Dsl, Multi-Touch Display and Tactile Control Keys
Chip Conveyor
Interface for Through-Spindle Coolant System
Rotating Clear-View Window
Coolant Gun
In-Machine Measuring System (spindle) Optical Signal Transmission Type Touch Sensor (Renishaw, OMP60)
In-Machine Measuring System (table) Laser System (BLUM)
Options:
Chip Conveyor
Description:

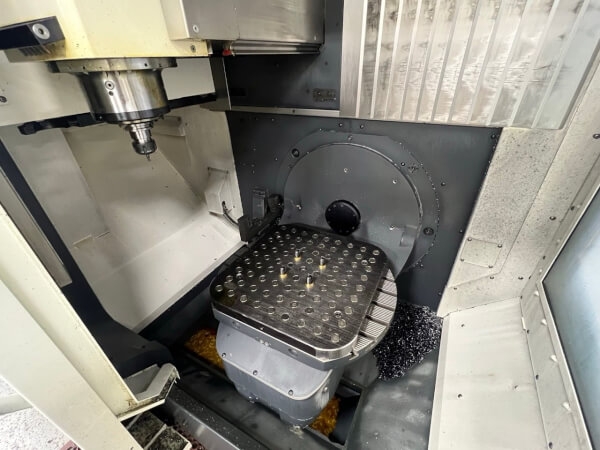

This 2018 DECKEL MAHO DMU50 is a top choice for those seeking advanced machining capabilities. Its included chip conveyor ensures a tidy workspace while enhancing operational flow.

With specifications tailored for precision, this machine boasts an X-axis travel of 19.7 inches, Y-axis travel of 17.7 inches, and Z-axis travel of 15.7 inches. The spindle reaches speeds up to 15,000 RPM and features a CAT 40 taper powered by a 30 HP motor. It holds up to 30 tools and offers rapid traverse rates at 1,181 IPM. Key to its capabilities, the B-axis tilts from -5 to +110 degrees, and the C-axis provides full 360-degree rotation, supporting complex 5-axis machining.

It comes equipped with a 21.5 ERGOline operation panel, featuring Celos and a Sinumerik 840Dsl multi-touch display with tactile control keys for an intuitive user interface. Additional components include a chip conveyor and an interface for a through-spindle coolant system, enabling smooth operations.

For enhanced visibility and monitoring, it includes a rotating clear-view window and a coolant gun. The in-machine measuring systems are a highlight, with spindle optical signal transmission via Renishaw's OMP60 touch sensor and a table laser system from BLUM, ensuring precise measurements and high-quality outcomes.
