Seller Needs:
$178,500|
1240
|
1

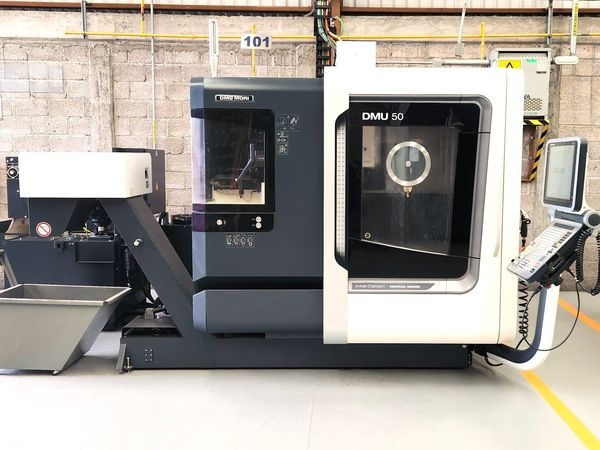

Pre-owned DMG DMU 50 2017 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Heidenhain control. This CNC Machine is currently located in USA. This DMG Vertical Machining...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 25.6"
Y Axis Travel: 20.5"
Z Axis Travel: 18.7"
Spindle Motor: 47 HP
Spindle Speed: 10,000 RPM
Spindle Taper: HSK-A63
Tool Changer: 60 ATC
Rapid Rate X Axis: 1,653 IPM
Rapid Rate Y Axis: 1,653 IPM
Rapid Rate Z Axis: 1,653 IPM
Max Table Load: 661 LBS
Max. Workpiece Diameter: 24.8"
Max. Workpiece Height: 23.6"
Table Size: 24.8" x 24.8"
Weight: 13,500 LBS
Y Axis Travel: 20.5"
Z Axis Travel: 18.7"
Spindle Motor: 47 HP
Spindle Speed: 10,000 RPM
Spindle Taper: HSK-A63
Tool Changer: 60 ATC
Rapid Rate X Axis: 1,653 IPM
Rapid Rate Y Axis: 1,653 IPM
Rapid Rate Z Axis: 1,653 IPM
Max Table Load: 661 LBS
Max. Workpiece Diameter: 24.8"
Max. Workpiece Height: 23.6"
Table Size: 24.8" x 24.8"
Weight: 13,500 LBS
Options:
Heidenhain
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Seller:
MariA486
Location:
USA
