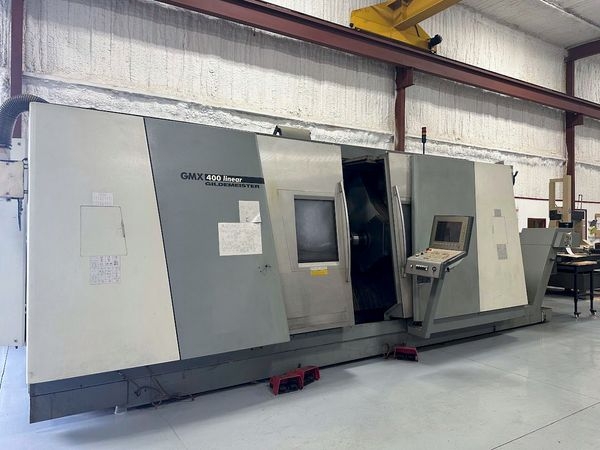

2004 DMG MORI SEIKI GMX400 LINEAR

Bar Capacity: 3.5"
Chuck Size: 12"
Spindle Speed: 4,000 RPM
Spindle Motor: 60 HP
Z Axis Travel: 62.4"
Turret Tools: 60 Station
Max Turning Length: 60"
Max Swing: 25.2"
Status Available
Number of axis 5-Axis
Tool changer 60 ATC
Control SIEMENS 840D
Spindle 12,000 rpm
Spindle taper HSK-A63
B axis +/- 120 degrees
Spindle number 2
Turret number 1
Spindle 1 4,000 rpm
Turret 1 12 Position
Spindle 2 4,000 rpm
Taper type VDI 40
Swing diameter 25.2"
Max. turning diameter 25.2"
Turning length 62.4"
Drive power (100%/40% dc) 60.3 hp
Max. speed (40% dc) 4,000 rpm
Torque (40% dc) 53.2 lb/ft
Torque c-axis 442.5 lb/ft
Chuck diameter 7.9-15.7"
Chuck currently on main spindle
SCHUNK ROTA THW plus 315-104
Max. bar diameter 3.5"
Rapid traverse speed x/y/z 1,574/945/2,755 ipm
Linear drive z1 1FN3900-3WB00
Slide travel x1/y (synchronous drive) 21.7"/+/-4.3"
Measuring systems absolute direct
Tool mount HSK63-A
Max. spindle speed 12,000 rpm
Max. drive power (40% dc) 29.5 hp
Max. torque (40% dc) 53.2 lb/ft
Indexing of spindle axis 1 Degrees
Swivel travel b1 (synchronous drive)
Plus or minus 120 degrees Resolution
0.001 Degrees Hydraulic clamping (at 435 psi)
Number of tool stations Shelf 60
Length/max. number 7.9/1.5-13.8/29.5

Siemens 8400 Powerline Controller
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
SMW Autoblok Steady Rest
SMW Autoblok Chucks
Tool Cabinet 120 GMX 400
High Pressure Coolant Pump
The machine comes with a large assortment of tooling.
