Hello!

Machine Overview

Specs:
X Axis Travel: 28.7"
Y Axis Travel: 28.7"
Z Axis Travel: 33.5"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Pallet Load: 1100 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Max Tool Size: 6.6"
Max Tool Length: 17.7"
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
Air Required: 90 psi, 4 scfm
Power: 45kva / 205-220v / 3-Phase
Dimensions: 165" x 105" x 100"
Weight: 22,000 LBS
Options:
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
M730BM CONTROL w/MAPPS
COORIDINATE SYSTEM ROTATION
48 WORKPIECE OFFSETS
PART PROGRAM STORAGE LENGTH 512 KB
1000 REGISTERABLE PART PROGRAMS IN TOTAL
CHIP BLASTER JV UNIT
IN-MACHINE MEASURING SYSTEM TOUCH SENSOR / TOOL SETTER
60 STATION AUTOMATIC TOOL CHANGER
CHILLER
Description:

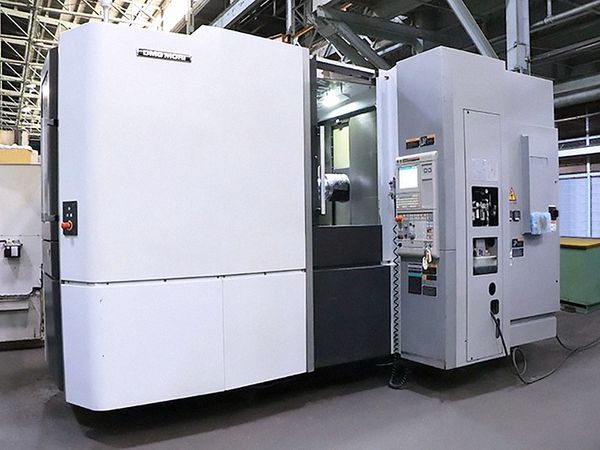

Up for grabs is a 2014 DMG MORI SEIKI NHX5000 Horizontal Machining Center. Built for the heavy-duty tasks, this machine tool features an array of options and upgrades tailored to simplify complex machining operations and boost productivity. This good-quality machining center can be a valuable addition to any manufacturing shop looking for a robust, modern, and versatile equipment.

Equipped with a Chip Conveyor, this machine facilitates easy and convenient removal of waste material (chips) hence preventing damage to your machine, and increasing its lifespan. It's got a Probe that allows for precise and accurate measurements of workpieces, along with a Coolant Thru Spindle system that prevents the tool from overheating, therefore, allowing for longer machining periods without the risk of damaging the machine.

The 2014 DMG MORI SEIKI NHX5000 boasts of remarkable of options such as the 360,000 Full 4th offering you unmatched accuracy by allowing you to position the workpiece to almost any angle. It is fitted with the M730BM CONTROL w/MAPPS, featuring a user-friendly interface that enhances programming capabilities and allows for easy operation and management of builds.

This machine has remarkable features like its generous PART PROGRAM STORAGE LENGTH of 512 KB and the ability to register up to 1000 PART PROGRAMS IN TOTAL. This makes it the machine of choice for tackling intricate designs and complex tasks. Its enhanced memory capacity means that you can save more part programs on the machine, offering greater flexibility and saving valuable production time.

Also incorporated in this machine is the premium CHIP BLASTER JV UNIT designed for high-pressure coolant delivery, thereby enhancing tool life and improving chip control. The IN-MACHINE MEASURING SYSTEM TOUCH SENSOR / TOOL SETTER feature of this machine dramatically improves accuracy by automatically compensating for tool wear, breakage, and thermal expansion often seen during machining processes.

You will find a solid 60 STATION AUTOMATIC TOOL CHANGER that helps to minimize the time it takes to swap out tools during machining processes, significantly reducing idle machine time and boosting productivity. Last but not least, the CHILLER unit guarantees machine's stability by maintaining a controlled operating temperature of all the critical components of the machining center, despite the shop environment.

The 2014 DMG MORI SEIKI NHX5000 Horizontal Machining Center is a robust and versatile machine that would deliver value to any manufacturing workspace. Contact us today to secure this unit.
