Machine Overview

Specs:
X Axis Travel: 28.7"
Y Axis Travel: 28.7"
Z Axis Travel: 33.5"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Pallet Load: 1100 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Max Tool Size: 6.6"
Max Tool Length: 17.7"
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
Air Required: 90 psi, 4 scfm
Power: 45kva / 205-220v / 3-Phase
Dimensions: 165" x 105" x 100"
Weight: 22,000 LBS
Options:
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
M730 CNC CELOS Control with Celos and MAPPS
Renishaw OMP 60 Probe
Metrol Touch Sensor
Coolant Thru Spindle 1000 PSI
Chip Blaster
Mist Blaster Unit
Mist Blaster Unit
Chiller
(2) Tombstones included
Cutting Time 7500 hours
Description:

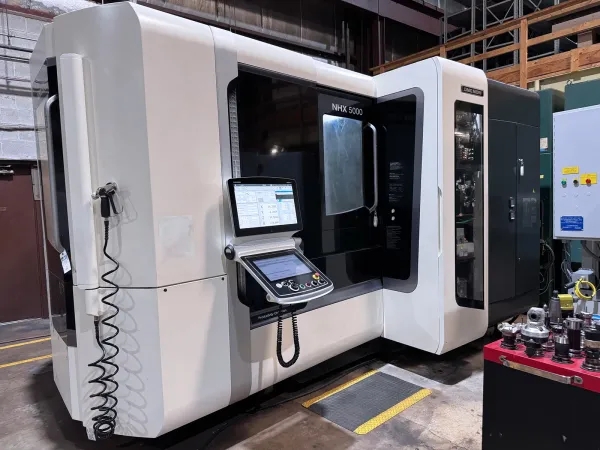

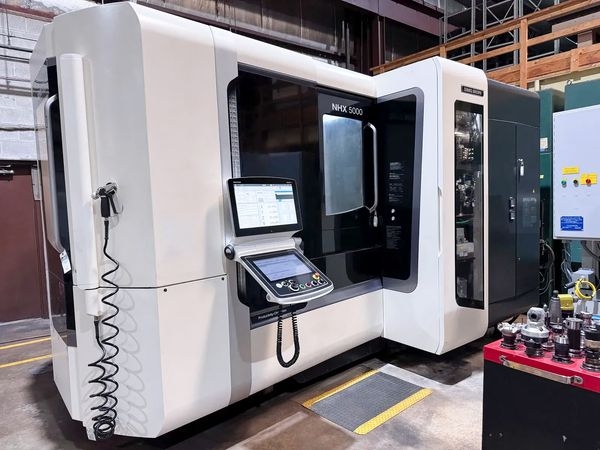

This 2015 DMG MORI SEIKI NHX5000 Horizontal Machining Center is available for purchase with a range of noteworthy features and enhancements. It comes equipped with a Chip Conveyor, Probe, and Coolant Thru Spindle, ensuring a functional and comprehensive machining setup.

Among its advanced options is the 360,000 Full 4th Axis and the cutting-edge M730 CNC CELOS Control system, complete with both Celos and MAPPS. The Renishaw OMP 60 Probe and Metrol Touch Sensor further contribute to its impressive capabilities, offering precision in operations.

The Coolant Thru Spindle operates at 1000 PSI, and a Chip Blaster accompanies the unit to ensure a cleaner work environment. The Mist Blaster Unit, listed twice for emphasis, enhances air quality by reducing airborne particles. Additionally, a Chiller is included, contributing to the machine's temperature regulation.

This machining center has two Tombstones, expanding its mounting and operational possibilities. While the machine's functional life includes 7,500 hours of cutting time, it remains in desirable condition for various machining tasks.
