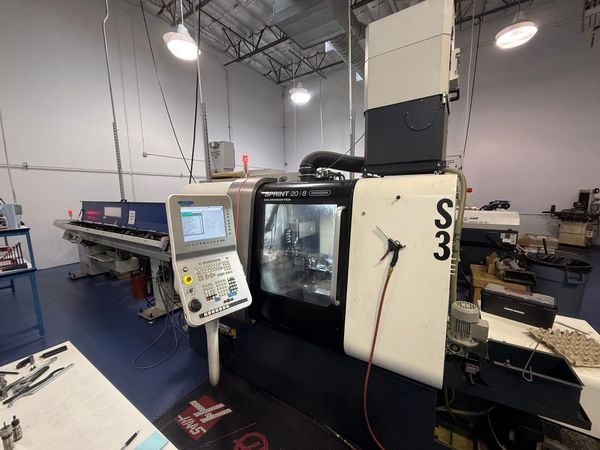

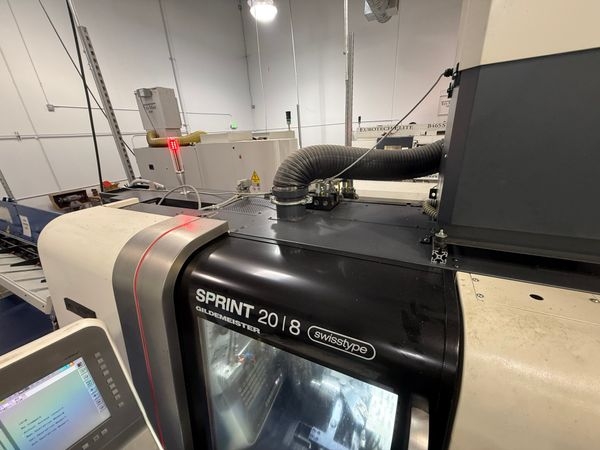

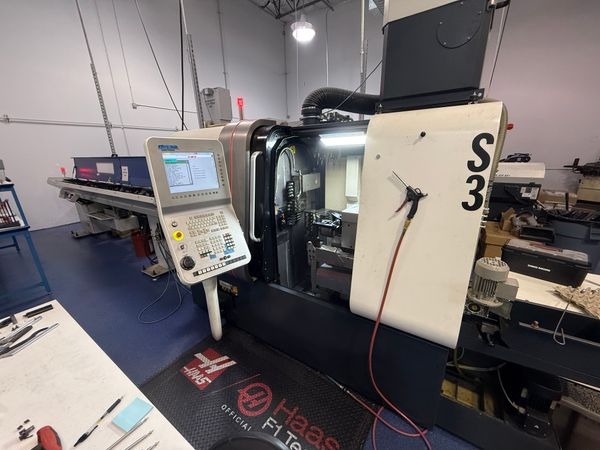

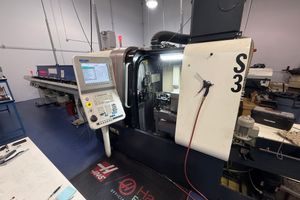

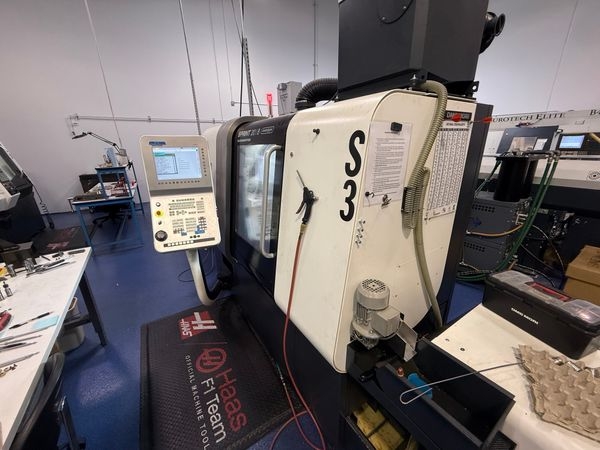

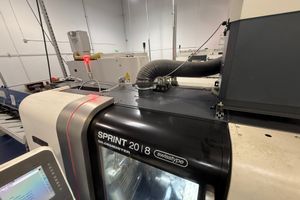

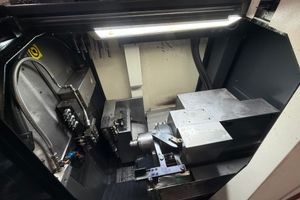

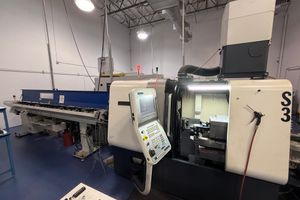

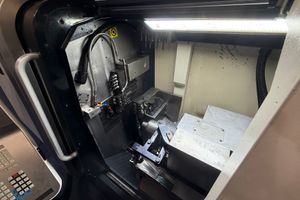

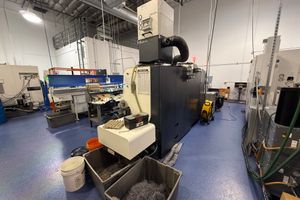

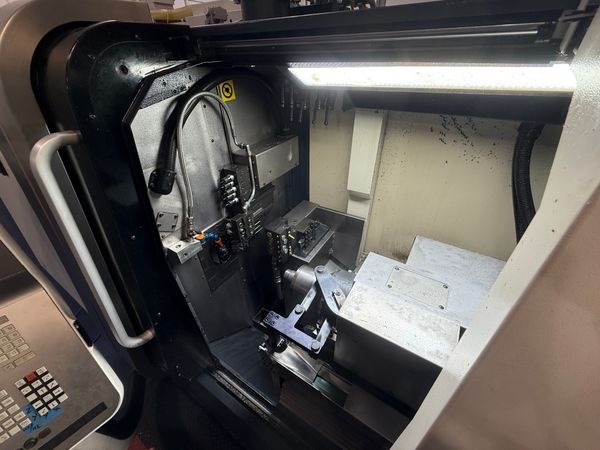

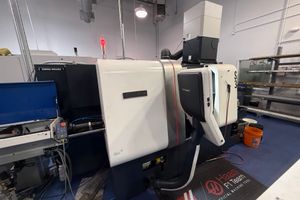

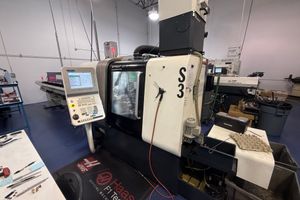

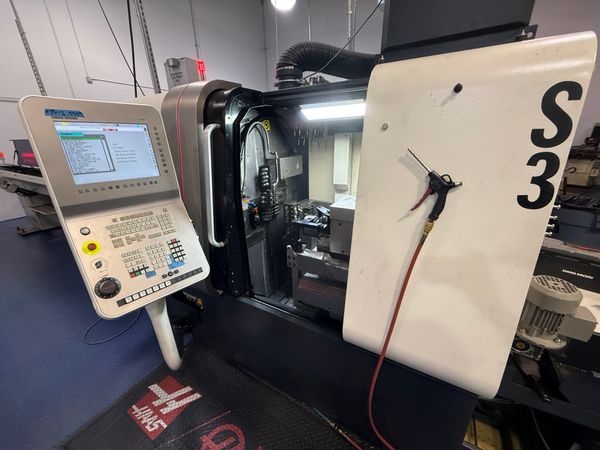

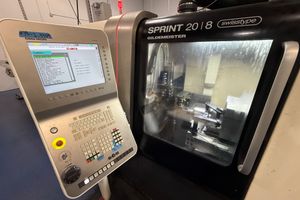

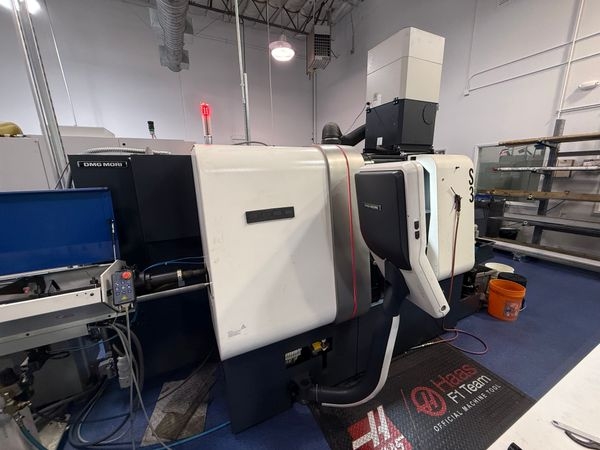

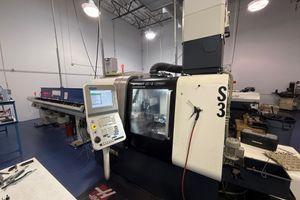

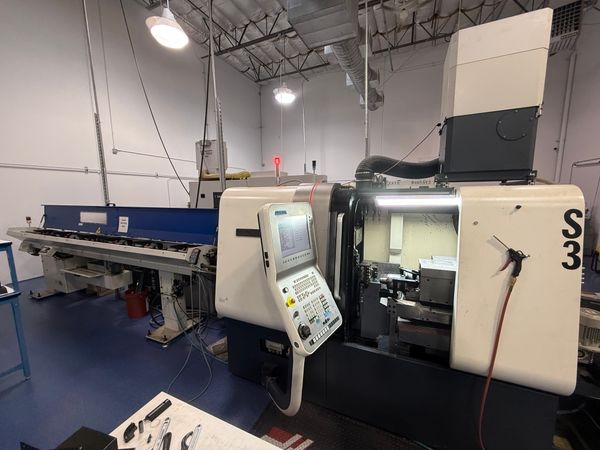

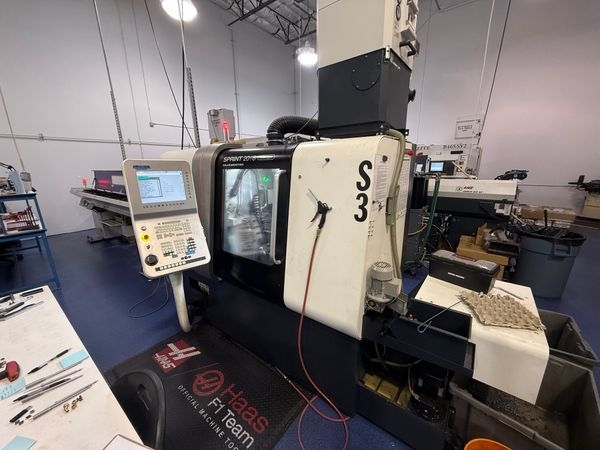

DMG MORI SEIKI SPRINT 20/8 LINEAR CNC Lathe

Bar Capacity: 0.78"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Number of Axes: 6+2

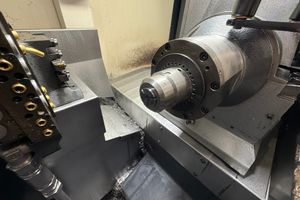

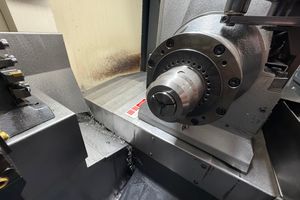

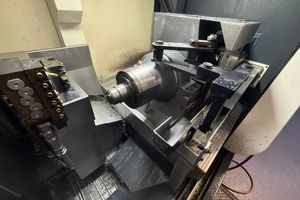

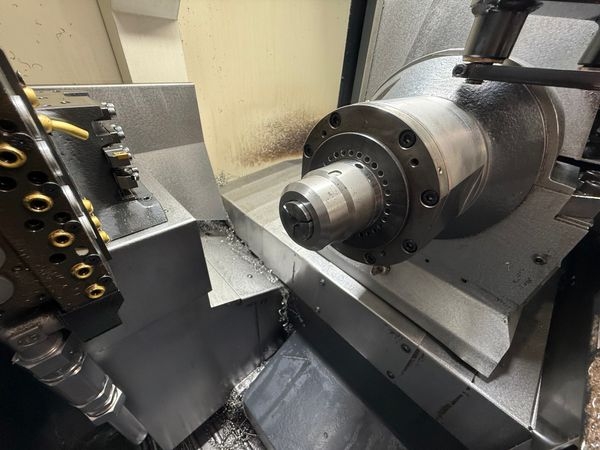

Main Spindle:
Z-1 Spindle Stroke: 3.1496"
Bar Capacity: .7874"
Spindle Speed: 10,000 RPM
Drive Power: 7.38/4.96 HP
Run Up Time (RPM/Sec): 5,000/0.6

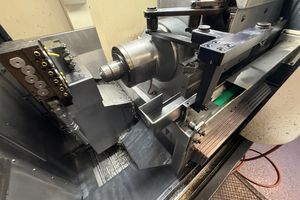

Sub-Spindle:
Bar Capacity: .7874"
Spindle Speed: 10,000 RPM
Drive Power: 7.38/4.96 HP
Run up Time (RPM/Sec): 5,000/0.6

Rapid Traverse Rate for Linear Axes: 1,574.8 IPM

Travels:
Tool Carrier 1 - X1 (Linear) / Y-1: 1.9685" - 13.7795"
Tool Carrier 2 - Y2: 4.72"
Sub-Spindle - X2 / Z2: 9.45" - 11.81"

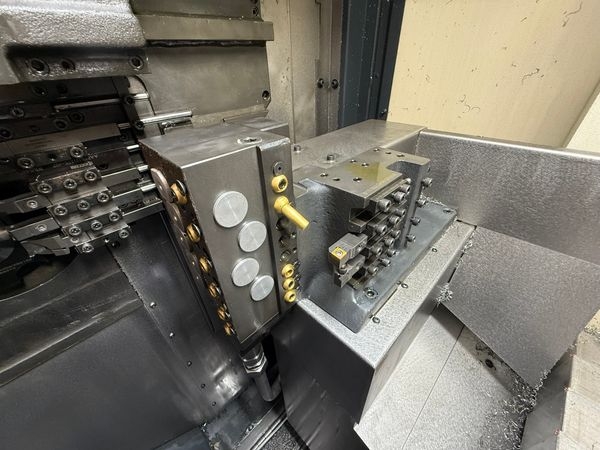

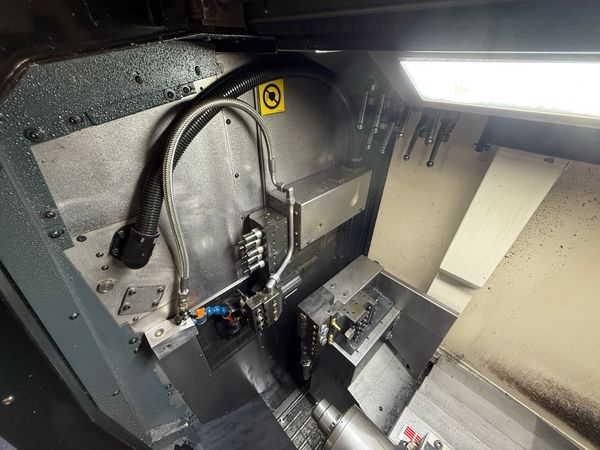

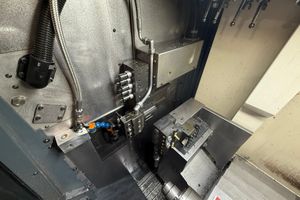

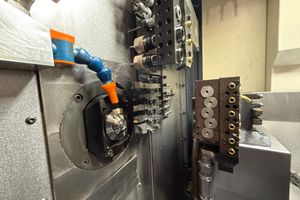

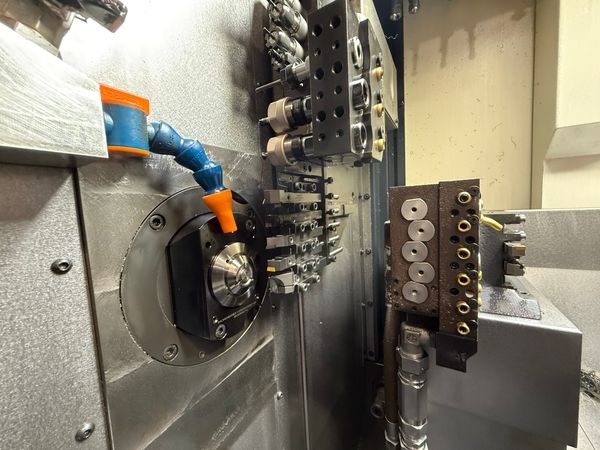

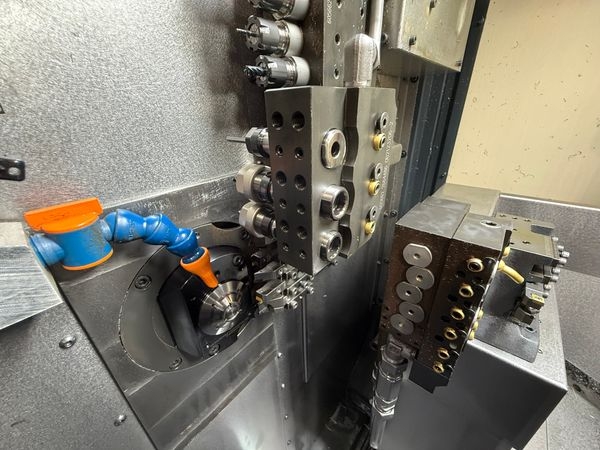

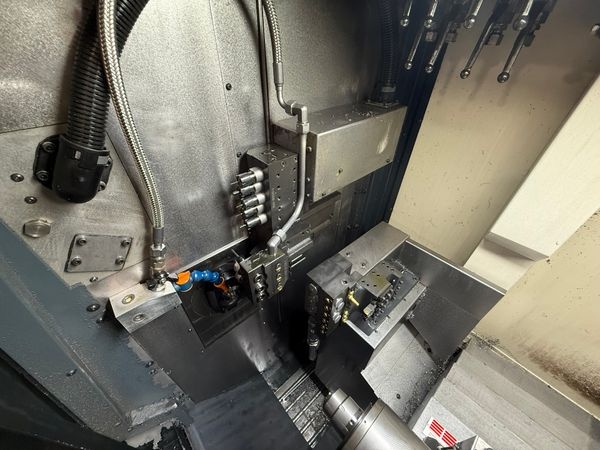

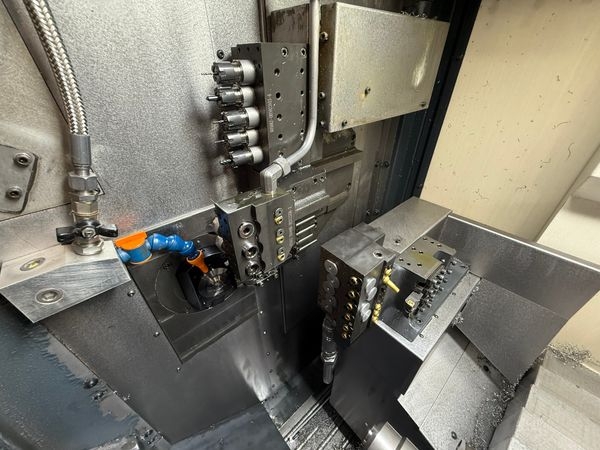

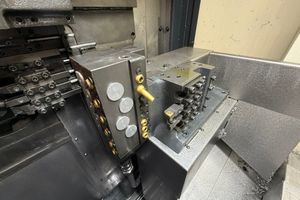

Tooling:
Carriage 1:
Fixed Turning Tool / Front Working Tool: 6/6

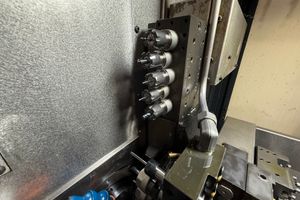

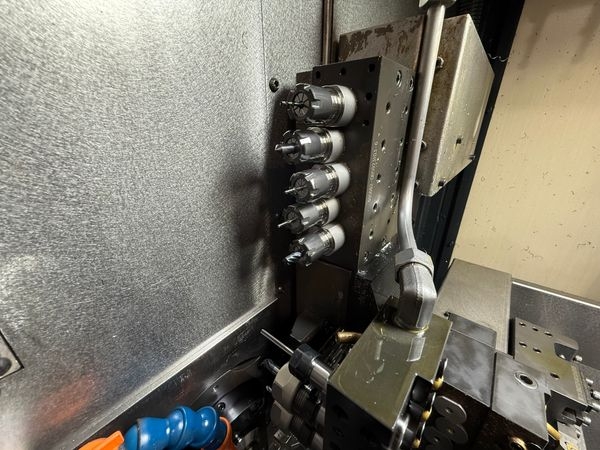

Driven Tools: 5
Speed: 6,000 RPM
Power: 1.743 HP

Carriage 2:
Fixed Turning Tool / Front Working Tool: 4/4
Driven Tools: 5
Speed: 6,000 RPM
Power: 1.743 HP
Dimensions: 191" x 58" x 92"

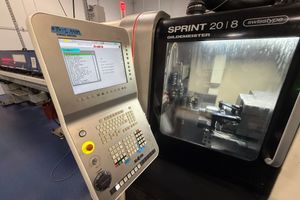

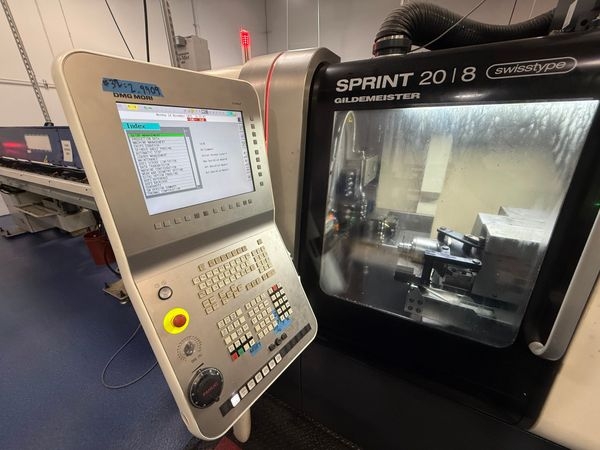

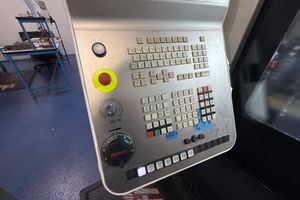

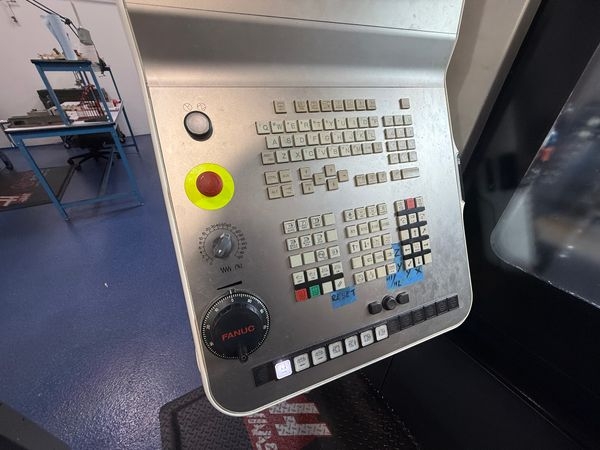

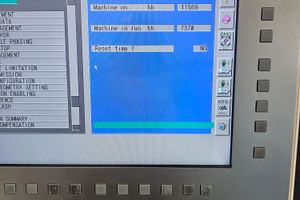

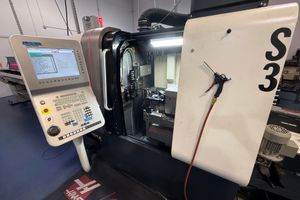

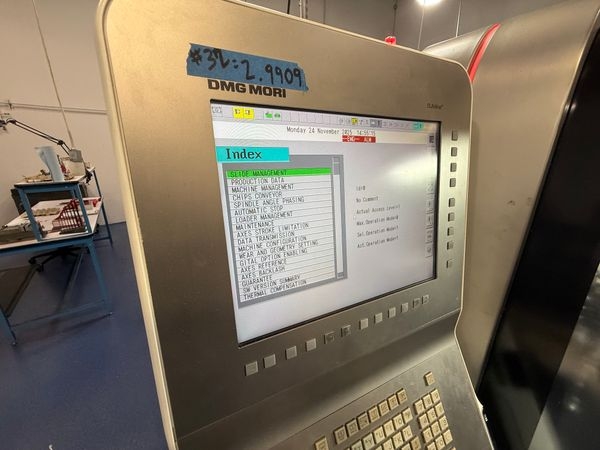

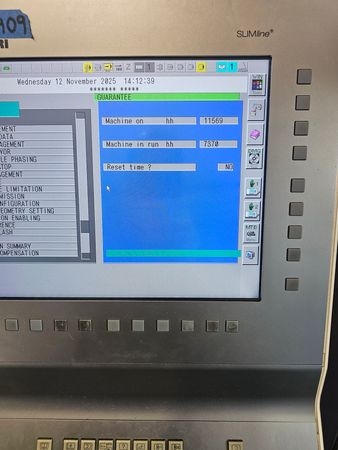

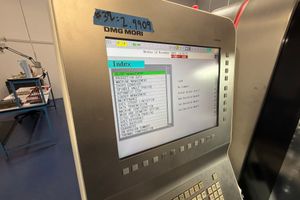

Fanuc 31i

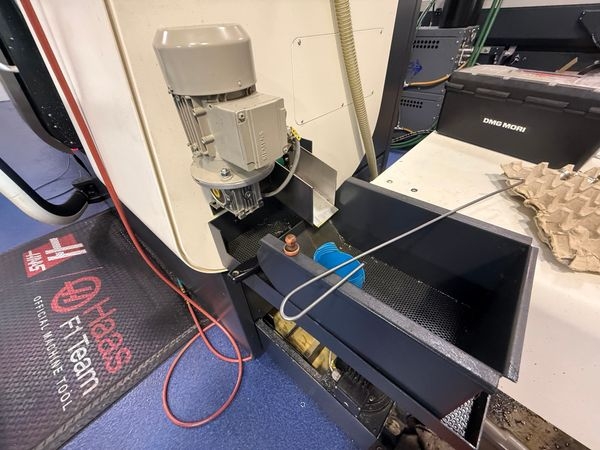

Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher

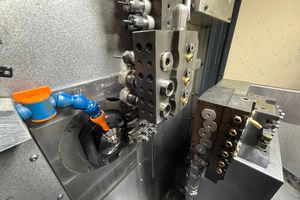

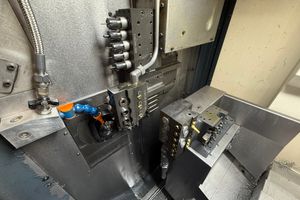

Live Tooling

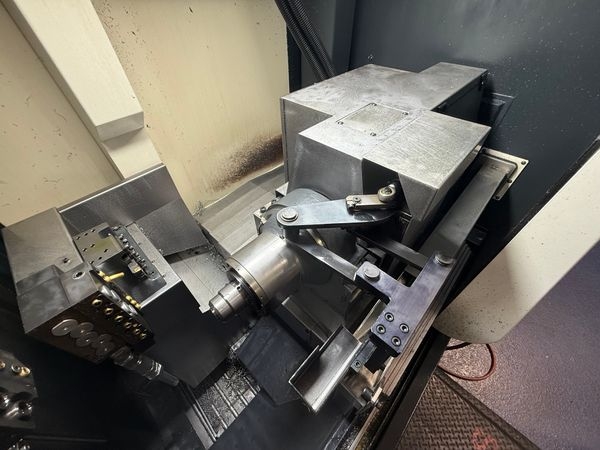

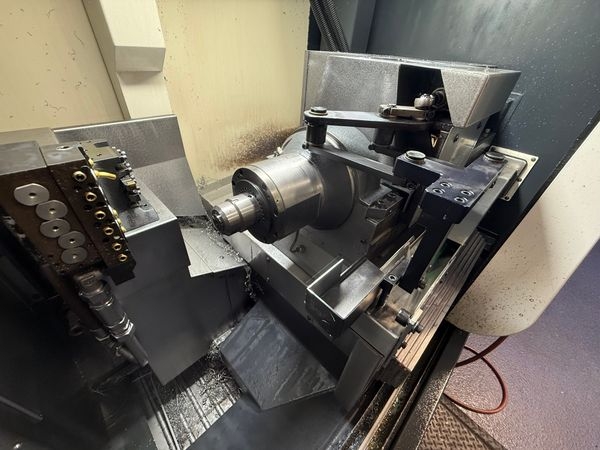

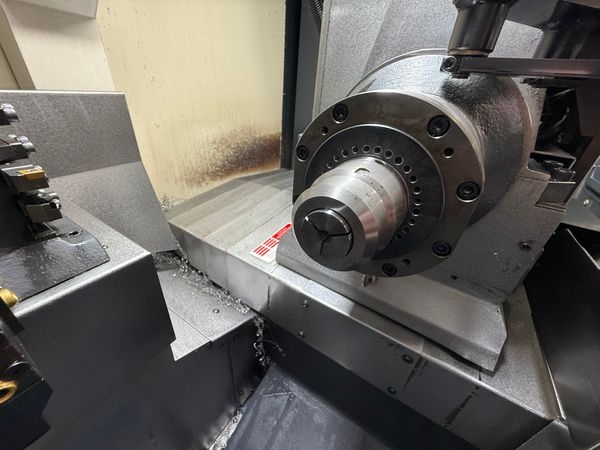

Sub Spindle
Y Axis
5 Axis

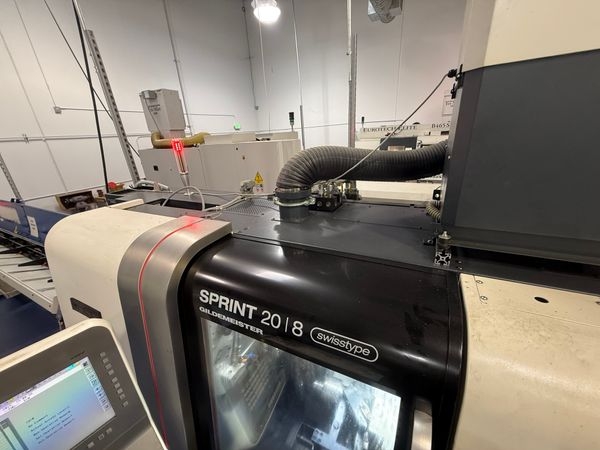

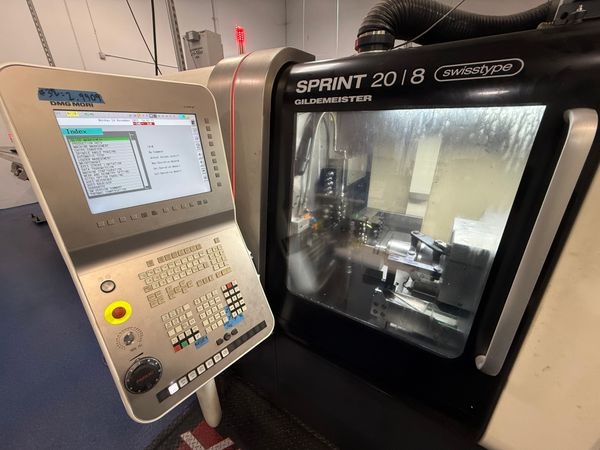

Fanuc 31i SPRINT 20/8 Linear
Changing Kit from Steady to Sliding Headstock
Counter Spindle Collet Cleaning
Motor Station for Rear Working Support
Guide Bush B227

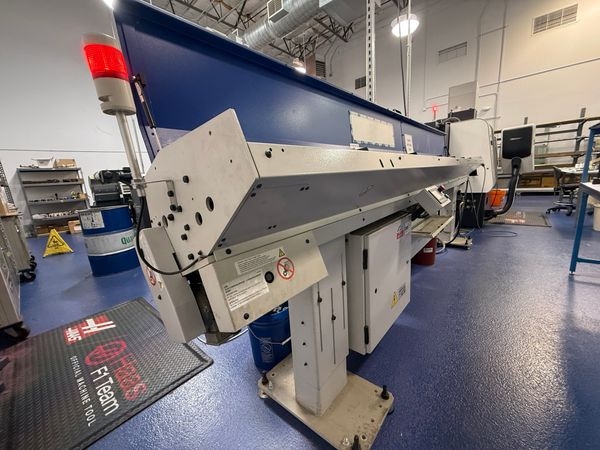

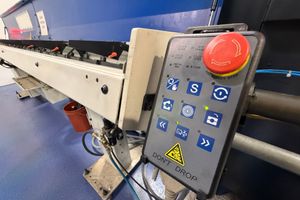

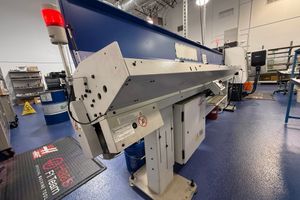

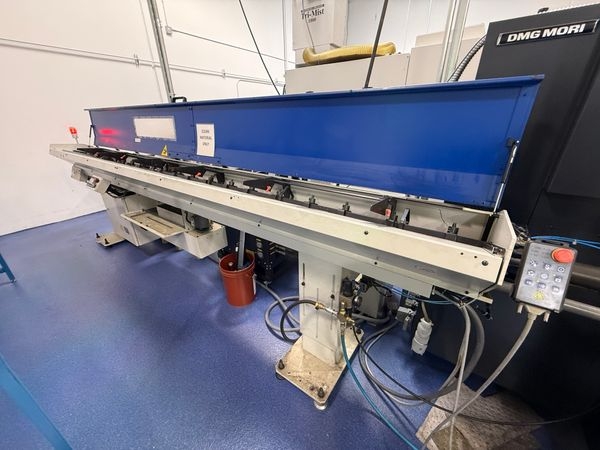

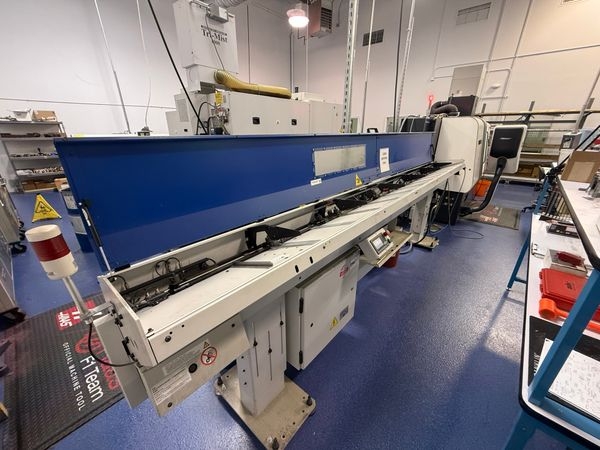

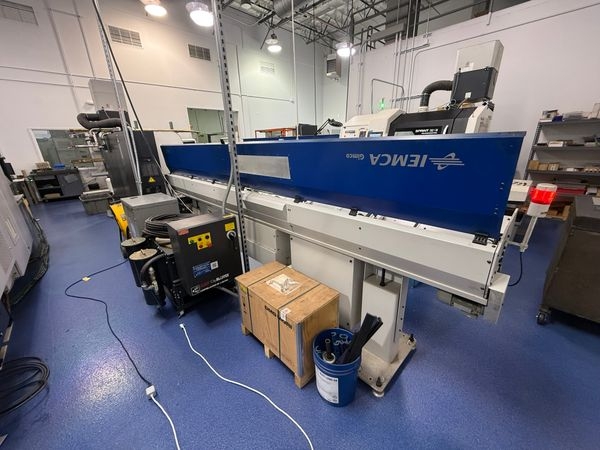

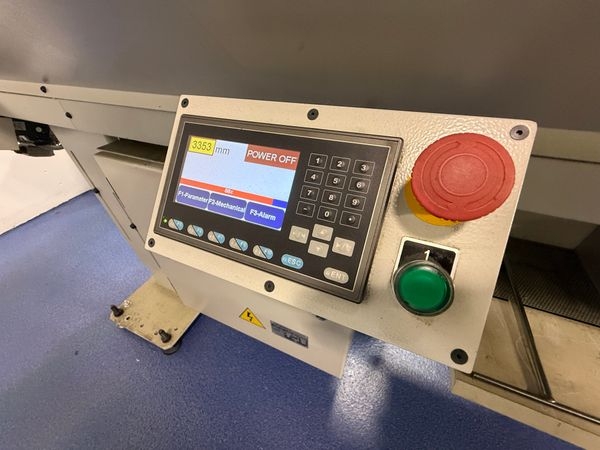

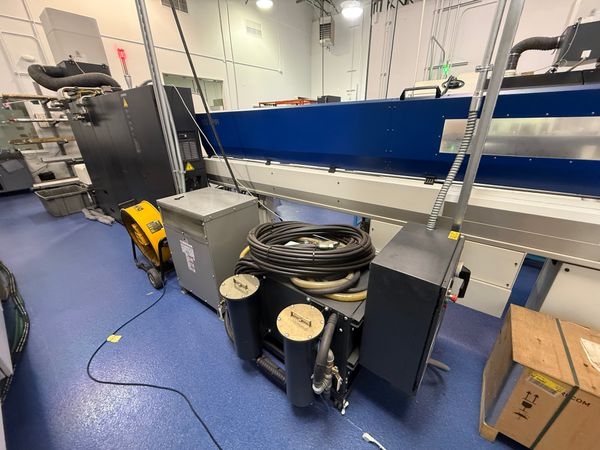

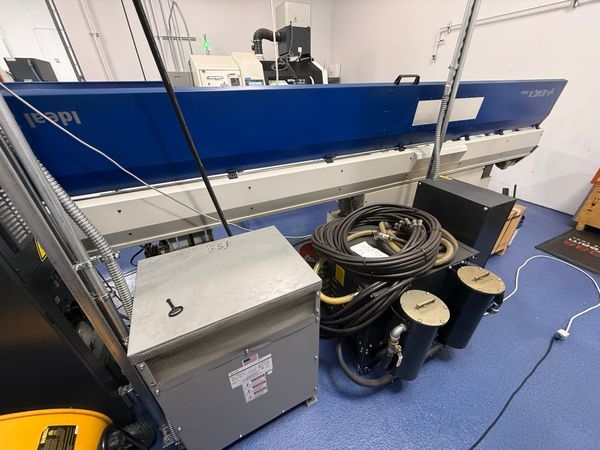

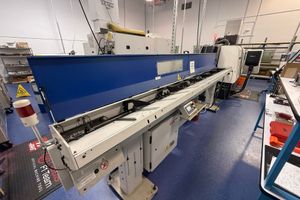

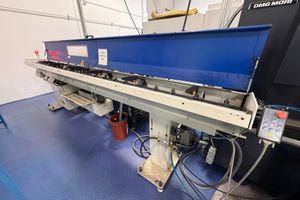

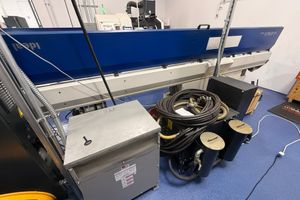

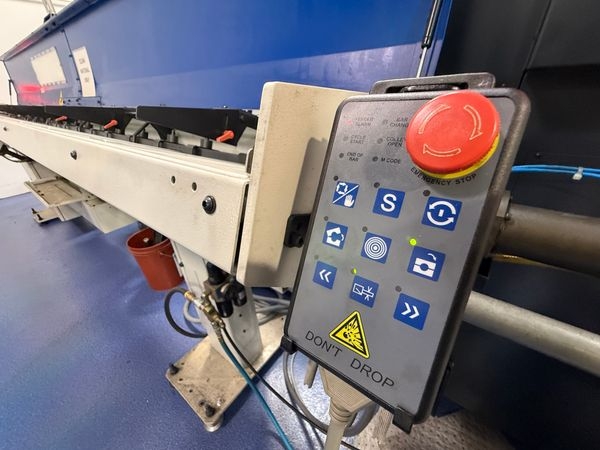

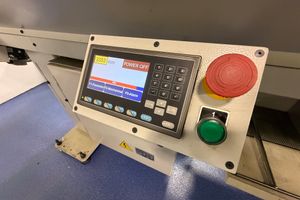

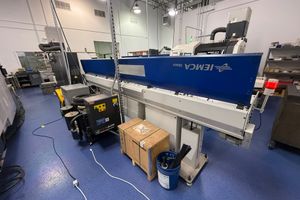

IEMCA Ideal 325 12' Bar Feeder
IEMA Additional Guide Channel
IEMCA Additional Collet

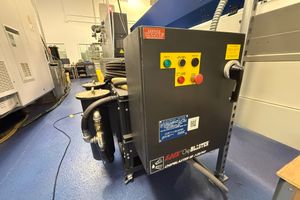

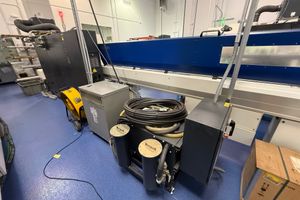

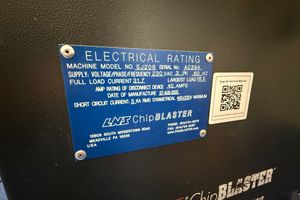

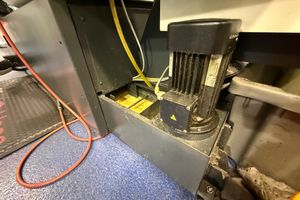

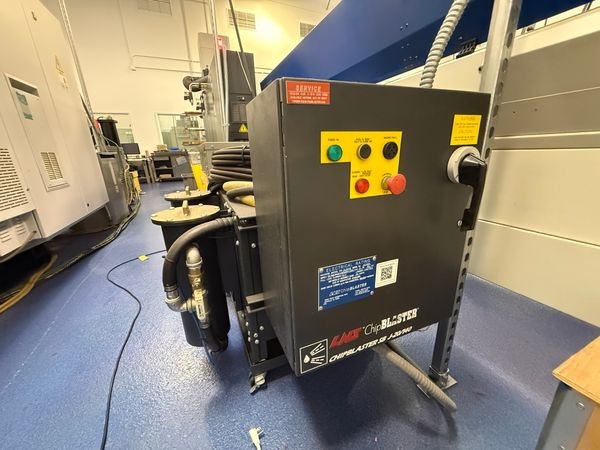

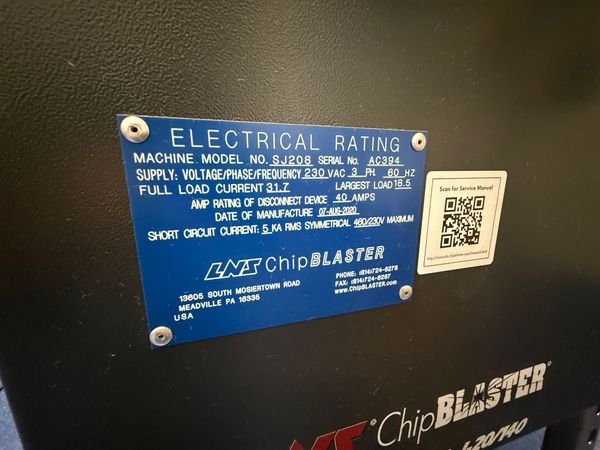

ChipBlaster SJ20-140-8 Swiss

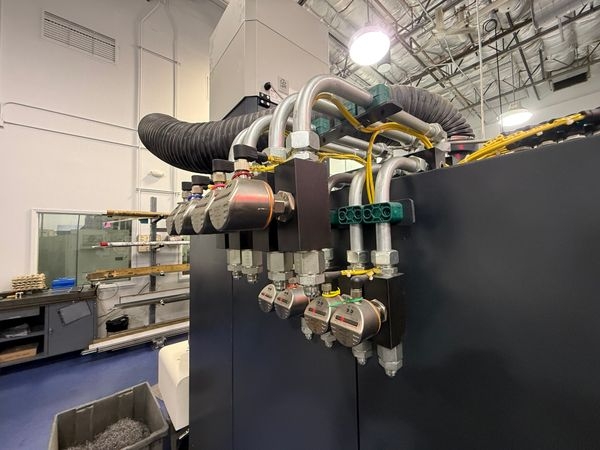

ChipBlaster Optional Sprint Internal Manifold

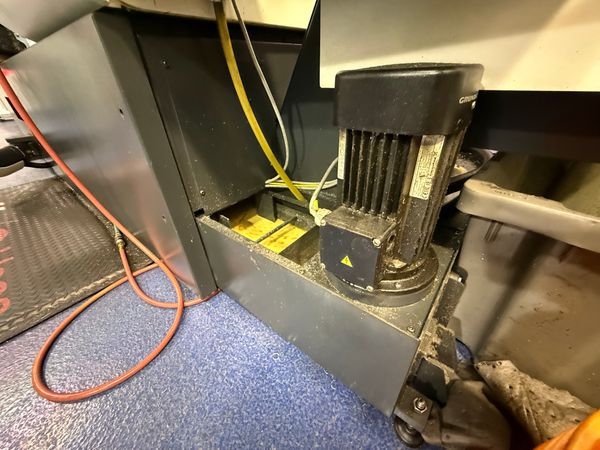

ChipBlaster Optional Transfer Pump for Cutting Oil

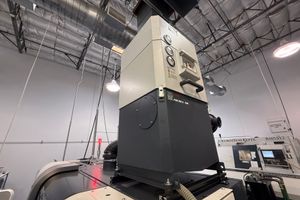

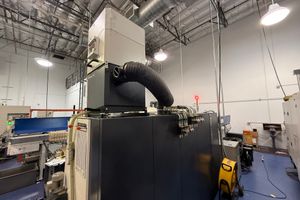

ChipBlaster WS2700 Hepa Filter Kit

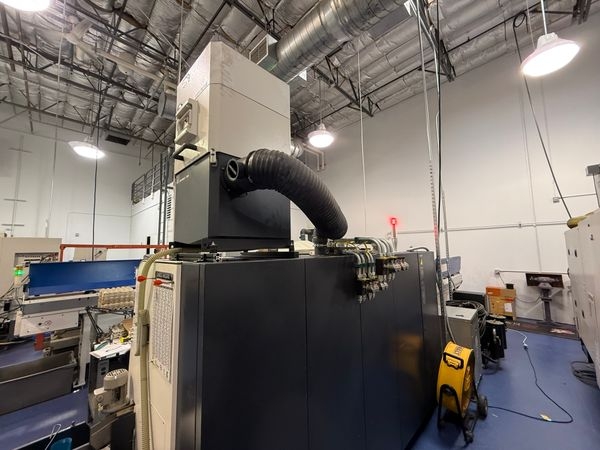

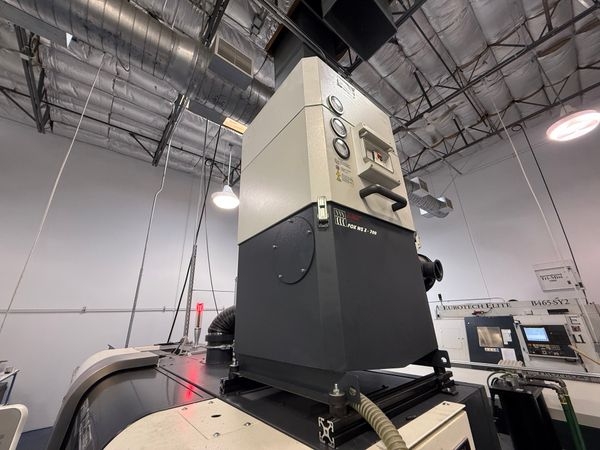

ChipBlaster WS2700 Mist Collection
