Machine Overview

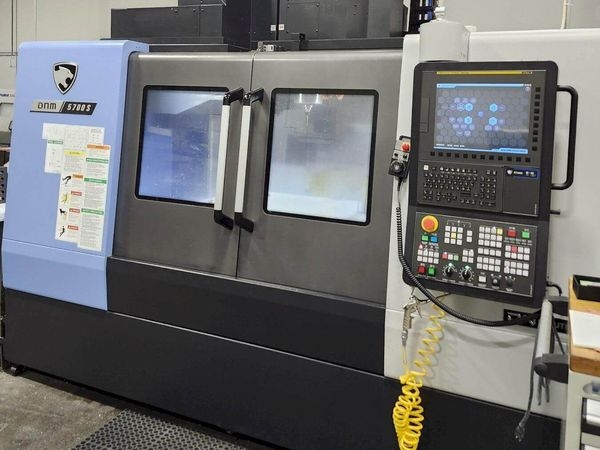

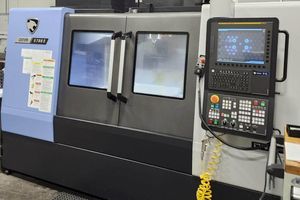

This 2023 DOOSAN DNM5700S is available with key features that enhance its functionality, offering options like a Chip Conveyor and Coolant Thru Spindle for improved operation efficiency.
The machine features a DN Solutions - Fanuc I Series CNC Control, which is robust and offers precision through its 3-axis capability. Its generous table size measures 51.2 x 22.4 inches, supporting a capacity of up to 2,205 pounds. This size caters to a wide range of project types and dimensions.
The travel ranges are optimally designed with X-axis at 41.3 inches, Y-axis at 22.4 inches, and Z-axis at 18.1 inches. The distance from spindle to table is adjustable between 5.9 and 24 inches (150 - 610 mm), which is suitable for projects requiring various depths and heights.
Rapid traverse rates are quite impressive with both X and Y axes moving at 1653 inches per minute and Z-axis at 1417 inches per minute. Coupled with a spindle speed of 15,000 RPM and a CAT 40 spindle taper, this machine handles intensive tasks smoothly. The main motor offers 15 HP and can reach torque up to 157.9 ft-lbs.
The tool changer capacity supports up to 40 tools, allowing for a continuous and uninterrupted workflow. It's essential for projects demanding frequent tool changes. The DOOSAN DNM5700S is equipped with high-pressure coolant through the spindle and features like rigid tapping, ensuring better performance and precision in complex tasks.
With machine hours at 1,537, it indicates the condition and remaining lifespan are favorable for future operations. The footprint measures 125 inches in length by 85 inches in front to back, with a height of 9 feet, apt for many workshop layouts. Weighing in at 14,500 pounds, its solid build is ideal for serious workspace demands.
Additional features include the DN Solutions Fanuc i Series Control Hand Wheel Pendant, Automatic Tool Changer, Spindle thermal displacement control with multiple sensors, Renishaw Probing, and Rigid Casting. These features combine to provide user-friendly operations and machine robustness. Manuals are included, offering support for setup and operational guidelines.
In summary, this 2023 DOOSAN DNM5700S presents itself as a versatile and well-equipped machine. It is poised to significantly contribute to productivity and precision in a range of machining environments, ensuring that varying demands and projects can be addressed efficiently and effectively.
