DOOSAN DNM750L-II AI Chat
Loading ...

Machine Overview

Specs:
X Axis Travel: 85"
Y Axis Travel: 30"
Z Axis Travel: 25.6"
Spindle Motor: 21 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Table Load: 3,968 LBS
Spindle Torque (30 min. rating) (122 ft-lbs)
Spindle Acceleration \ Deceleration time 12k - 0 (2.2 sec)
Table T - slot spacing x width (5) - 4.92" x .71"
Pull Stud 711-23
Max. Tool Dia. \ Adjacent pots are empty (3.15" \ 4.9")
Max. Tool Length (11.8")
Max. Tool Weight (17.6 lbs)
Cutting feed rate 1 - 12,000 mm/min (.04 - 472 ipm)
Voltage required - 205-235 Volts / 3 Phase
Coolant tank capacity 480 liters (127 gallons)
Lubrication tank capacity 4.3 liter (1.13 gallon)
Air Required (80 psi) * 8.83 cfm
Table Size: 85" x 29.9"
Dimensions: 137" x 193" x 125"
Weight: 26,000 LBS
Options:
Fanuc
Chip Conveyor
Coolant Thru Spindle
Chick Subplate
Quick Release System
LNS Chip Conveyor
Description:

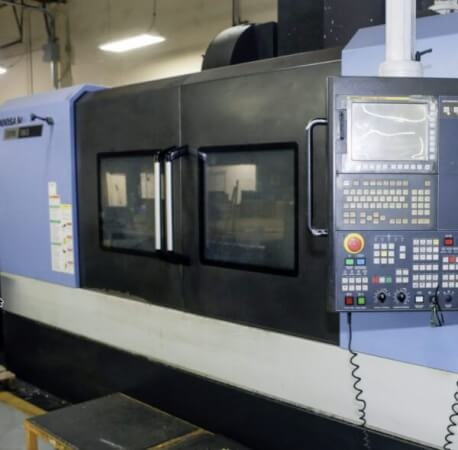

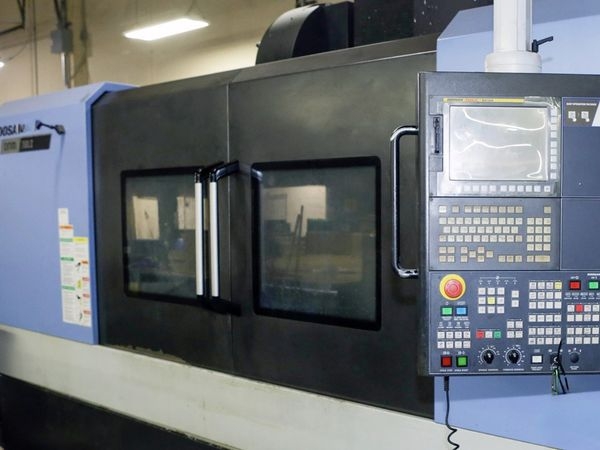

This 2018 DOOSAN DNM750L offers an opportunity to own a top-tier machining center at a great value. As a trusted name in the industry, DOOSAN is known for its advanced engineering, and this model is no exception. Crafted for high performance, it can handle various machining tasks with ease.

This machine features a robust framework and a spacious work area, making it suitable for large-scale projects. It comes equipped with a spindle that delivers impressive speed for a wide range of applications, ensuring precision in every task. The tool capacity allows for versatile operations, catering to multiple needs in a production setting.

With an intuitive control interface, operators will find this machine user-friendly. It simplifies complex operations and guides users through processes, making it accessible even to those new to the machinery. This model also supports various upgrades and enhancements, allowing users to tailor it to their specific needs.

The condition of the machine is well-preserved, reflecting responsible use and care throughout its service life. Key components have been thoroughly inspected to ensure they meet operational standards, providing peace of mind to its new owner. This unit promises to be a valuable asset to any workshop or manufacturing facility.

If you are seeking a machining center that provides substantial work output without compromise, this 2018 DOOSAN DNM750L stands prepared to meet your production demands. Explore this opportunity to introduce a proven performer into your operations, and consider making it a cornerstone of your workflow.
