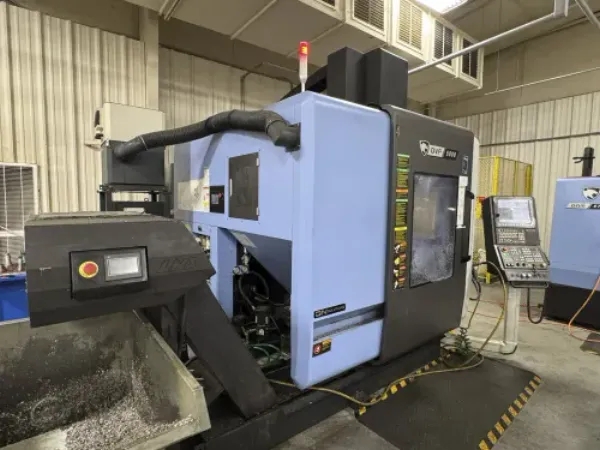

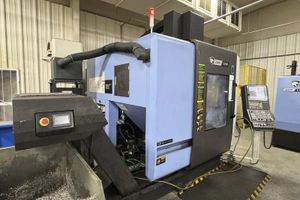

2022 DOOSAN DVF 5000

X Axis Travel: 24.6"
Y Axis Travel: 17.7"
Z Axis Travel: 15.7"
Spindle Motor: 42 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40
Tool Changer: 120 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Weight: 16,534 LBS
machine specification
Table Diameter 19.7 in
Max Workpiece Diameter ? 25.6 in
Max Workpiece Height ? 15.7 in
Max Table Load 440 lb
Main Spindle Horse Power 30hp
Main Spindle Speeds 18,000 RPM
Main Spindle Taper CAT 40 Big Plus
X - Axis Travel 25.6"
Y - Axis Travel 17.7"
Z - Axis Travel 15.7"
B - Axis Travel -30 to +110
C-Axis 360,000 degree
Rapid Traverse Rate - X 1,574 in/min
Rapid Traverse Rate - Y 1,574 in/min
Rapid Traverse Rate - Z 1,574 in/min
AUTOMATIC TOOL CHANGER 60
Tool Length 11.8"
Tool Weight 17.6 lb
Machine Weight 16,535 lb
Option / equipped with
Fanuc 31i Series B5 Control
Full simultaneous 5-axis
18000 Spindle RPM
60 Tool Capacity
Chip Conveyor
Spindle Chiller
1000 PSI Coolant Thru Spindle
Mist Collector
Renishaw Probe
Tool Presetter

Probe
Chip Conveyor
Coolant Thru Spindle
5 Axis
60 Tool Capacity
