Machine Overview

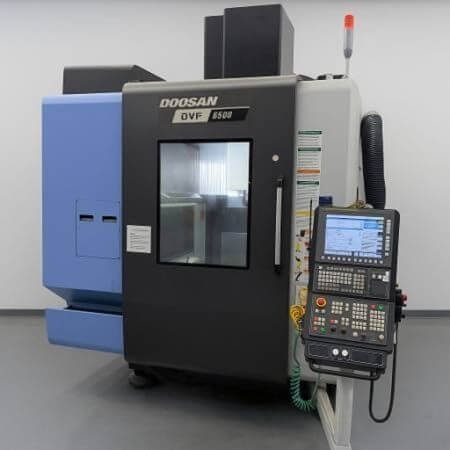

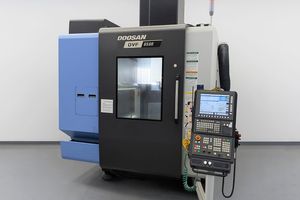

This 2022 DOOSAN DVF6500 is a standout machine for those seeking advanced machining capabilities. With only 933 hours of cutting time, it offers a well-maintained and ready-for-use experience. Please note that all specifications are approximations and are subject to verification, as the unit comes exactly as shown in the images. Feel free to give us a call if you have any questions before purchasing, as all sales are final.
The DOOSAN DVF6500 is equipped with the Fanuc 31i Model B5 Series CNC Control, offering 5-axis simultaneous machining. This feature allows for complex machining operations with precision. The machine includes a 25.6-inch trunnion table, which is capable of handling parts with a maximum diameter of 33.0 inches and a maximum height of 19.7 inches.
For those who prioritize speed, the machine's spindle can reach up to 18,000 RPM, driven by a 30 HP motor with a CAT-40 Big Plus spindle taper. The 60-station automatic tool changer ensures rapid tool swaps, with a capacity to handle tools up to 4.9 inches in diameter.
Among its features, the machine comes with a Renishaw RMP600 Probing System, which includes the probe, enhancing its capability for precise measurements and adjustments. It also features spindle orientation, helical interpolation, rigid tapping, and a highly effective coolant system with multiple flushing nozzles.
Further adding to its value, the machine includes a spindle oil chiller and air through spindle, providing essential cooling for extended operations. The coolant chiller and an Osung Type OHN-009D chip conveyor help keep the workspace clean and efficient, while the extra Hydtec hydraulic power unit is included for additional support.
The machine's table offers a travel of 29.5 inches on the X-axis, 30.9 inches on the Y-axis, and 23.6 inches on the Z-axis. The rapid feed rates for the X, Y, and Z axes are 1771.6 inches per minute, while the B and C axes can operate at 25/50 RPM, ensuring quick movement and setup times.
If you're interested in more detailed information or specifications, please call or message us. We're here to help answer any questions you may have and to ensure this machine meets your needs.
