Machine Overview

Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.1"
Z Axis Travel: 23.6"
Turret Tools: 12 Station
Max Turning Dia: 11"
Max Turning Length: 20.3"
Max Swing: 23.6"
Swing Over Cross Slide: 17.7"
Main Spindle Nose: A2-6
Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Motor Power: 7.4 HP
Sub-Spindle Bore: 1.5"
Sub-Spindle Nose: A2-5
Tool Size (OD/ID): 1" / 1.5"
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor Power: 5 HP
C-Axis Resolution: 0.001°
X-Axis: 46.5"/sec
Z-Axis: 46.5"/sec
Bar Feeder Dimensions: 45” W x 76" L x 49" High Bar Feeder Weight: 1200 LBS
Weight: 7,500 LBS
Options:
Fanuc i Series
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Description:

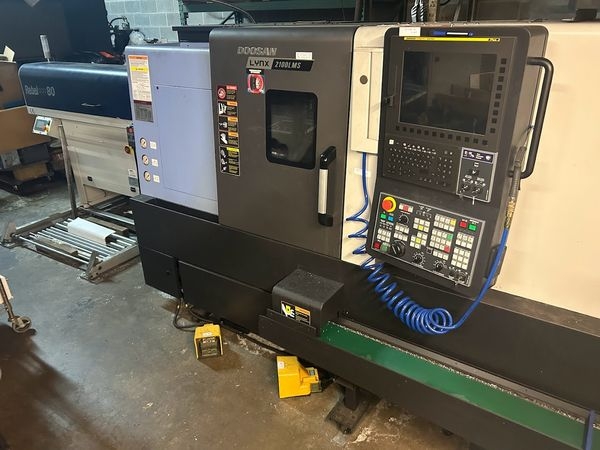

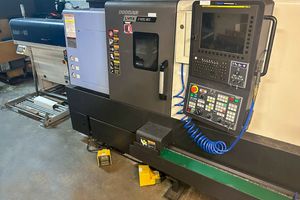

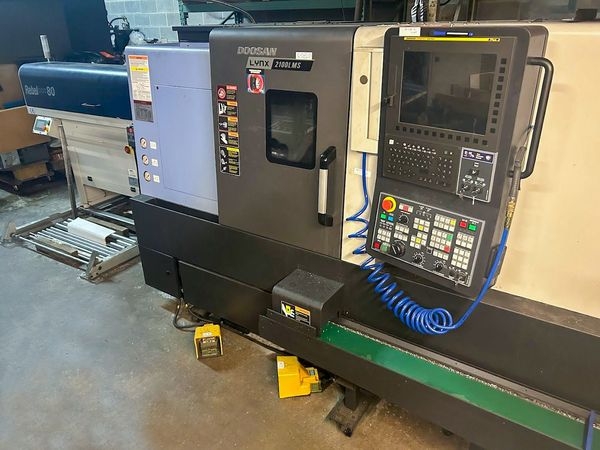

This 2020 DOOSAN LYNX 2100LMSB CNC Lathe is a noteworthy addition to any shop seeking enhanced functionality in their machining processes. It comes equipped with a Fanuc i Series CNC Control that offers simplified operation and increased accuracy.

The lathe includes several valuable options and upgrades that improve its overall utility. Among these, the Tool Presetter plays a crucial role in ensuring quick and accurate tool setup, reducing downtime significantly.

Incorporated with a Bar Feeder, this lathe allows for seamless automatic feeding of workpieces, ideal for high-volume production tasks. The Parts Catcher ensures collected finished parts are handled properly, contributing to an organized work environment.

For more complex tasks, the inclusion of Live Tooling is a significant upgrade. It enables the machine to perform multiple operations simultaneously, speeding up production cycles and providing versatility in machining.

The Sub Spindle feature offers additional machining capabilities by allowing workpieces to be rotated and worked on from different angles in a single setup. This feature broadens the range of potential projects that can be handled with this lathe.

This machine represents an invaluable choice for those looking to enhance productivity. It promises to handle diverse machining tasks, offering flexibility and ease of use with its robust set of features.
