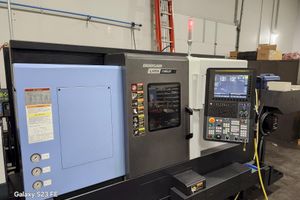

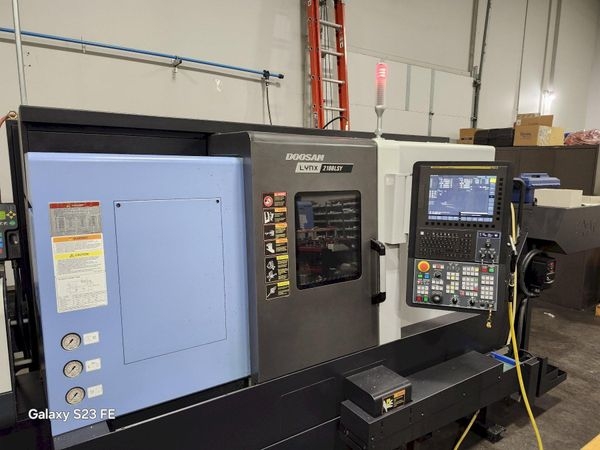

2022 DOOSAN LYNX 2100LSYA

ID:14197
Brand:DOOSAN
Model: LYNX 2100LSYA
Year:2022
Category:CNC Lathe
Location:Minnesota

Located In Minnesota

SHIPPING COST :

Hello!

Loading ...

Machine Overview

Specs:

Description: DN Solutions (Doosan) Lynx 2100LSYA CNC Lathe, Live Tooling, Doosan-Fanuc i Series Control, LNS Alpha Series BF, 20 HP, New 2022

CNC Control: Doosan Fanuc i-Series Control
Travel Distance X-axis: 205 mm (8.1 in)
Travel Distance Y-axis: 105±52.5 mm (4.1±2.1 in)
Travel Distance Z-axis: 560 mm (22 in)
Travel Distance B-axis: 560 mm (22 in)
C - Axis Indexing: Full C
Rapid Traverse X-axis: 30 m/min (1181 in/min)
Rapid Traverse Y-axis: 10 m/min (394 in/min)
Rapid Traverse Z-axis: 36 m/min (1417 in/min)
Main Spindle: yes
Spindle Speed: 6000 rpm
HP Power: 15 kW (20 Hp)
Chuck Size: 6 in
Turret Stations: 12
MAX TURNING DIAMETER: ?300 mm (11.8 in)
Max Turning Length: 510 mm (20.1 in)
Through Hole Diameter: ?61 mm (2.4 in)
Sub Spindle: yes
Sub Chuck Size: 5 in
Sub-Spindle Speed Range: 6000 rpm
Sub Spindle Motor: 5.5 kW (7.5 Hp)
Turret Live Tooling Torque: 46 Nm (34 ft-lbs) Tooling (Milling)
Rotary Tool Speed: 6000 rpm
ROTARY TOOL POWER: 3.7 kW (5 Hp)
Rotary Tool Torque: 24 Nm (17.3 ft-lbs)
Machine Cutting Hours: 3118
Machine Dimensions - L x W x Ht.: 2880 mm (113.4 in.) x 1710 mm (67.5 in.) x 1920 mm (76 in.)
Machine Weight: 4150 kg (9150 lbs.)

Doosan - Fanuc i Series Control
Tool Presetter
Multiple Live - Radial/Axial Toolholders
Sub Spindle
Collet Chuck - Main and Sub Spindle
Work Light
Chip Conveyor
Part Pick-Off
Part Conveyor
Coolant System
LNS Alpha SL65-S Magazine Barfeeder
Manuals

Options:

Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Sub Spindle
Y Axis
5 Axis

Description:

Pre-owned DOOSAN LYNX 2100LSYA 2022 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Minnesota. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this LYNX 2100LSYA before it's gone.
