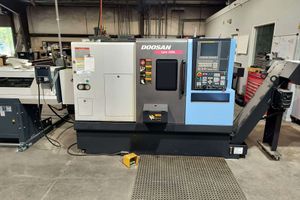

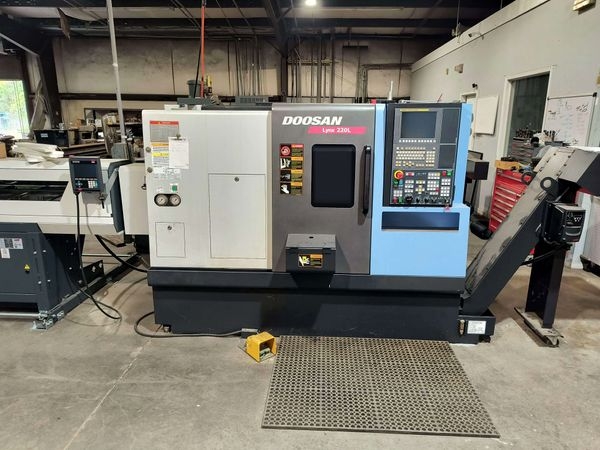

2015 DOOSAN LYNX 220LC

ID:13979
Brand:DOOSAN
Model: LYNX 220LC
Year:2015
Category:CNC Lathe
Location:South Carolina

Located In South Carolina

SHIPPING COST :

Hello!

Loading ...

Machine Overview

Specs:

Features:
Fanuc i Series CNC Control
6,122 Hours Cutting Time
3.0? Big Bore, Long Bed Lathe
Collet Chuck (Capable 8? Chuck)
12 Station Turret
RS-232 Port
Coolant System

Capacity:
Max Turning Diameter : 12.6?
Max Swing Over Bed : 20.1?
Max Swing Over Saddle : 11.4?
Max Turning Length: 20.7?
Max Bar Capacity : 2.55?
Distance Between Center: 24?

Travels:
X Axis Travel : 6.9?
Z1 Axis Travel : 21.7?
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0?
Spindle Speed: 4000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.11 Second
Tool Holders Type: BMT

Tailstock:
Tailstock Body Travel: 13?
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6?
Tailstock Quill Travel: 3.1?

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 23.68 kva
Machine Dimensions: 93? x 63? x 65? High
Machine Weight: 7,716 lbs Approx.

Options:

Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis

Description:

Pre-owned DOOSAN LYNX 220L 2015 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in South Carolina. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this LYNX 220L before it's gone.
