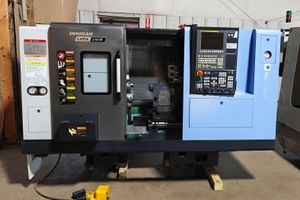

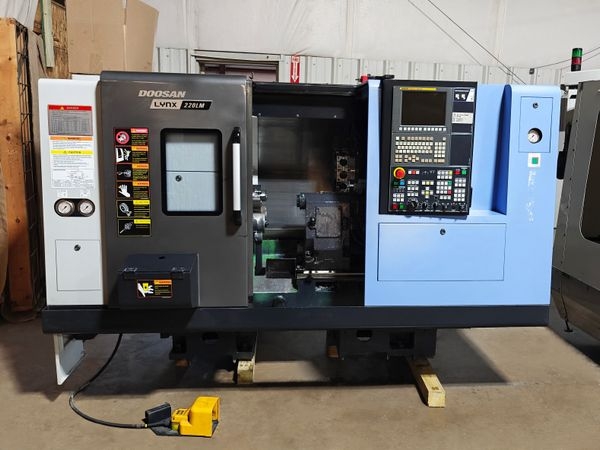

2015 DOOSAN LYNX 220LMA

ID:13971
Brand:DOOSAN
Model: LYNX 220LMA
Year:2015
Category:CNC Lathe
Location:Missouri

Located In Missouri

SHIPPING COST :

Hello!

Loading ...

Machine Overview

Specs:

6264 cutting hours on this machine.

Manufacturer Doosan
Model Lynx 220 LMA

Year 2015

Model Lynx 220 LMA
Swing Over Bed (in) 20.1
Swing Over Saddle (in) 11.4
Max. Turning Dia. (in) 9.8
Max Turning Length (in) 20.1
Spindle Bore / Bar Working Dia. (in) 2.4 / 2
X-Axis Travel (in) 6.9
Z-Axis Travel (in) 21.7
Max. Spindle Speed (rpm) 6,000
Spindle Nose A2#5
Rotary Tool 12 Position
Min. Spindle Indexing Angle (C-Axis) 0.001 Degree Turret
Tailstock Quill (rpm) 6,000
Tailstock Quill Diameter (in) 2.6
Tailstock Quill Travel (in) 3.1
Main Spindle Motor (hp) 20
Rotary Tool Spindle Motor (hp) 5
Approx. Machine Dimensions (in) 103.5L x 63W x 65.2H
Approx. Machine Weight (lbs) 7,300

Options:

Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis

Description:

Pre-owned DOOSAN LYNX 220LMA 2015 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Missouri. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this LYNX 220LMA before it's gone.
