Home / CNC Lathe / DOOSAN / LYNX 300 / 13149
Posted By JuddS477
BUY NOW
us-flag
Located In Texas
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 10"
Z Axis Travel: 31.1"
Turret Tools: 12 Station
Max Turning Dia: 17.7"
Max Turning Length: 30.1"
Max Swing: 25.6"
Dimensions: 118" x 70" x 67.5"
Weight: 8,930 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Description:

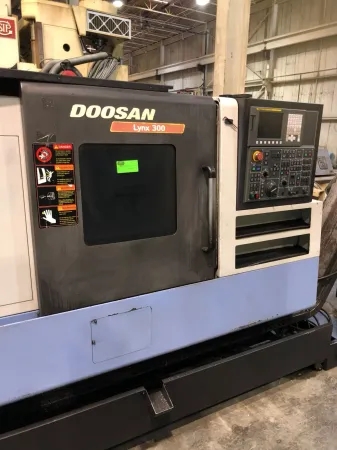

This 2011 DOOSAN LYNX 300 CNC Lathe is a used machine that comes with several valuable options and upgrades, including a Chip Conveyor, Tool Presetter, and Tailstock. These features enhance its capability to handle a variety of machining tasks with greater ease.

We bought this CNC Lathe new and primarily used it for machining aluminum and 12L14 soft materials. It was running well when we took it out of service. One component we did not use is the live center, not due to any issues, but simply because it was not required in our operations. The machine is currently stored and is not under power at the moment.

The decision to remove it from operation was based on a pending sale that ultimately did not go through, leaving the lathe available for a new owner. While it shows some signs of use, such as being a bit oily and dirty, functionality remains intact. For those interested, we can provide a video showcasing the machine in operation, available upon request via email.
