Seller Needs:
$137,000|
1074
|
3

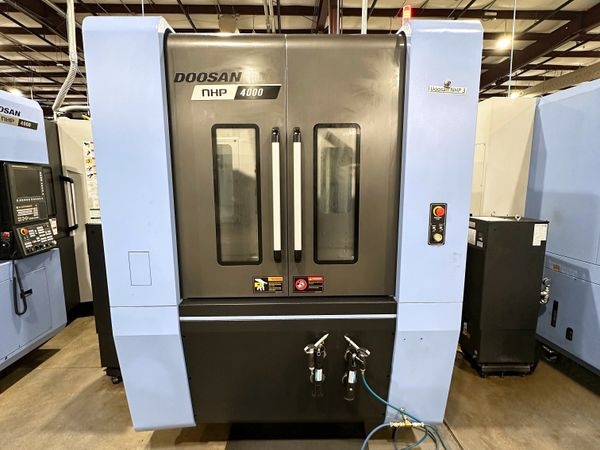

Pre-owned DOOSAN NHP4000 2021 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc 31iB control. This CNC Machine is currently located in Florida. This DOOSAN Hor...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 22"
Y Axis Travel: 25.2"
Z Axis Travel: 26"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Pallet Load: 882 LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 40 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Spindle Torque: 170 ft-lb
Power Transmission Type: Integral
Maximum Workpiece Size: 24.8" x 35.4"
Cutting Feedrate: 0 - 60,000 mm/mi
Pallet Size: 15.7" x 15.7"
Dimensions: 195" x 106" x 91"
Weight: 21,385 LBS
Y Axis Travel: 25.2"
Z Axis Travel: 26"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Pallet Load: 882 LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 40 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Spindle Torque: 170 ft-lb
Power Transmission Type: Integral
Maximum Workpiece Size: 24.8" x 35.4"
Cutting Feedrate: 0 - 60,000 mm/mi
Pallet Size: 15.7" x 15.7"
Dimensions: 195" x 106" x 91"
Weight: 21,385 LBS
Options:
Fanuc 31iB
Chip Conveyor
Probe
Coolant Thru Spindle
Programmable Coolant
360,000 Full 4th
MP High Pressure Coolant
Renishaw RTA-AA Tool Setter
BK Mikro Broken Tool Detection
Chip Conveyor
Probe
Coolant Thru Spindle
Programmable Coolant
360,000 Full 4th
MP High Pressure Coolant
Renishaw RTA-AA Tool Setter
BK Mikro Broken Tool Detection
Seller:
JoeR275
Location:
FL
