Machine Overview

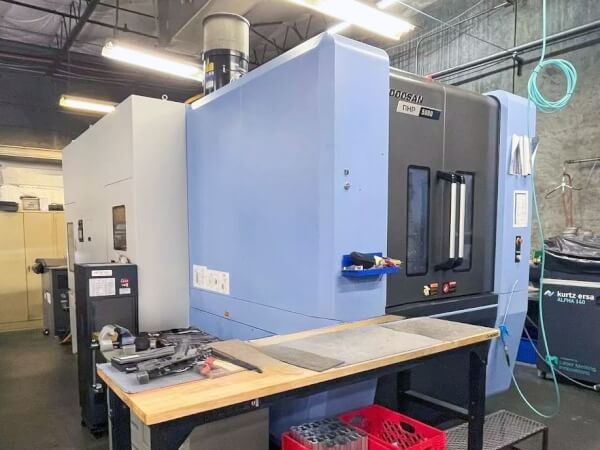

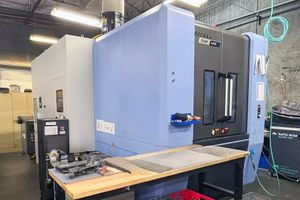

This 2021 DOOSAN NHP5000 is a high-performance machine tool with impressive capabilities for complex machining tasks. It is built to support demanding production needs with precision and speed.
The machine features a 19.7-inch (500 mm) pallet size, optimizing the workspace for versatile applications. Its travel distances include an X-Axis and Y-Axis of 28.7 inches each, while the Z-Axis extends to 34.6 inches, providing ample room for various machining operations.
The DOOSAN NHP5000 is equipped with a spindle that can reach a maximum speed of 15,000 RPM. The spindle’s CAT 40 BP taper and a 40 HP motor ensure robust performance across a wide range of materials. It comes with two pallets, facilitating continuous operation by reducing downtime during setup changes.
In terms of physical presence, the machine measures 214x105x113 inches and weighs 25,353 lbs, confirming its sturdy construction designed for stability during operations. It incorporates the Fanuc 3-1i B5 Control, which is known for its user-friendly interface and advanced programming capability.
The machine includes a Full 4th Axis and Renishaw Probing System, enhancing its versatility for multi-axis machining operations and precision measurement tasks. The Through Spindle Coolant allows for efficient cooling during high-speed processes, increasing tool life and workpiece quality.
An LNS Chip Conveyor is included to streamline the removal of chips, thus maintaining a clean work environment. Three tombstones are also part of the setup, offering solid workholding solutions for batch production and repeatability.
This DOOSAN NHP5000 is an all-encompassing solution that meets a variety of machining needs, suitable for shops looking to expand their capabilities with a robust and feature-rich horizontal machining center.
