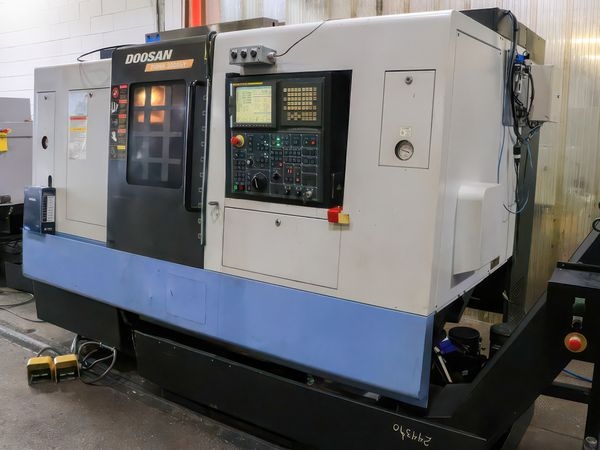

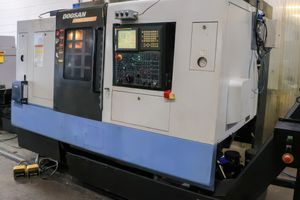

2008 DOOSAN PUMA 2000SY

Swing over bed: 23.6"
Swing over carriage: 21.6"
Maximum bar capacity: 2.625”
Maximum turning diameter, main: 13.0"
Distance between spindle face: main / sub: 33.8”

MAIN SPINDLE:
Spindle speed: 45 - 5,000 RPM
Spindle nose: ASA-A2-6
Draw tube I.D.: 2.67"
Spindle bore diameter: 2.99"
Spindle motor: 20 HP
Maximum spindle torque: 351 ft-lbs

MAIN SPINDLE C-AXIS:
Minimum programmable angle: .001 Deg.
Rapid traverse rate: 200 RPM
C-axis repeatability: +/- .006 deg.
C-axis positioning accuracy: .0167 deg.

Y-AXIS:
Y-axis travel: 3.94”
Y-axis rapid traverse rate : 295 IPM
Y-axis repeatability: .00012”

Bed. Saddle & Cross Slide

X axis travel: 9.8”
Z axis travel: 22.8”
Angle of slant bed: 30 degrees
X axis rapid traverse rate: 790 IPM
Z axis rapid traverse rate: 945 IPM
X, Z axis ball screw diameter: 1.3"

TURRET:
Number of tool stations: 12
Tool holder type: BMT 55
Turning tool shank size: 1"
Boring bar diameter, main spindle: 1.5"
Boring bar diameter, sub spindle: 1”
Tool selection: Bi-directional

ROTATING TOOLS:
Rotating tool RPM: 50 - 5,000 RPM
Rotating tool spindle motor (15 min rating): 7.5 Hp
Rotating tool torque: 34.7 ft-lbs
Rotating tool collet type: ER25
Milling collet capacity: 1/16” to 5/8"

SUB-SPINDLE:
B axis travel (sub-spindle): 22.8”
Spindle speed: 60 – 6,000 RPM
Spindle motor: 10 HP
Maximum torque: 34.7 ft-lbs.
Spindle nose: A2#5
Spindle bore: 1.77”
Draw tube ID: 1.38"
Rapid traverse rate: 787 IPM
Minimum programmable angle: .001 degree

COOLANT SYSTEM:
Coolant pump pressure: 65 PSI
Coolant pump motor: 1.2 HP
Coolant tank capacity: 39 gallons


EQUIPPED WITH:
Fanuc 18iTB CNC Control
Automatic Tool Setter
8" 3-Jaw Hydraulic Chuck on Main
6" 3-Jaw Hydraulic Chuck on Sub
12 Position Turret
CHIP CONVEYOR

Some Live & Static Holders

Floor space: 123” L x 67” W (w/o Chip Conveyor)
Approximate Weight: 10,670 LBS

Voltage required: 205 - 235 volt / 3 phase
Power requirement: 51 KVA (134 amps at 220 volts)
