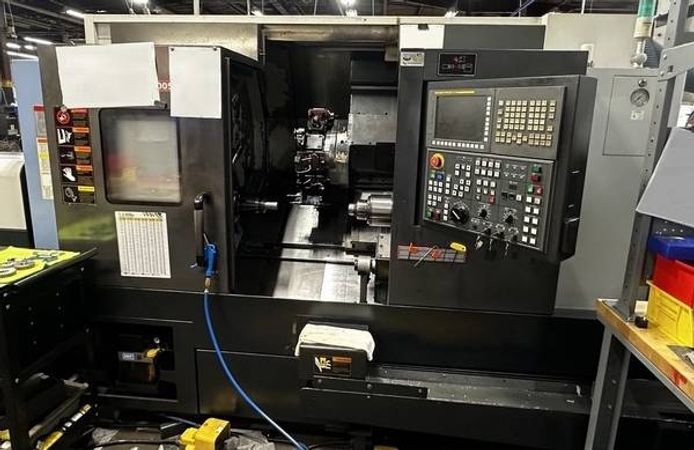

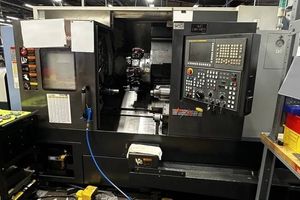

2012 DOOSAN PUMA 2100SY

Max Turning Length: 20.5"
Max Turning Dia: 16"
Swing Over bed: 30.7"
Max Bar Dia: 2.6"
Main and Sub: 4,500 RPM
Live Tooling: 5,000 RPM
Turret: 12 Station
Index Positions: 24
8" Chuck for Main Spindle.
6" Chuck for Sub Spindle.
**Bar feeder and Collet Chucks are NOT included with the machine

MAIN SPINDLE C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate 400 RPM
C-axis contouring torque 70 ft-lbs
C-axis braking torque 663 ft-lbs
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.

ROTATING TOOLS:
Rotating tool RPM 5,000 RPM
Rotating tool spindle motor (15 min rating) 7.5 Hp
Rotating tool collet type ER25
Milling collet capacity (2 – 16mm) 1/8” to 5/8"
Max. tool length facing sub spindle head 3.94”
Max. X-axis tool length with Y-axis in any position 3.8”

Y-AXIS:
Y-axis travel 4.13”
Axis rapid traverse rate 394 IPM

SUB SPINDLES:
B axis travel (sub spindle) 23.2”
Sub spindle guideway span 13.2”
Spindle speed 6,000 RPM
Spindle motor (30 min. rating) 20 HP
Maximum torque (30 min. rating) 98 ft-lbs
Spindle nose A2-5
Spindle bore (62mm) 2.44”
Draw tube ID (50mm) 1.97"
Rapid traverse rate (30 m/min) 1181 IPM
Minimum programmable angle .001 degree (full C axis)

Fanuc 31i-A
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Mist Collector
