Machine Overview

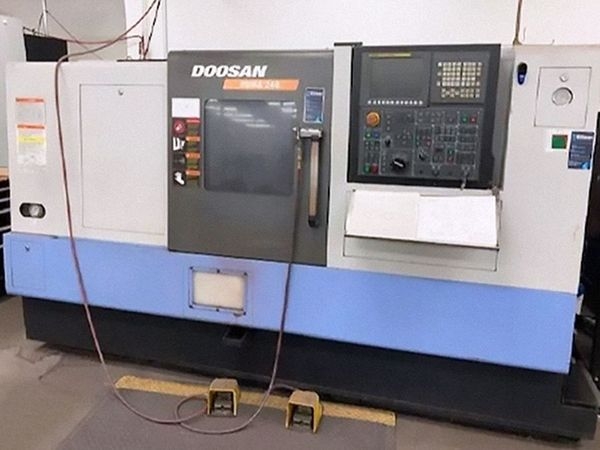

This 2012 DOOSAN PUMA 240B is up for sale, offering capabilities that many shops seek for their turning operations. Known for its substantial build and precision, this machine is enhanced with a Tool Presetter and a Tailstock, broadening its range of functionality.
Key specifications reflect its industrial strength. The swing over the bed measures 21.7 inches, while the swing over the saddle is at 15.4 inches. With a maximum turning diameter of 13.8 inches and a turning length of 22.1 inches, it is equipped to handle considerable workpieces. The maximum bar work diameter is 2.5 inches, complemented by an X-axis travel of 9.5 inches and a Z-axis travel of 22.8 inches.
The machine's spindle operates at a speed of 4500 RPM with an A2-6 spindle nose and a spindle bore of 3 inches. There are 12 tool stations available, offering versatility for various operations. The dimensions for the OD tool height and the boring bar diameter are 1 inch and 1.5 inches respectively. With an index time of just 0.1 seconds, production continues smoothly.
Impressive rapid traverse rates are possible with 945 IPM on the X-axis and 1200 IPM on the Z-axis. The main motor supplies 25 HP, ensuring robust performance throughout its operation. Weighing approximately 9,780 pounds, this machine has a commendable presence.
The machine is equipped with a FANUC 21iTB CNC control for precise and programmable operation. Additionally, it features an 8-inch 3-jaw hydraulic chuck and a toolsetter, enhancing its functionality. The 12-station turret and tailstock complete the setup, ready to serve in demanding environments. All available manuals come with this purchase, providing essential guidance for operation and maintenance.
