Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-8
X Axis Travel: 10.2"
Y Axis Travis: 4.1
Z Axis Travel: 32.7"
C-Axis Indexing: 0.001 DEGREES
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14.8"
Max Turning Length: 29.9"
Max Swing: 30.7"
SUB-SPINDLE (B-Axis):
Maximum Spindle Speed 4,500 RPM
Sb Spindle/W-Axis Travel: 32.7"
Sub-Spindle Nose A2-5
Sub-Spindle Minimum Programmable Angle .001 Degree
Spindle Motor (30 Min./Continuous) .20 HP

TURRET:
Turret Index Time (next station) 0.15 Seconds
Maximum Rotary Tool Speed 5,000 RPM
Live Spindle Motor 10 HP
Dimensions: 175" x 77" x 85"

** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
Options:
Fanuc 31i-A
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Parts Conveyor
Description:

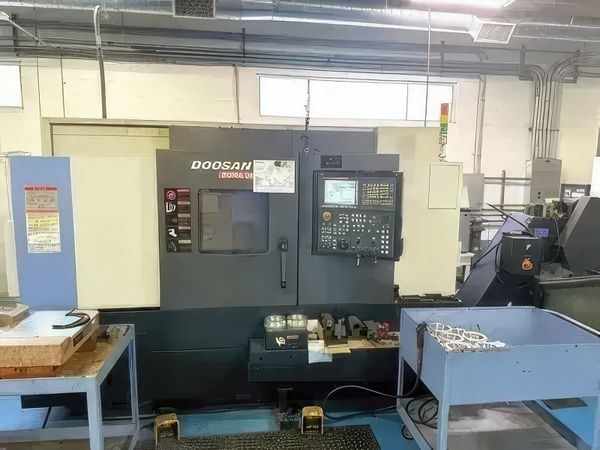

This 2011 DOOSAN PUMA 2600SY is a versatile CNC lathe, designed to meet demanding machining tasks with precision. It is equipped with several valuable options including a Chip Conveyor, Parts Catcher, Sub Spindle, and Y-Axis capability.

With a swing over bed of 779.78 mm, this machine allows for a maximum cutting diameter of 375.92 mm and a length of 759.46 mm, offering ample capacity for various projects. The distance between centers is 830.58 mm, providing significant workpiece handling. Its X-axis travel is 259.08 mm, complemented by the Y-axis with a travel of 4.1 inches. Laterally, the Z-axis delivers 830.58 mm of travel, and C-axis indexing is precise at 0.001 degrees.

Utilizing a spindle nose of A2-8, the main spindle is powered by a 22.4 kW motor reaching speeds up to 4,000 RPM. The machine can handle bars with diameters of up to 76.2 mm. Rapid traverse rates for both the X-axis and Z-axis stand at 30 meters per minute, enhancing operational speed.

The sub spindle, featuring its own A2-5 spindle nose, allows for bar capacity of 60.96 mm. Driven by an 8.2 kW motor, it can reach speeds of 4,500 RPM. The sub spindle’s W-axis mirrors the 830.58 mm range of travel, adding to the flexibility of part handling and transfer.

For tasks requiring live milling, the lathe supports this with a milling speed reaching 5,000 RPM, driven by a 5.6 kW motor. It offers a turret capacity of 12 tools, facilitating complex machining without frequent tool changes.

This model features the advanced FANUC 31i-MODEL A CNC control system, enhancing user interaction and precision control. The machine is ready for immediate inspection and purchase, presenting a robust option for businesses looking to expand their machining capabilities efficiently.
