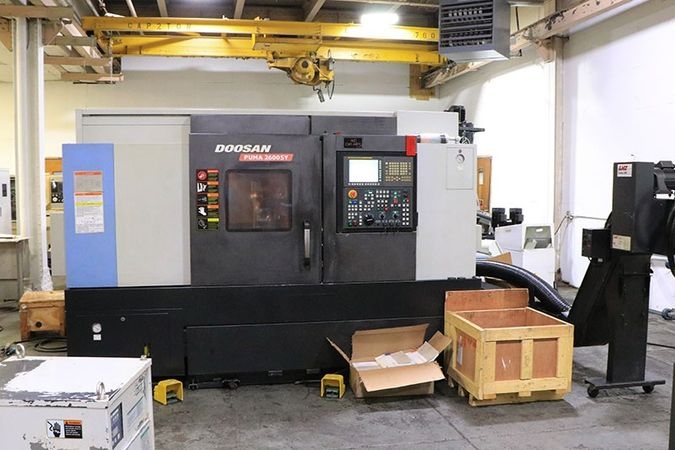

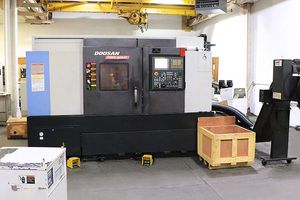

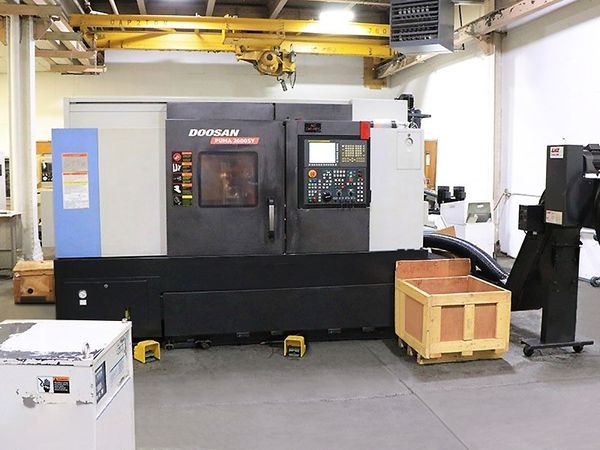

2011 DOOSAN PUMA 2600SY

SWING OVER BED: 30.7"
MAX CUTTING DIAMETER: 14.8"
MAX CUTTING LENGTH: 29.9"
DISTANCE BETWEEN CENTERS: 43.4"
X-AXIS TRAVEL: 10.2"
Y-AXIS TRAVEL: 4.1"
Z-AXIS TRAVEL: 32.6"
C-AXIS INDEXING: 0.001 Degrees
CHUCK SIZE: 10"
BAR CAPACITY: 3.03"
SPINDLE BORE: 3.38"
SPINDLE NOSE: A2-8
SPINDLE MOTOR: 30 H.P.
SPINDLE SPEED: 4,000 RPM

SUB SPINDLE:
CHUCK SIZE: 8"
BAR CAPACITY: 1.97"
SPINDLE BORE: 2.44"
SPINDLE NOSE: A2-5
SPINDLE MOTOR: 11 H.P.
SPINDLE SPEED: 6,000 RPM
W-AXIS TRAVEL: 32.7"
TURRET CAPACITY: 12 Stations
TURRET TYPE: BMT65
LIVE MILLING: Yes
LIVE MILLING SPEED: 5,000 RPM
LIVE MILLING MOTOR: 7.5 H.P.


EQUIPPED WITH:
FANUC 31i-MODEL A CNC CONTROL
10" 3-JAW HYDRAULIC CHUCK ON MAIN SPINDLE
8" 3-JAW HYDRAULIC CHUCK ON SUBSPINDLE
Y-AXIS, C-Axis
12 STATION TURRET W/ 24 POSITION INDEXING
CHIP CONVEYOR
PARTS CATCHER
PARTS CONVEYOR
ALL AVAILABLE LIVE AND STATIC TOOLHOLDERS

Dimensions: 153" X 74" X 85"H
Weight: 14,220 LBS

Fanuc 31i-T
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
