Seller Needs:
$157,500|
157
|
3

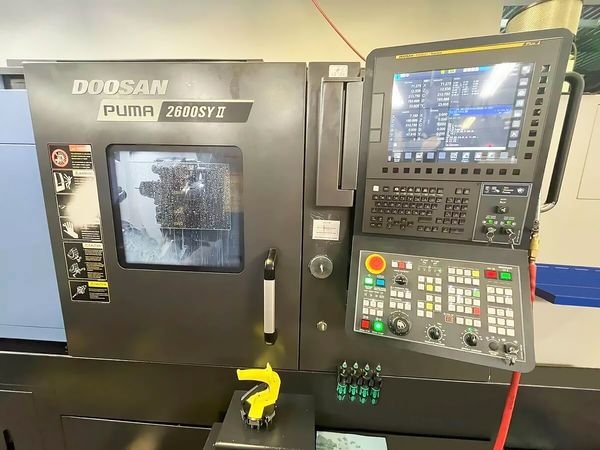

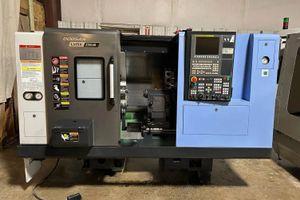

This 2022 DOOSAN PUMA 2600SY-II is a versatile CNC machining tool designed to meet various industrial needs. It's a multi-tasking turning center equipped for complex operations across a range of materials.
The machine featur...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Sub Spindle Max. Speed: 6,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 10"
Z Axis Travel: 32"
Turret Tools: 12 Station
X-Axis Rapid Traverse: 1,181 in/min
Y-Axis Rapid Traverse: 394 in/min
Z-Axis Rapid Traverse: 1,181 in/min
C-Axis Rapid Traverse: 200 RPM
Max Turning Dia: 14.8"
Max Turning Length: 29.9"
X-Axis: 10.2?
Y-Axis: 4.1?
Z-Axis: 32.7?
B-Axis: 32.7?
Live Cutting Rotary Tool Speed: 5,000 RPM
Live Milling Rotary Tool Motor: 10 HP
Sub Spindle Motor: 20 HP
Dimensions: 142" x 75" x 85"
Weight: 14,440 LBS
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Sub Spindle Max. Speed: 6,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 10"
Z Axis Travel: 32"
Turret Tools: 12 Station
X-Axis Rapid Traverse: 1,181 in/min
Y-Axis Rapid Traverse: 394 in/min
Z-Axis Rapid Traverse: 1,181 in/min
C-Axis Rapid Traverse: 200 RPM
Max Turning Dia: 14.8"
Max Turning Length: 29.9"
X-Axis: 10.2?
Y-Axis: 4.1?
Z-Axis: 32.7?
B-Axis: 32.7?
Live Cutting Rotary Tool Speed: 5,000 RPM
Live Milling Rotary Tool Motor: 10 HP
Sub Spindle Motor: 20 HP
Dimensions: 142" x 75" x 85"
Weight: 14,440 LBS
Options:
Fanuc i Series
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
Capto C4 Tooling Package
Live Tool Holders
Standard Straight Post Holders
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
Capto C4 Tooling Package
Live Tool Holders
Standard Straight Post Holders
Seller:
BretF375
Location:
USA
