Machine Overview

Specs:
Bar Capacity: 3.2"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 10.2"
Z Axis Travel: 31.7"
Turret Tools: 12 Station
Max Turning Dia: 18.1"
Max Turning Length: 25.9"
Max Swing: 24.8"
Weight: 13,000 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Description:

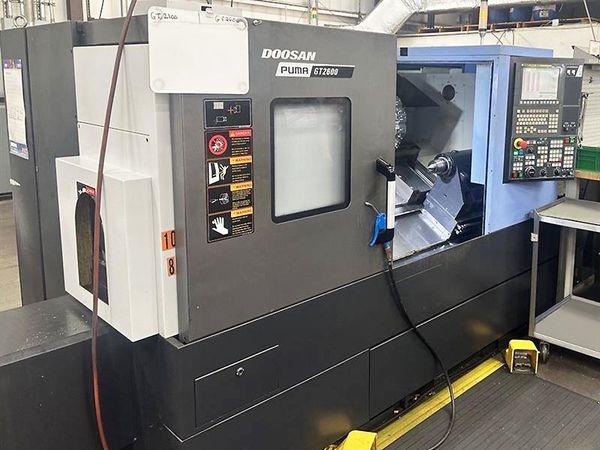

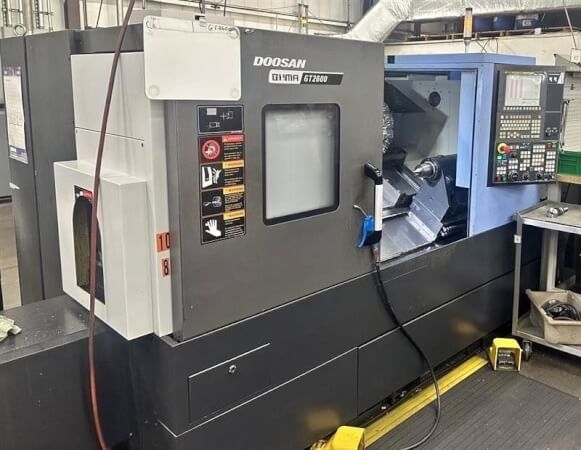

This 2015 DOOSAN PUMA 2600S is a robust CNC Lathe that comes equipped with a Chip Conveyor, Tool Presetter, and Tailstock, offering a comprehensive package for your machining needs.

This model features the Doosan-Fanuc i Series CNC Control, a widely appreciated system for its ease of use and precise control. It comes with a 10" 3 Jaw Chuck, and the machine's automatic tool changer houses 12 tools, providing versatility for various machining tasks. With a spindle speed of up to 3,500 RPM, it allows for speedy operations while maintaining high standards of machining.

The machine can handle a maximum turning diameter of 18.1" and a maximum turning length of 25.9", making it suitable for moderate to large-sized workpieces. The draw tube inside diameter is 3.23", further aiding its usability for different tasks.

A programmable tailstock adds to its functionality, allowing for easier setup and operation during machining processes. Rigid Tapping is included, enhancing the machine's capacity for complex tasks. The Tool Presetter included simplifies tool setup, saving time during operation runs.

For chip management, an LNS Chip Conveyor is included. In addition, the machine comes with an LNS Mist Collector, Model WS2-330 High Efficiency, suitable for diverse filtration needs with its three-stage filtration unit, though not visible in photos.

This used DOOSAN PUMA 2600S offers completeness in essential features and functionalities, designed suitable to meet a range of operational requirements in a typical machining setup.
