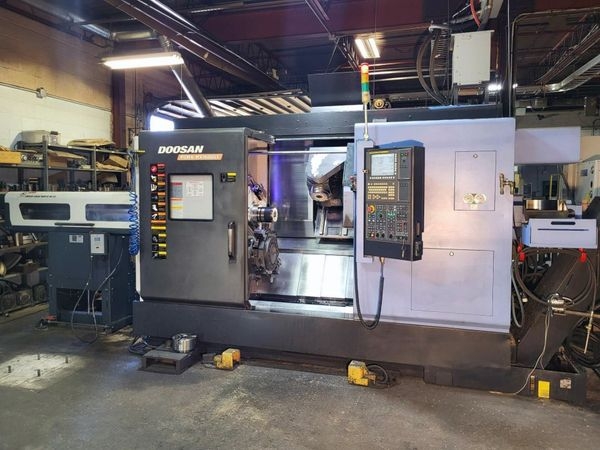

This 2013 DOOSAN PUMA MX1600ST is equipped to meet various machining needs with key options for enhanced performance. It includes a Chip Conveyor for efficient removal of debris, Live Tooling for versatile operations, and a S...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
Bar Capacity: 2"
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Turret Tools: 16 Station
Max Turning Dia: 12.99"
Max Swing: 26.77"
Distance between centers: 46.2"
Travel Distance X1-axis (17.7 in.)
Travel Distance Z1-axis (36.8 in.)
Travel Distance X2-axis (6.5 in.)
Travel Distance Z2-axis(36.4 in.)
Travel Distance Y-axis (6.7±3.4 in.)
Travel Distance B-axis. 240°±120°
Rapid Traverse X1-axis (1,417 in/min)
Rapid Traverse Z1-axis(1,417 in/min)
Rapid Traverse Y-axis(1,024 in/min)
Max Turning Diameter (Main Spindle) (13 in.)
Max Turning Length(35.4 in.)
Through Hole Diameter (Left Spindle) (2 in.)
Through Hole Diameter (Right Spindle)(2 in.)
Dimensions: 109" x 130" x 105.5"
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Turret Tools: 16 Station
Max Turning Dia: 12.99"
Max Swing: 26.77"
Distance between centers: 46.2"
Travel Distance X1-axis (17.7 in.)
Travel Distance Z1-axis (36.8 in.)
Travel Distance X2-axis (6.5 in.)
Travel Distance Z2-axis(36.4 in.)
Travel Distance Y-axis (6.7±3.4 in.)
Travel Distance B-axis. 240°±120°
Rapid Traverse X1-axis (1,417 in/min)
Rapid Traverse Z1-axis(1,417 in/min)
Rapid Traverse Y-axis(1,024 in/min)
Max Turning Diameter (Main Spindle) (13 in.)
Max Turning Length(35.4 in.)
Through Hole Diameter (Left Spindle) (2 in.)
Through Hole Diameter (Right Spindle)(2 in.)
Dimensions: 109" x 130" x 105.5"
Options:
Fanuc 31i - Model B5 Control
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
2016 LNS Quickload Servo 80 S2
Quick change chuck
ChipBlaster GV2-80 high-pressure coolant system
Parts conveyor
Original 3-Jaw Chuck
Tooling
Live tooling: C-axis live tooling
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
2016 LNS Quickload Servo 80 S2
Quick change chuck
ChipBlaster GV2-80 high-pressure coolant system
Parts conveyor
Original 3-Jaw Chuck
Tooling
Live tooling: C-axis live tooling
