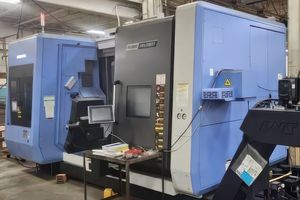

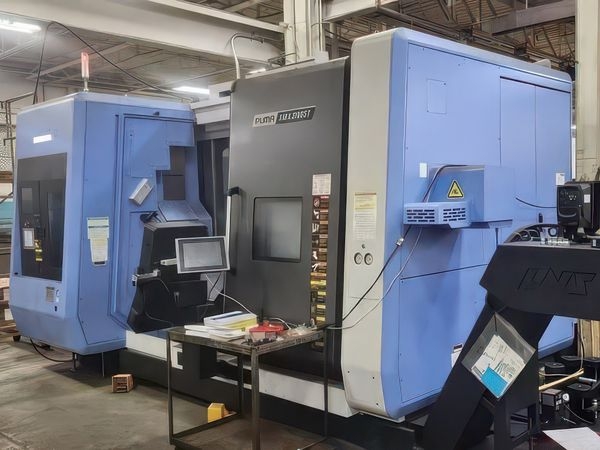

2019 DOOSAN PUMA SMX3100ST-LMT

ID:14436
Brand:DOOSAN
Model: PUMA SMX3100ST-LMT
Year:2019
Category:CNC Lathe
Location:Illinois

Located In Illinois

SHIPPING COST :

DOOSAN PUMA SMX3100ST-LMT AI Chat

Loading ...

Machine Overview

Specs:

Chuck Size: 12"
Spindle Speed: 12,000 RPM
CAPACITY:
Swing over bed 660 mm (25.98")
Maximum bar capacity 102 mm (4.0")
Swing over carriage 660 mm (25.98")
Maximum turning diameter (Main Spindle) 660 mm (25.98")
Maximum turning length 1,540 mm (60.63")
Distance between left and right spindle nose 1,917 mm (75.47")
Recommended chuck size (left / right spindle) 310 / 255 mm (12 / 10")

LEFT SPINDLE:
Spindle speed 3,000 rpm
Spindle nose A2-11
Left spindle draw tube ID 103 mm (4.055")
Spindle bore diameter 115 mm (4.52")
AC spindle Motor (30 min. rating) 30 kW (40 hp)
Maximum spindle torque (S2 30 min rating) 1,203 Nm (887 ft-lb)

RIGHT SPINDLE:
Spindle speed 40-4,000 rpm
Spindle nose A2-8
Right spindle draw tube ID 82 mm (3.23")
Right spindle hydraulic actuator ID 46 mm (1.81")
Spindle bore diameter 91 mm (3.58")
AC spindle Motor (S2 30 Min rating) 26 kW (35 hp)
Maximum spindle torque (S3 25% ED) 621 Nm (458 ft-lbs)

LEFT AND RIGHT SPINDLE C-AXIS:
Minimum programmable angle (degrees) 0.001 degree
Rapid traverse rate (RPM) 200 rpm

MILLING SPINDLE:
Spindle speed 12,000 rpm
Motor power (S3 25% ED) 26 kW (35 hp)
Maximum spindle torque (S3 10% ED) 124 Nm (91ft-lb)
Tool index (2, 3 or 4 insert multi-tools) 15 degree
B-axis (tilt) coupling increment Random angle
B-axis travel 240 degree (+120 degree / -120 degree)
B-axis minimum increment 0.0001 degree

BED, SADDLE & CROSS SLIDE:
Angle of slant bed 0 degree
X1 (upper) axis travel 695 mm (27.36")
Z1 (upper) axis travel 1,585 mm (62.4")
X2 (lower) axis travel 235 mm (9.25")
Z2 (lower) axis travel 1,540 mm (60.63")
X1 axis rapid traverse rate 48 m/min (1,890 ipm)
Z1 axis rapid traverse rate 48 m/min (1,890 ipm)

Y-AXIS:
Y-axis travel (total) 300 mm (±150mm) (11.81" (±5.9”))
Y-axis travel (above center) 150 mm (5.9")
Y-axis travel (below center) 150 mm (5.9")
Y-axis rapid traverse rate 36 m/min (1,417 ipm)
Y-axis feed thrust (continuous) 10,375 N (2,332 lb)
Y-axis feed thrust (intermittent) 14,482 N (3,255 lb)

ATC:
Tool holder type CAPTO-C6
Tool storage capacity 80
Max. Tool diameter 90 mm (3.54")
Max. Tool diameter w/o adjacent tools 130 mm (5.12")
Max. Tool length 450 mm (17.7")
Max. Tool weight 12 kg (26.4 lb)
Tool selection method Fixed
Tool change time (tool to tool) 1.8 second

LOWER TURRET:
Turret Stations 12
Turret indexing positions 12
Tool holder type BMT-KEY
Turning tool shank size (metric turret 25 mm) 1.0"
Boring bar diameter (metric turret 40 mm) 1.5"
Turret index time (next station swivel time) 0.2 second
Tool selection Bi-Directional
Turret index repeatability ±0.0005 degree

ROTARY TOOLS - LOWER TURRET: (optional for milling turret model only)
Tool holder type BMT-65
Rotating tool RPM 5,000 rpm
Rotating tool spindle motor (S3 40%. Rating) 7.0 kW (9.4 hp)
Rotating tool torque (S3 40%. Rating) 27 Nm (20 ft-lb)
Rotating tool collet type ER 32
Milling collet capacity 1/8 to 3/4"

GENERAL:
Machine weight 18,500 kg (40,780 lb)
Floor space - length x width 5,790 mm x 3,021 mm (228" x 119")
Chip conveyor extension (opt hinge belt side discharge) 7,060 mm (278")
Machine Height 2,820 mm (111")
Height from floor to spindle center 1,360 mm (53.5")
Voltage required 205-235V/3 ph/60 Hz
Power requirement 104 kVA (273 Amps @ 220 Volts)

Options:

Fanuc
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

Description:

This 2019 DOOSAN PUMA SMX3100ST-LMT is a high-performance machine tool designed for advanced manufacturing processes. It includes a range of features to enhance its functionality, making it a versatile piece of equipment for various machining needs.

The machine is equipped with a Chip Conveyor, which efficiently handles and removes swarf, helping to keep your workspace tidy and production flow smooth. This allows for continuous operation without the need for frequent manual intervention.

Additionally, the Tool Presetter feature ensures precision in tool alignment. This feature helps in reducing setup times, thereby increasing overall productivity by allowing operators to quickly switch between jobs.

The inclusion of a Bar Feeder is ideal for operations that require continuous supply of materials, supporting long machining cycles and reducing downtime. This feature is particularly beneficial for bulk production scenarios.

The Parts Catcher is another valuable option, aiding in the safe and automated collection of finished products. This reduces the risk of damage to the parts and ensures a safer working environment by minimizing manual handling.

Live Tooling capabilities enable the machine to perform a variety of operations, such as drilling, milling, and tapping, expanding the types of jobs that can be completed on this single machine. These capabilities are supported by the Sub Spindle, offering additional flexibility in handling complex components and secondary operations.

The Y Axis feature expands the machine's operational capacity, allowing for more complex cuts and improved part geometries. Coupled with the 5 Axis machining options, it supports the creation of intricate and detailed components that require multi-dimensional processing.

This DOOSAN PUMA SMX3100ST-LMT offers a blend of automation and versatility, making it a valuable investment for workshops aiming to enhance their machining capabilities. It stands out as a comprehensive solution for handling a variety of tasks with precision.
