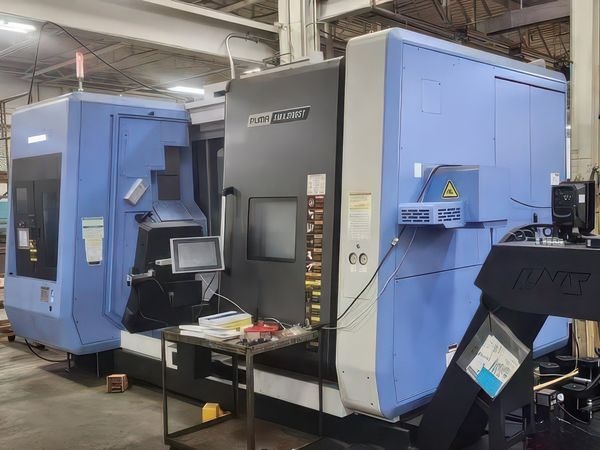

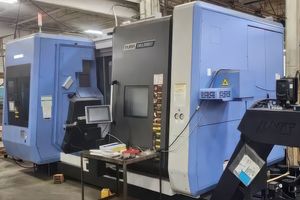

2019 DOOSAN PUMA SMX3100ST-LMT

Chuck Size: 12"
Spindle Speed: 12,000 RPM
CAPACITY:
Swing over bed 660 mm (25.98")
Maximum bar capacity 102 mm (4.0")
Swing over carriage 660 mm (25.98")
Maximum turning diameter (Main Spindle) 660 mm (25.98")
Maximum turning length 1,540 mm (60.63")
Distance between left and right spindle nose 1,917 mm (75.47")
Recommended chuck size (left / right spindle) 310 / 255 mm (12 / 10")

LEFT SPINDLE:
Spindle speed 3,000 rpm
Spindle nose A2-11
Left spindle draw tube ID 103 mm (4.055")
Spindle bore diameter 115 mm (4.52")
AC spindle Motor (30 min. rating) 30 kW (40 hp)
Maximum spindle torque (S2 30 min rating) 1,203 Nm (887 ft-lb)

RIGHT SPINDLE:
Spindle speed 40-4,000 rpm
Spindle nose A2-8
Right spindle draw tube ID 82 mm (3.23")
Right spindle hydraulic actuator ID 46 mm (1.81")
Spindle bore diameter 91 mm (3.58")
AC spindle Motor (S2 30 Min rating) 26 kW (35 hp)
Maximum spindle torque (S3 25% ED) 621 Nm (458 ft-lbs)

LEFT AND RIGHT SPINDLE C-AXIS:
Minimum programmable angle (degrees) 0.001 degree
Rapid traverse rate (RPM) 200 rpm

MILLING SPINDLE:
Spindle speed 12,000 rpm
Motor power (S3 25% ED) 26 kW (35 hp)
Maximum spindle torque (S3 10% ED) 124 Nm (91ft-lb)
Tool index (2, 3 or 4 insert multi-tools) 15 degree
B-axis (tilt) coupling increment Random angle
B-axis travel 240 degree (+120 degree / -120 degree)
B-axis minimum increment 0.0001 degree

BED, SADDLE & CROSS SLIDE:
Angle of slant bed 0 degree
X1 (upper) axis travel 695 mm (27.36")
Z1 (upper) axis travel 1,585 mm (62.4")
X2 (lower) axis travel 235 mm (9.25")
Z2 (lower) axis travel 1,540 mm (60.63")
X1 axis rapid traverse rate 48 m/min (1,890 ipm)
Z1 axis rapid traverse rate 48 m/min (1,890 ipm)

Y-AXIS:
Y-axis travel (total) 300 mm (±150mm) (11.81" (±5.9”))
Y-axis travel (above center) 150 mm (5.9")
Y-axis travel (below center) 150 mm (5.9")
Y-axis rapid traverse rate 36 m/min (1,417 ipm)
Y-axis feed thrust (continuous) 10,375 N (2,332 lb)
Y-axis feed thrust (intermittent) 14,482 N (3,255 lb)

ATC:
Tool holder type CAPTO-C6
Tool storage capacity 80
Max. Tool diameter 90 mm (3.54")
Max. Tool diameter w/o adjacent tools 130 mm (5.12")
Max. Tool length 450 mm (17.7")
Max. Tool weight 12 kg (26.4 lb)
Tool selection method Fixed
Tool change time (tool to tool) 1.8 second

LOWER TURRET:
Turret Stations 12
Turret indexing positions 12
Tool holder type BMT-KEY
Turning tool shank size (metric turret 25 mm) 1.0"
Boring bar diameter (metric turret 40 mm) 1.5"
Turret index time (next station swivel time) 0.2 second
Tool selection Bi-Directional
Turret index repeatability ±0.0005 degree

ROTARY TOOLS - LOWER TURRET: (optional for milling turret model only)
Tool holder type BMT-65
Rotating tool RPM 5,000 rpm
Rotating tool spindle motor (S3 40%. Rating) 7.0 kW (9.4 hp)
Rotating tool torque (S3 40%. Rating) 27 Nm (20 ft-lb)
Rotating tool collet type ER 32
Milling collet capacity 1/8 to 3/4"

GENERAL:
Machine weight 18,500 kg (40,780 lb)
Floor space - length x width 5,790 mm x 3,021 mm (228" x 119")
Chip conveyor extension (opt hinge belt side discharge) 7,060 mm (278")
Machine Height 2,820 mm (111")
Height from floor to spindle center 1,360 mm (53.5")
Voltage required 205-235V/3 ph/60 Hz
Power requirement 104 kVA (273 Amps @ 220 Volts)

Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
