Seller Needs:
$80,500|
708
|
2

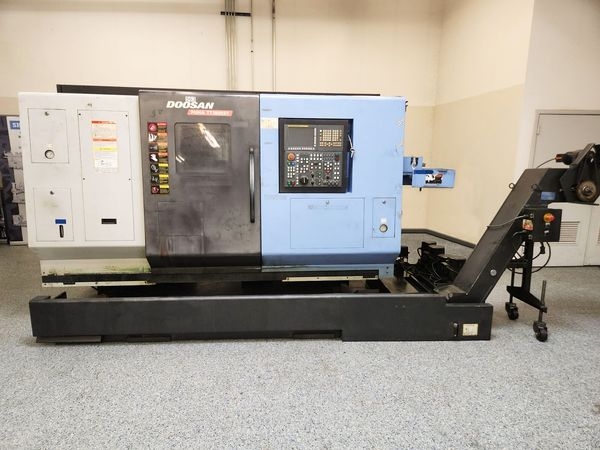

Pre-owned DOOSAN PUMA TT1800SY 2010 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 31i-A control. This CNC Machine is currently located in Illinois. This DOOSAN CNC Lathe is available for a li...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.62"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X-Axis Travel: 6.5"
X2-Axis Travels: 7.5"
Z-Axis Travel: 31.5"
Z2-Axis Travels: 28.3"
Y-Axis Travel: 3.9"
A-Axis Travel: 30.3"
C-Axis Indexing: 360° in .001° increments
Max Turning Diameter: 9.1"
Max Turning Length: 9.1"
Max Machining Length: 38.5"
Max Swing: 9.1"
TURRET:
Turret Configuration (Upper + Lower): 24 + 24 (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM
SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments
EQUIPPED WITH:
Fanuc 31i-A CNC Control
(2) 8" 3-Jaw Chucks (Collet chucks pictured NOT included)
Live Tool Capability
Y-Axis
Chip Conveyor
3) ID Toolholders
6) OD Toolholders
1) X-Axis Live Holder
1) Z-Axis Live Holder
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X-Axis Travel: 6.5"
X2-Axis Travels: 7.5"
Z-Axis Travel: 31.5"
Z2-Axis Travels: 28.3"
Y-Axis Travel: 3.9"
A-Axis Travel: 30.3"
C-Axis Indexing: 360° in .001° increments
Max Turning Diameter: 9.1"
Max Turning Length: 9.1"
Max Machining Length: 38.5"
Max Swing: 9.1"
TURRET:
Turret Configuration (Upper + Lower): 24 + 24 (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM
SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments
EQUIPPED WITH:
Fanuc 31i-A CNC Control
(2) 8" 3-Jaw Chucks (Collet chucks pictured NOT included)
Live Tool Capability
Y-Axis
Chip Conveyor
3) ID Toolholders
6) OD Toolholders
1) X-Axis Live Holder
1) Z-Axis Live Holder
Options:
Fanuc 31i-A
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
EverD572
Location:
IL
