Machine Overview

Specs:
Bar Capacity: 2.625"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 6.5"
X2 Axis Travels: 7.5"
Z Axis Travel: 31.5"
Z2 Axis Travels: 28.3"
Y Axis Travel: 3.9"
A Axis Travel: 30.3"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 9.1"
Max Turning Length: 9.1"
Max Swing: 9.1"
TURRET:
Turret Configuration (Upper + Lower): 24 + 24 (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM

SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments
Dimensions: 154" x 82" x 82"
Options:
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Description:

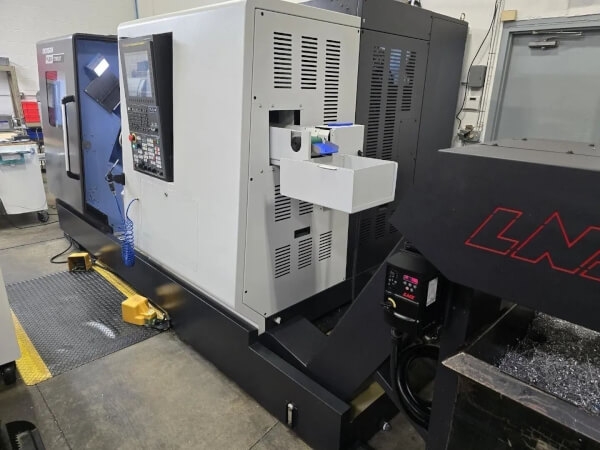

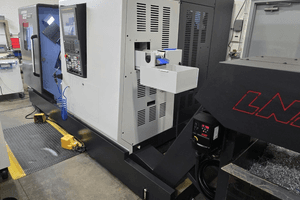

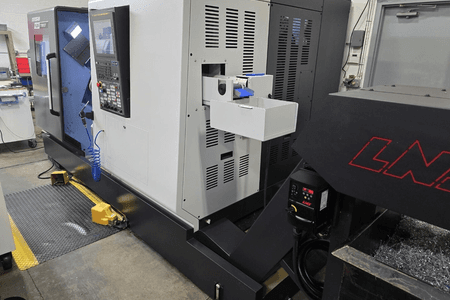

This 2021 DOOSAN PUMA TT1800SY is a versatile machine that's ready to tackle a wide range of machining tasks. The unit is equipped with advanced features that enhance its functionality and operational capacity.

The machine includes a Bar Feeder, allowing for a seamless loading process that keeps production flowing smoothly. This feature is ideal for jobs requiring continuous operation, ensuring consistency with minimal manual intervention.

Live Tooling is another standout attribute of this unit, providing the ability to execute tasks with precision and speed. This capability is especially beneficial for complex tasks that require detailed work in shorter time frames.

With the addition of a Sub Spindle, this machine can handle more complex operations, enhancing its capability by allowing double-end work without multiple setups. This feature streamlines processes and saves valuable production time.

The Y Axis function augments the machine's versatility even further, providing flexibility in multiple planes for intricate cuts and designs. As such, it effectively expands the potential job types that the machine can accommodate.

Finally, the machine's 5 Axis operation elevates its ability to perform complex tasks, enabling movements along multiple axes for detailed and sophisticated work. This feature significantly increases the range of possible machining projects, meeting demands for precision and detail.

Overall, this 2021 DOOSAN PUMA TT1800SY brings a combination of advanced features to handle a wide array of machines tasks efficiently. The included options make it a valuable addition to any workspace looking to enhance their machining capabilities.
