Brand:
DOOSAN
Model:
PUMA VTS1214
Year:
2012
Category:
CNC Lathe
ID:
2964
Specifications:
Spindle Bearing Diameter (Front): 9.44"
Spindle Through Hole Diameter: 3.93"
Spindle Speed, 2-Speed Gear Drive: 83-630 RPM
Main Motor, 30 Minute/Continuous: 74 HP / 60 HP
Maximum Table Torque: 6412 Nm
Table Diameter: 39.37"
Swing Over Bed: 55.11"
Max Turning Diameter: 53.14"
Recommended Turning Diameter: 39.37"
Max Turning Height: 32.04"
Maximum Allowable Weight: 8800 LBS
Ram Size: 9.84" x 12.12"
X-Axis Horizontal Head Travel: -5.98"/+51.02"
Z-Axis Ram Stroke: 31.49"
Rapid Traverse, X/Z-Axes: 472.44 IPM
Cross Rail Elevation, 4-Step: 23.6" (5.9" Per Step)
Floor Space: 141.33" x 146.65" x 189.76"
Approx Weight (W/O Pallet Changer): 56,100 Lbs
Spindle Through Hole Diameter: 3.93"
Spindle Speed, 2-Speed Gear Drive: 83-630 RPM
Main Motor, 30 Minute/Continuous: 74 HP / 60 HP
Maximum Table Torque: 6412 Nm
Table Diameter: 39.37"
Swing Over Bed: 55.11"
Max Turning Diameter: 53.14"
Recommended Turning Diameter: 39.37"
Max Turning Height: 32.04"
Maximum Allowable Weight: 8800 LBS
Ram Size: 9.84" x 12.12"
X-Axis Horizontal Head Travel: -5.98"/+51.02"
Z-Axis Ram Stroke: 31.49"
Rapid Traverse, X/Z-Axes: 472.44 IPM
Cross Rail Elevation, 4-Step: 23.6" (5.9" Per Step)
Floor Space: 141.33" x 146.65" x 189.76"
Approx Weight (W/O Pallet Changer): 56,100 Lbs
Equipped With:
Fanuc 32i-A
Chip Conveyor
Rusach 8-10 D1250 Pallet Changer
(2) 39.37" 6-Jaw Chuck
Linear Scales
Pendant Control
Mist Collector
Chip Conveyor
Rusach 8-10 D1250 Pallet Changer
(2) 39.37" 6-Jaw Chuck
Linear Scales
Pendant Control
Mist Collector
Price:
$269,500
Seller:
MichF561
Location:
Georgia
History:

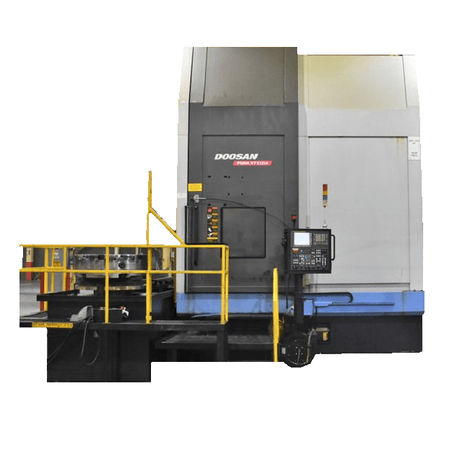

Check out this 2012 Doosan VTS1214 VTL with Pallet Changer. Customer purchased two identical machines and now turned work has slowed down. Machine is available immediately in the Southeast.
