Machine Overview

Specs:
Max. machining length without profile end machining: 4,150 mm

Max. machining length with profile end machining: 4,000 mm

Traverse path X-axis: 4,295 mm, Vmax. 120 m/min.

Traverse path Y-axis: 910 mm, Vmax. 60 m/min.

Traverse path Z-axis: 475 mm, Vmax. 50 m/min.

Direction of machining: 5 (above, behind, front, left, right)

Positioning accuracy: +/- 0.1 mm

Routing spindle speed: max. 24,000 rpm

Routing spindle power: 8 kW, S1 with feedback (air-cooled)

Tool holder: HSK-F63

Tool changing: automatic

Tool tray positions in the automatic magazine: 4 (max. 16)

Angle head: Yes

Disc milling cutter diameter: 120 mm

Tool length (from extent of taper): max. 150 mm

Clamp positioning: automatic

Clamps: Basic (with round guides)

Software: eluCam

Compressed air supply: > 7 bar

Power supply: 400 V, 3~, 50 Hz, 25 A

Air consumption per minute: approx. 185 l with spraying

Total length: 6,592 mm

Depth: 2,171 mm

Height: 3,000 mm

Weight: approx. 2,900 kg


Description:

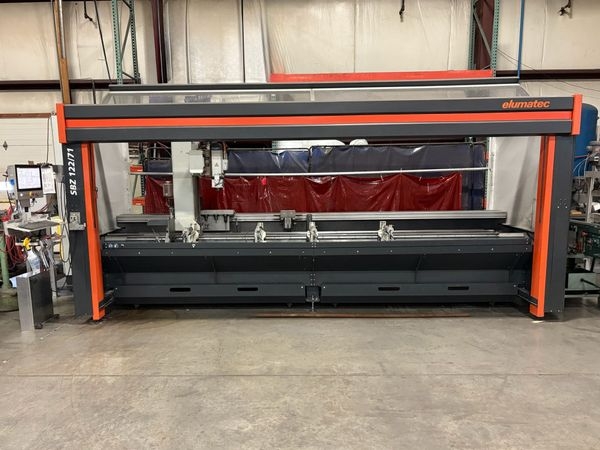

This 2016 ELUMATEC SBZ 122/71 Vertical Machining Center offers a trusted solution for your manufacturing needs. Designed for tasks involving aluminum and PVC profiles, this machine stands out for precision and smooth operations.

With a compact design, it fits well in smaller spaces while still offering a wide working area. The user-friendly control panel ensures ease of use, making it accessible for operators of various skill levels.

The machining center features an efficient spindle that cuts and drills with speed and accuracy. The robust construction reduces vibrations during operation, enhancing the quality of the finished workpiece.

The ELUMATEC SBZ 122/71 comes with a set of standard tools and attachments, allowing for immediate use upon setup. The flexible programming options cater to a variety of production needs, making it suitable for both small batches and continuous production runs.

This machine, having seen use since 2016, remains in good working condition, with components regularly checked and updated. It's a testament to durable machine design and thoughtful engineering.

Offering dependable performance, the 2016 ELUMATEC SBZ 122/71 Vertical Machining Center is a solid choice for any workshop looking to add capability without overwhelming complexity. This machine is ready to contribute to your projects with consistent results.
