Seller Needs:
$7,500|
1573
|
0

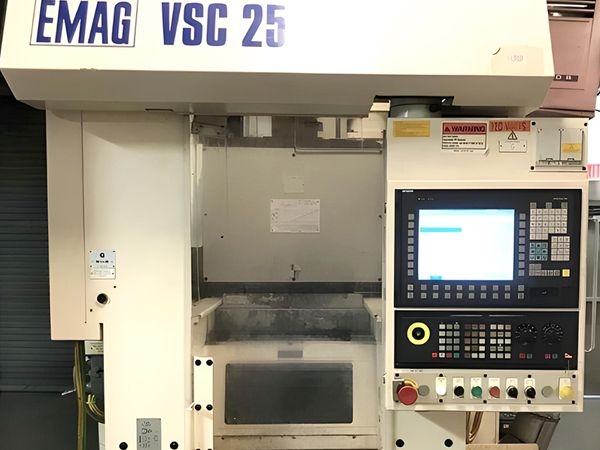

Pre-owned EMAG VSC250 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Siemens Sinumerik 840D control. This CNC Machine is currently located in Ohio. This EMAG CNC Lathe is available for a limite...Read More
Seller Needs:
Payment:
Specs:
Chuck Size: 7.87"
Spindle Speed: 6,000 RPM
Max Turning Length: 7.51"
Max Swing: 10.236"
Spindle Motor: 51 HP
Weight: 17,160 LBS
Turret Tools: 12 Station
Rapid Rate X Axis: 1 IPM
Rapid Rate Z Axis: 1 IPM
X Axis Travel: 26.968"
Z Axis Travel: 7.87"
Power: 440V 3-Phase
Spindle Speed: 6,000 RPM
Max Turning Length: 7.51"
Max Swing: 10.236"
Spindle Motor: 51 HP
Weight: 17,160 LBS
Turret Tools: 12 Station
Rapid Rate X Axis: 1 IPM
Rapid Rate Z Axis: 1 IPM
X Axis Travel: 26.968"
Z Axis Travel: 7.87"
Power: 440V 3-Phase
Options:
Siemens Sinumerik 840D
Chip Conveyor
Bar Feeder
Coolant Pump with 2 Filters
Automated Gantry with a Schuck Gripper and Includes all Sensors
2 Shuttles
Mist Collection Stub Out (mist collector not included)
2 Spare Siemens Power Modules
Chip Conveyor
Bar Feeder
Coolant Pump with 2 Filters
Automated Gantry with a Schuck Gripper and Includes all Sensors
2 Shuttles
Mist Collection Stub Out (mist collector not included)
2 Spare Siemens Power Modules
Seller:
ToddH935
Location:
OH
