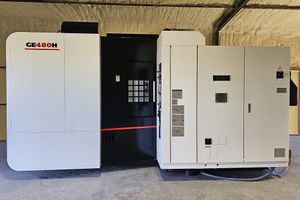

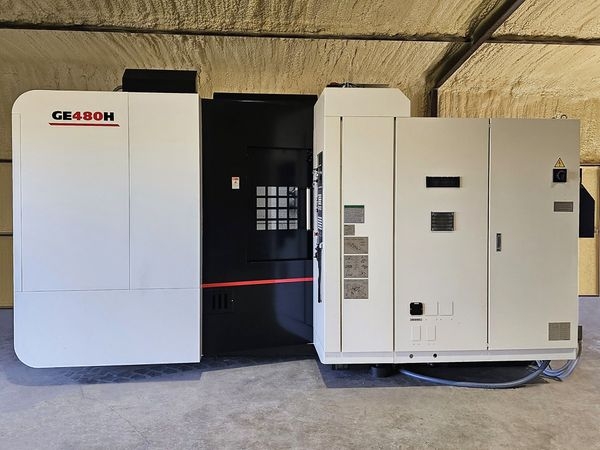

2022 ENSHU GE480H

X Axis Travel: 31.5"
Y Axis Travel: 31.5"
Z Axis Travel: 31.5"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT40 CT
Spindle Motor: 50 HP
Tool Changer: 60 ATC

Fanuc 31iMB control
Fanuc 50HP spindle drive
BIGPlus/CAT 40 spindle taper, interchangeably
Two (2) 500mm Pallets with 24 M16 tapped holes

Rotary automatic pallet changer
60-tool automatic tool changer
15,000 RPM integral spindle
Full fourth [B] axis

Mosnic high volume rolling filter chip conveyor with magnetic separator
Spindle air curtain
Spindle oil chiller

Through spindle coolant 256 PSI at 15 GPM [seals to 1,000PSI for future upgrade]
Spindle flood coolant
Bed flush coolant
Ceiling shower coolant
Refrigerated & temperature controlled spindle, ballscrews and servo motor mounts
Spindle/rapid/feedrate override

LED work light
Three stage stack light
Total enclosed splashguard with manual operated doors
CE Spec
Inch/metric switchable capability
Helical interpolation
Coordinate Rotation
2MB total program memory
Automatic corner override
Tool offset memory type C
200 tool offsets
Custom macro B

Dimensions: 194" x 111" x "
Weight: 27,000 LBS

Probe
Coolant Thru Spindle
Programmable Coolant
360,000 Full 4th
Pallet Pool/FMS
