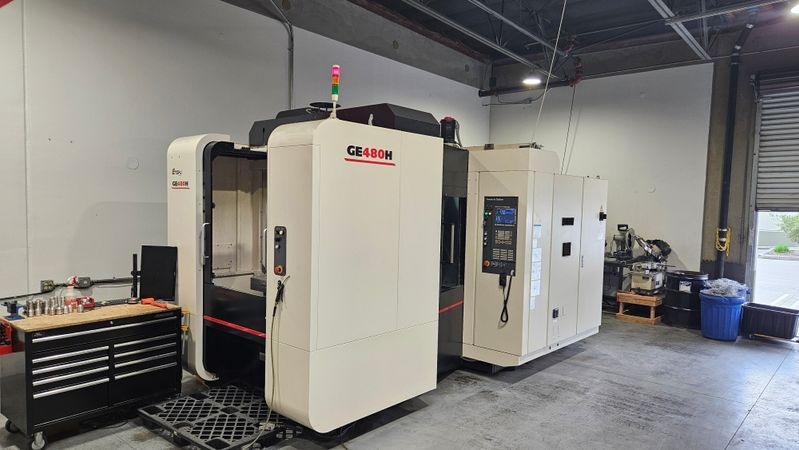

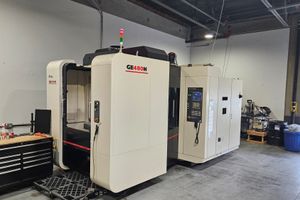

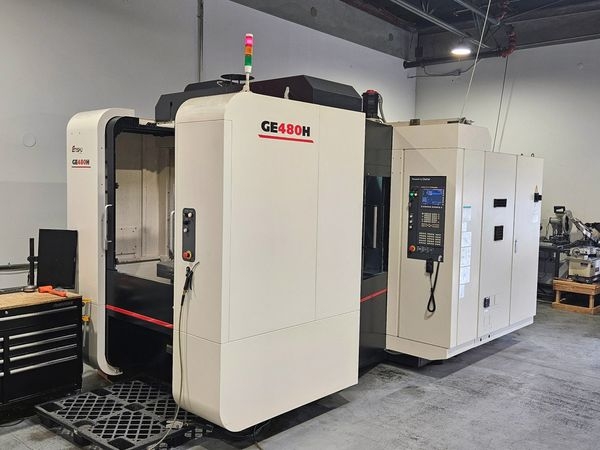

2022 ENSHU GE480H

X Axis Travel: 31.5"
Y Axis Travel: 31.5"
Z Axis Travel: 31.5"
Rapid Rate X Axis: IPM
Rapid Rate Y Axis: IPM
Rapid Rate Z Axis: IPM
Pallet Size:
Max Pallet Load: LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 50 HP
Spindle Taper: CAT40 CT
Tool Changer: 60 ATC
Fanuc 31iMB control Included

Fanuc 50HP spindle drive Included

BIGPlus/CAT 40 spindle taper, interchangeably Included

Two (2) 500mm Pallets with 24 M16 tapped holes Included

Rotary automatic pallet changer Included

60-tool automatic tool changer Included

15,000 RPM integral spindle Included

Full fourth [B] axis Included

Mosnic high volume rolling filter chip conveyor with magnetic separator Included

Spindle air curtain Included

Spindle oil chiller Included

Through spindle coolant 256 PSI at 15 GPM [seals to 1,000PSI for future upgrade] Included

Spindle flood coolant Included

Bed flush coolant Included

Ceiling shower coolant Included

Refrigerated & temperature controlled spindle, ballscrews and servo motor mounts Included

Spindle/rapid/feedrate override Included

LED work light Included

Three stage stack light Included

Total enclosed splashguard with manual operated doors Included

CE Spec Included

Inch/metric switchable capability Included

Helical interpolation Included

Coordinate Rotation Included

2MB total program memory Included

Automatic corner override Included

Tool offset memory type C Included

200 tool offsets Included

Custom macro B Included
Dimensions:
Weight: 27,000 LBS

Chip Conveyor
Probe
Coolant Thru Spindle
Programmable Coolant
360 Deg. Indexing Table
360,000 Full 4th
Pallet Pool/FMS
