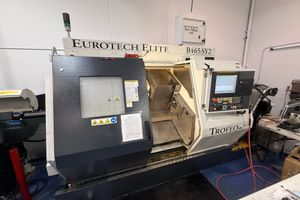

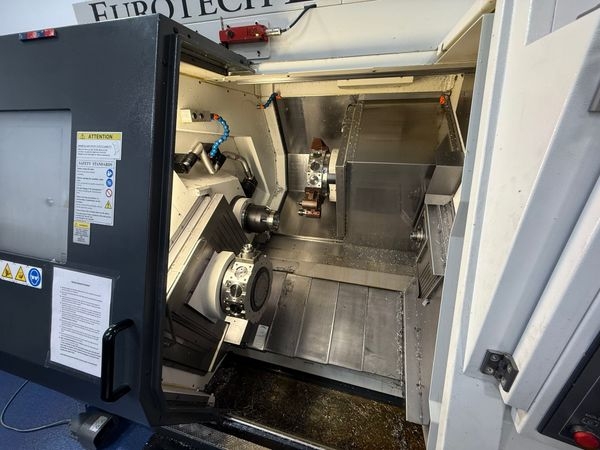

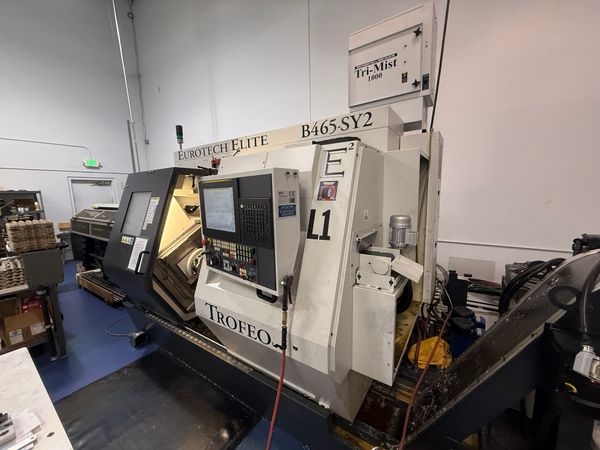

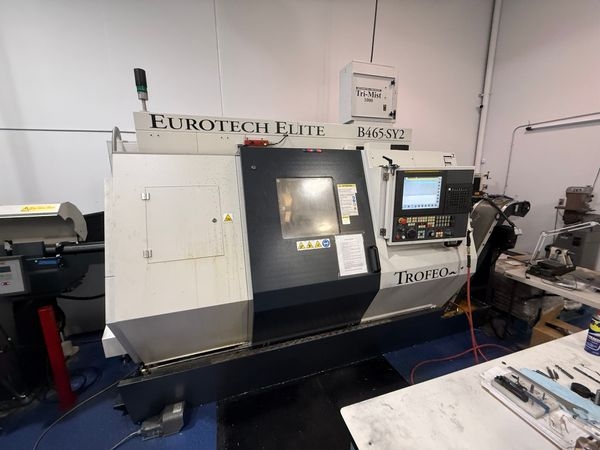

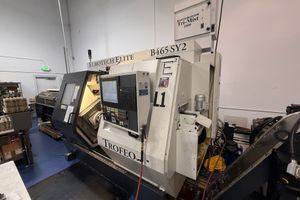

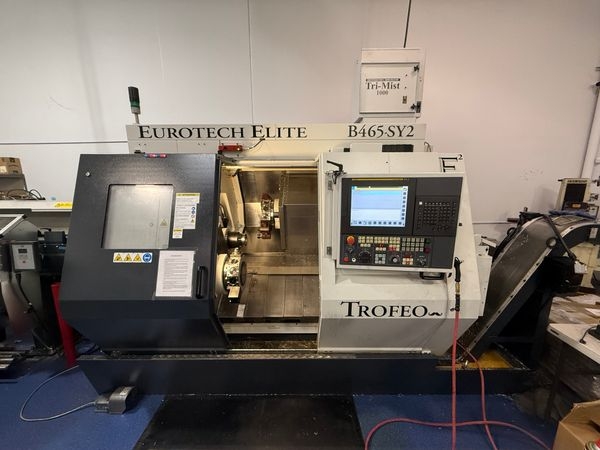

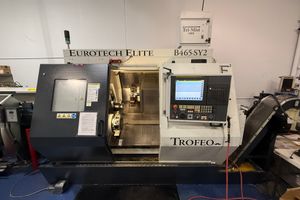

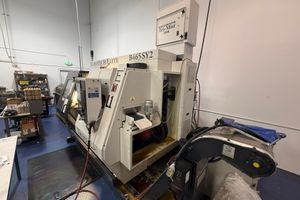

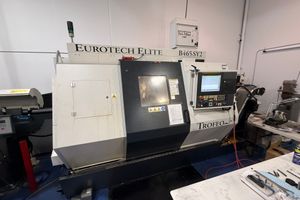

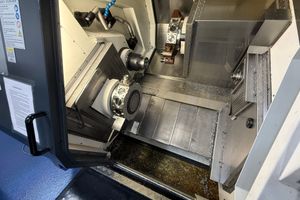

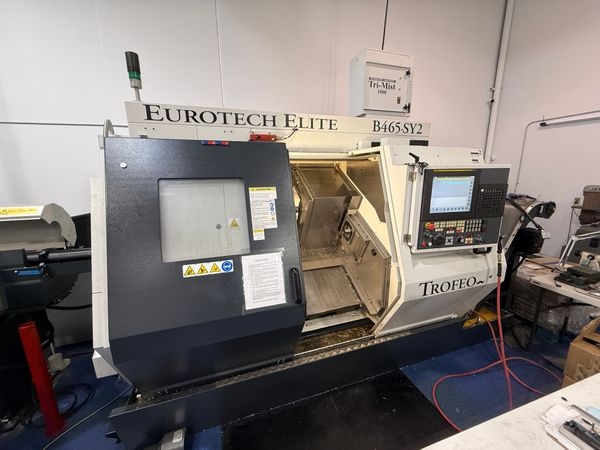

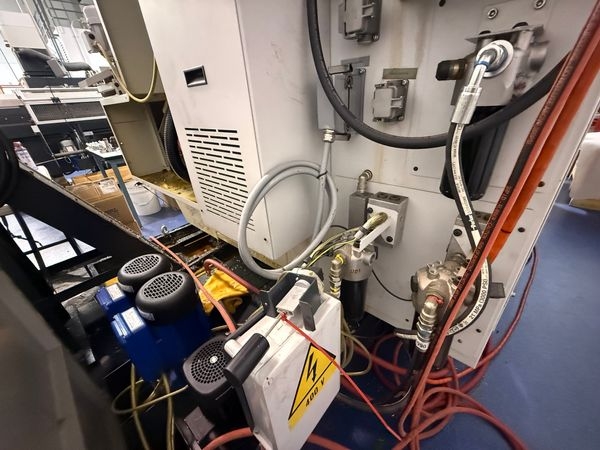

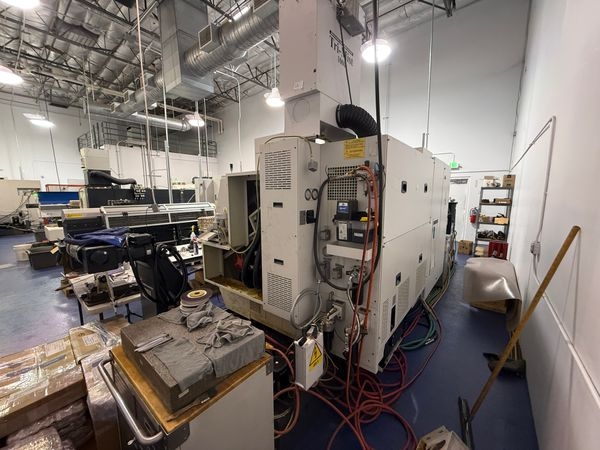

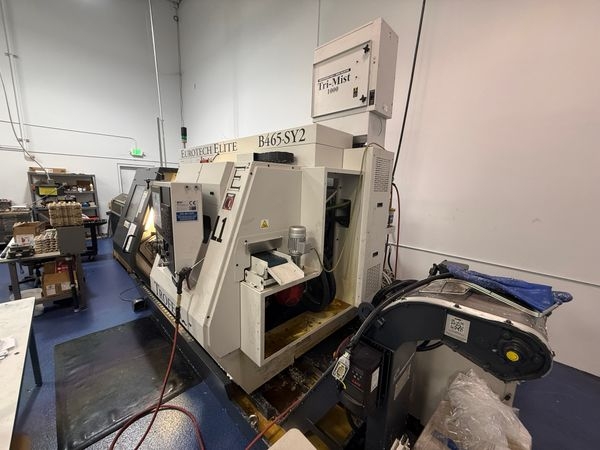

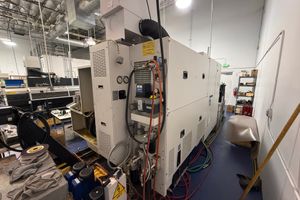

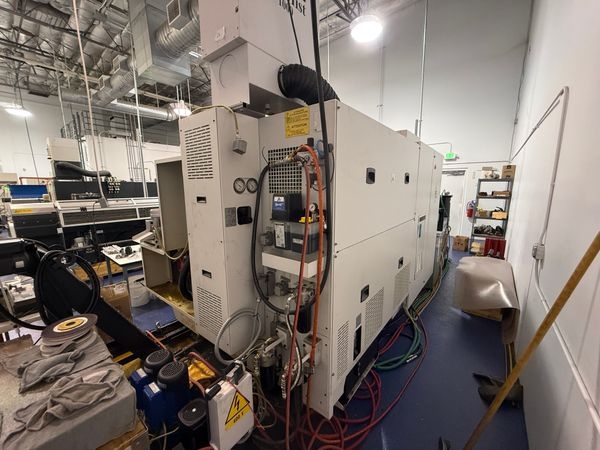

EUROTECH B465YS2 CNC Lathe

Bar Capacity: 2.75"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 35 HP
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 708 IPM
Max Swing: 20"
Distance Between Centers: 37.5"
Main Spindle Bore: 3.15"
Sub Spindle Speed: 5000 RPM
Sub Spindle Nose: 5" ASA
Sub Spindle Bore: 2.17"
Sub Spindle Motor: 15 HP
Y Axis Rapid Traverse: 354 IPM
Y Axis Travel: -1.57/+2.32"
B Axis Rapid Traverse: 1181 IPM
B Axis Travel: 26.35"

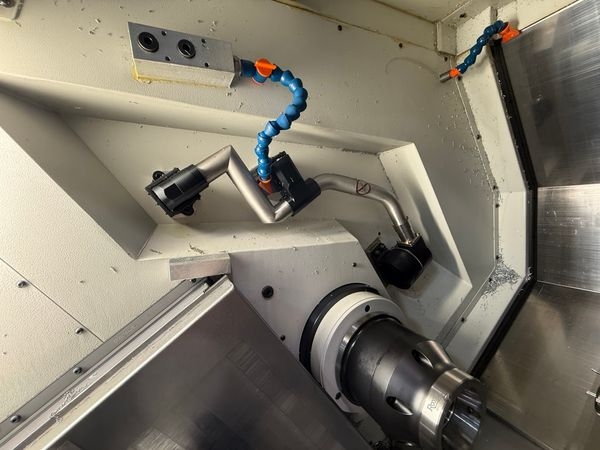

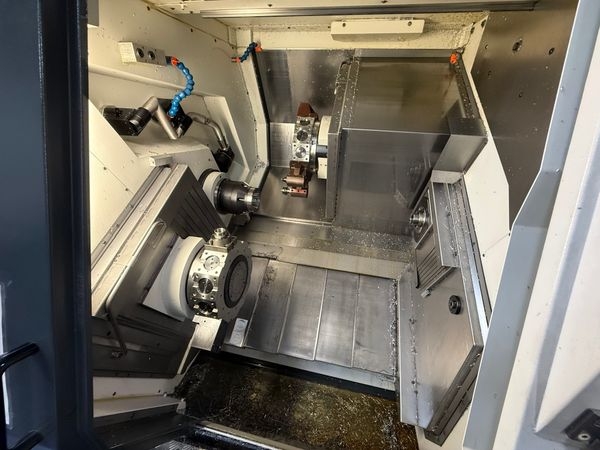

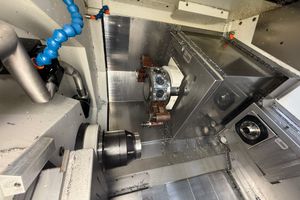

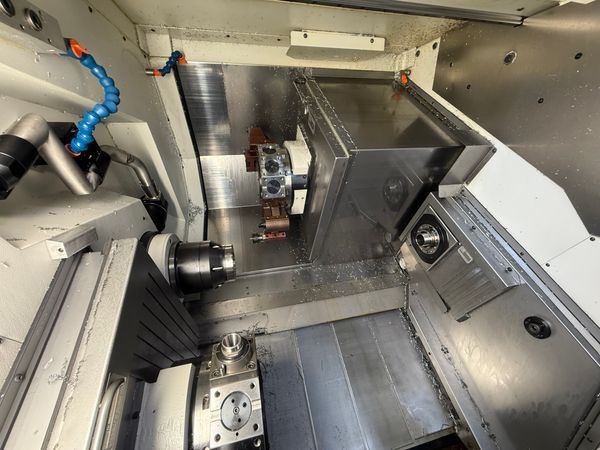

11-AXIS TURNING/MILLING CENTER w/ SUB-SPINDLE & (2) Y-AXIS LIVE-TOOLING

Dimensions: 173" x 85" x 89"
Weight: 18,000 LBS

Fanuc 31iB
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling

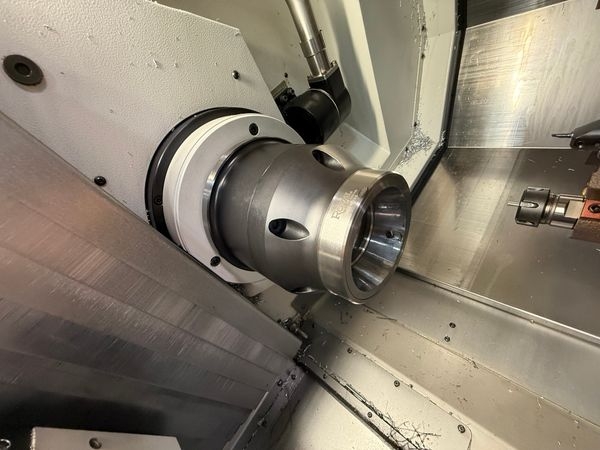

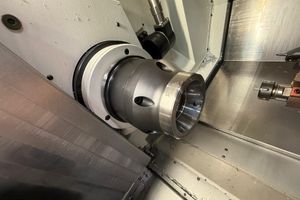

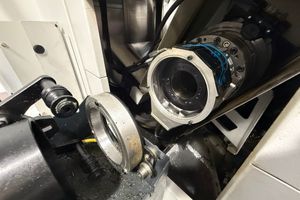

Sub Spindle
Y Axis
5 Axis

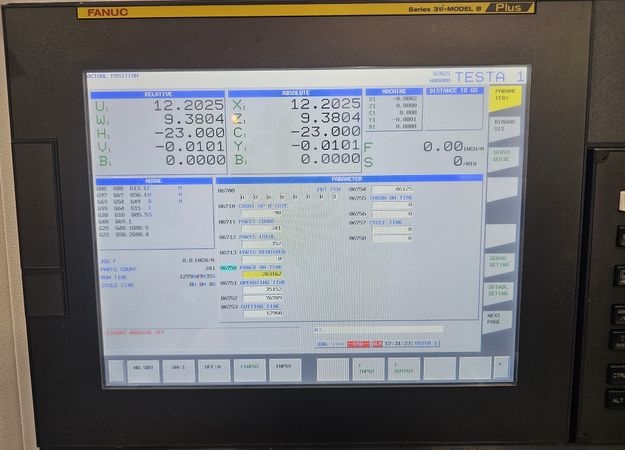

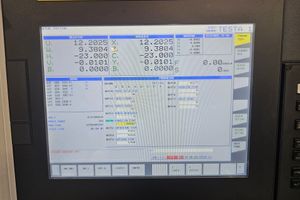

Fanuc 31iB CNC Control multi-channel control with 10.4” color LCD monitor and full keyboard.
C Axis Main & Sub Spindles

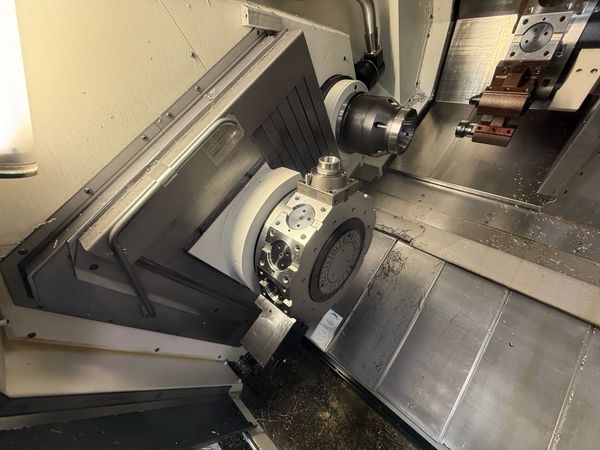

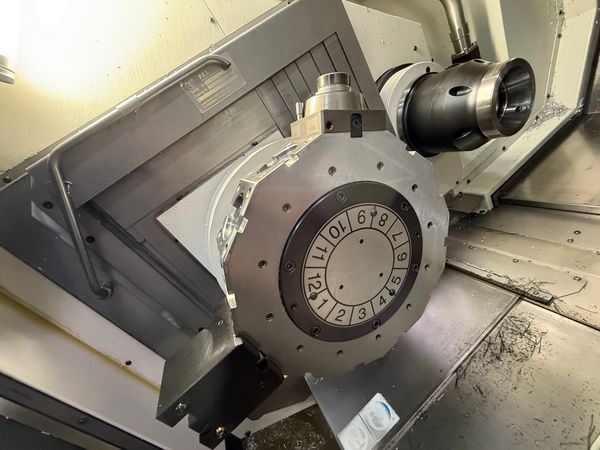

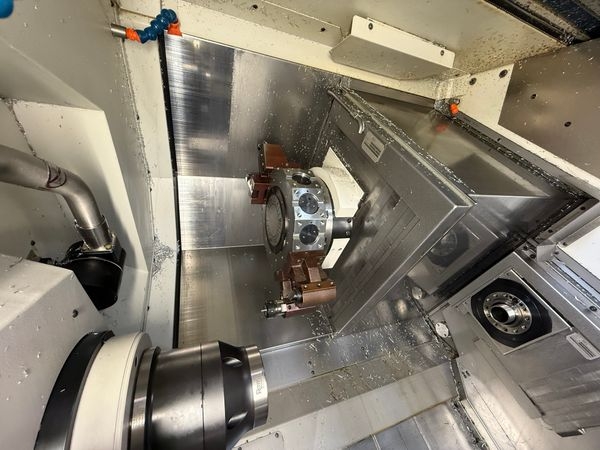

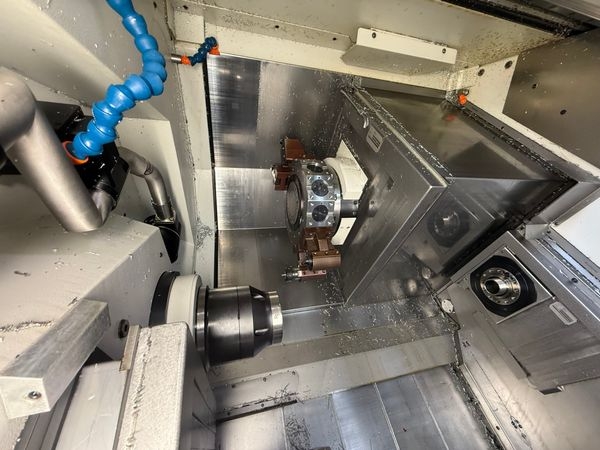

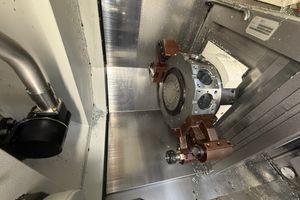

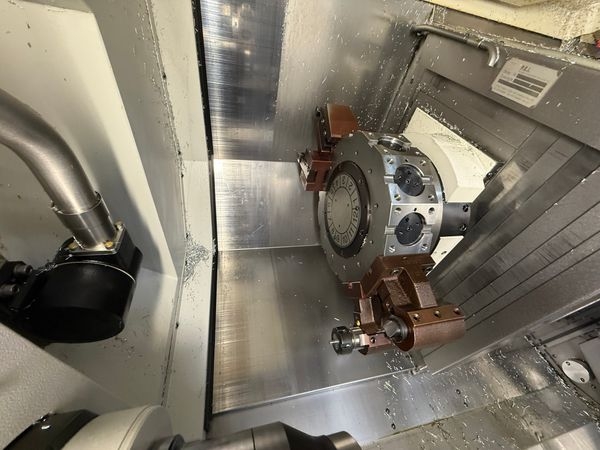

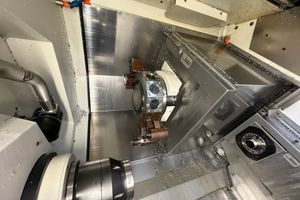

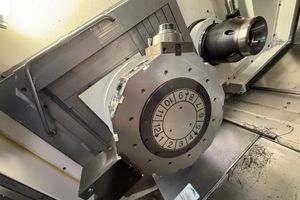

24 Live Tooling Stations (Up to 192 Cutting Tools)

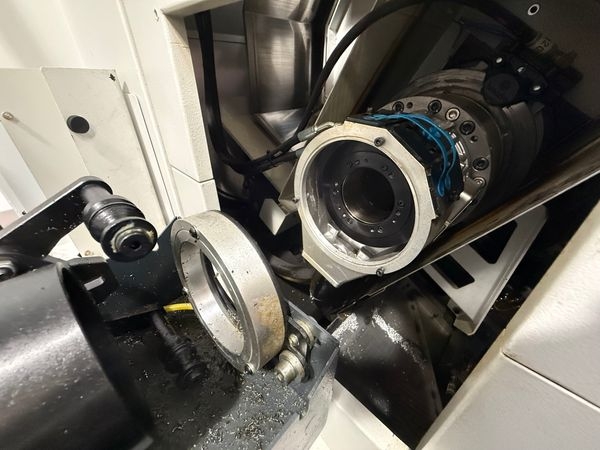

Clear-Shift Sub Spindle (E Axis)
Rigid tapping on main, sub-, and live-tool spindles

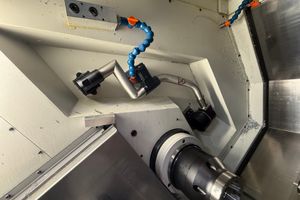

Tool probe
Eurotech tool monitoring system
Coolant flush system
Sub-spindle ejector and air blow

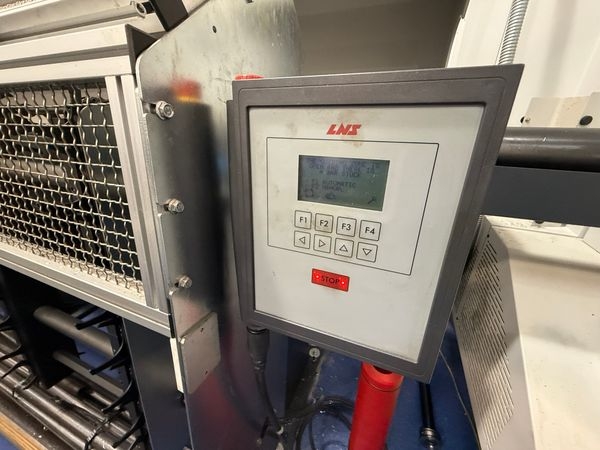

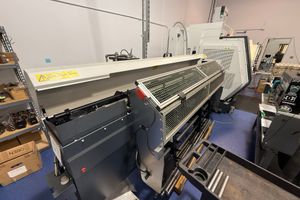

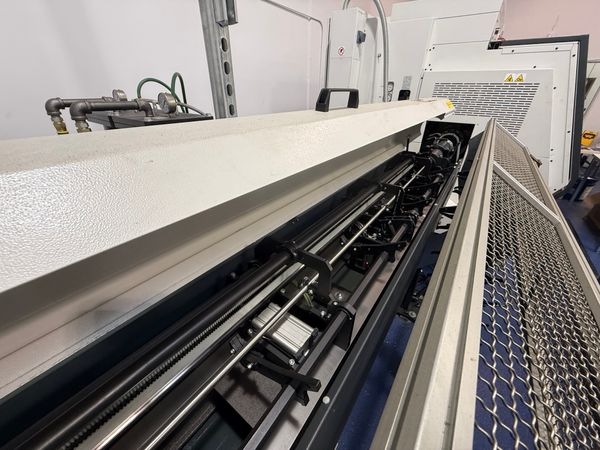

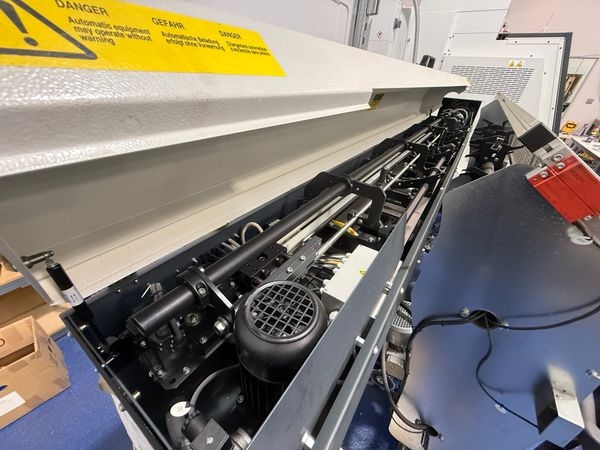

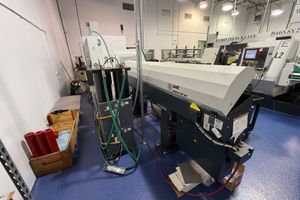

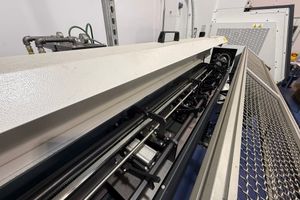

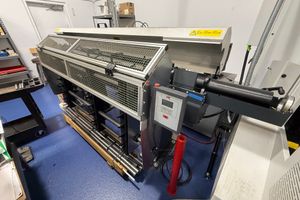

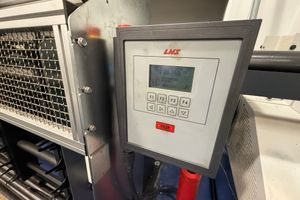

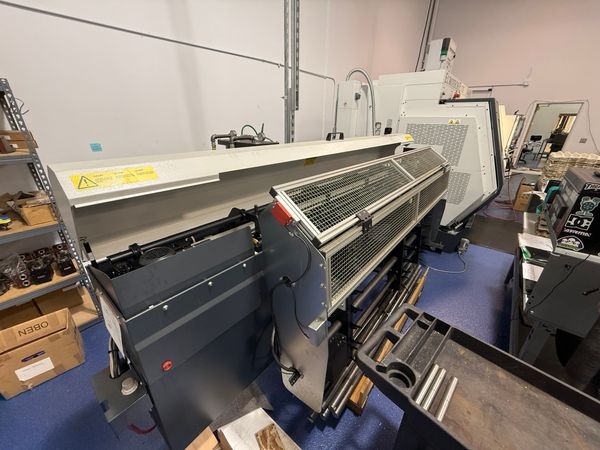

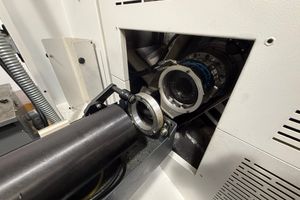

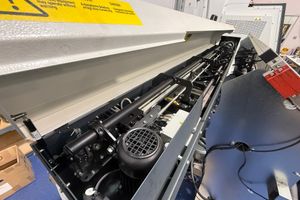

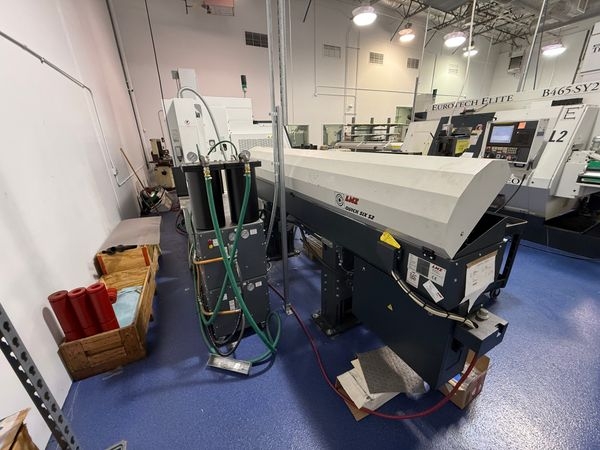

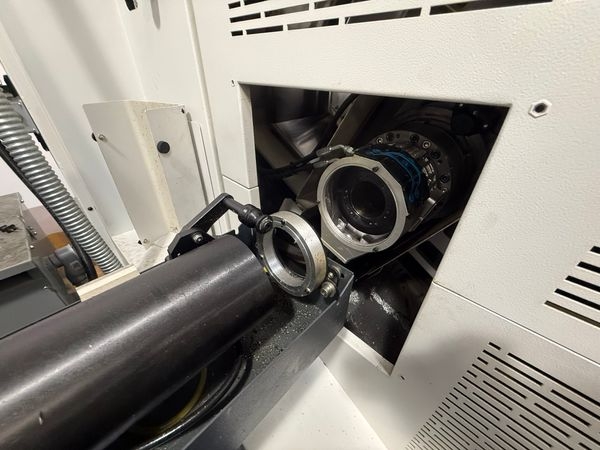

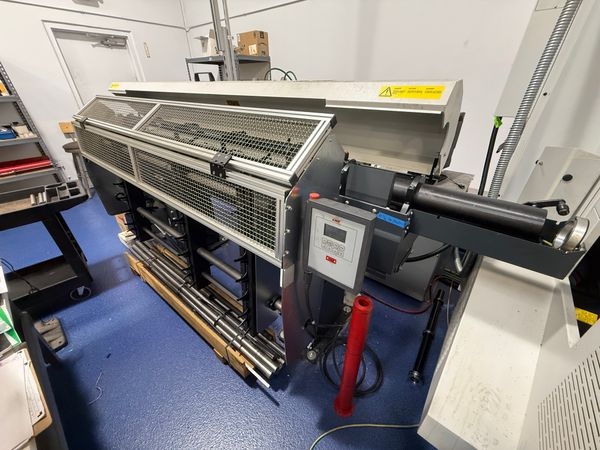

QUICK SIX S2 Six Foot Automatic Bar Feeds for Fixed Headstock Lathes

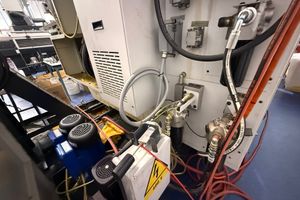

TRI-MIST 850 G2

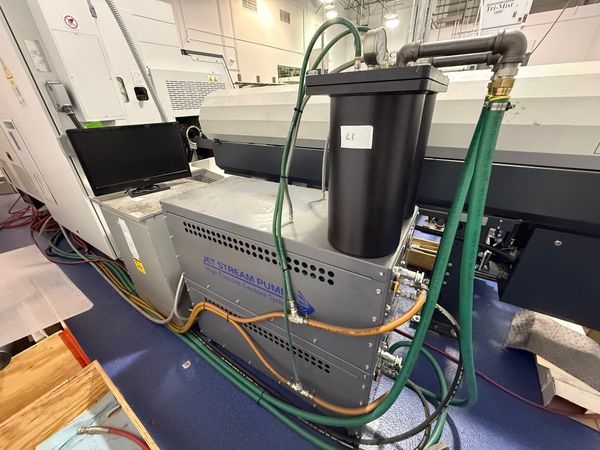

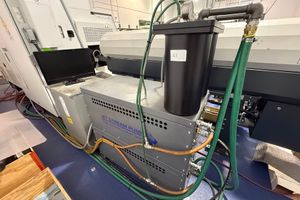

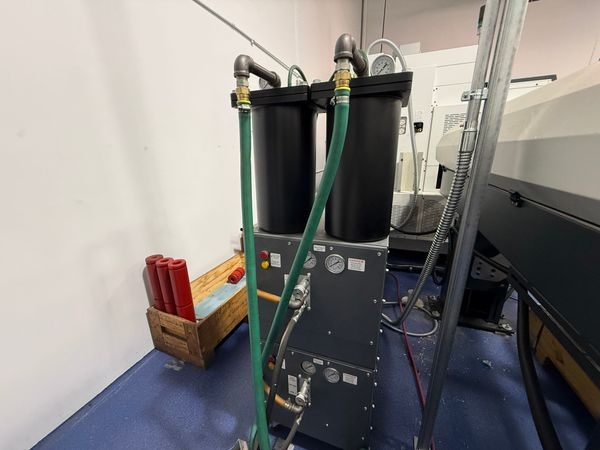

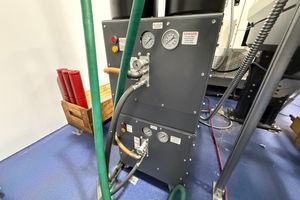

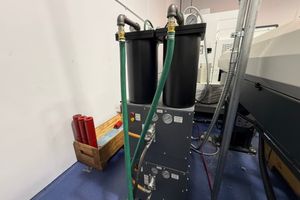

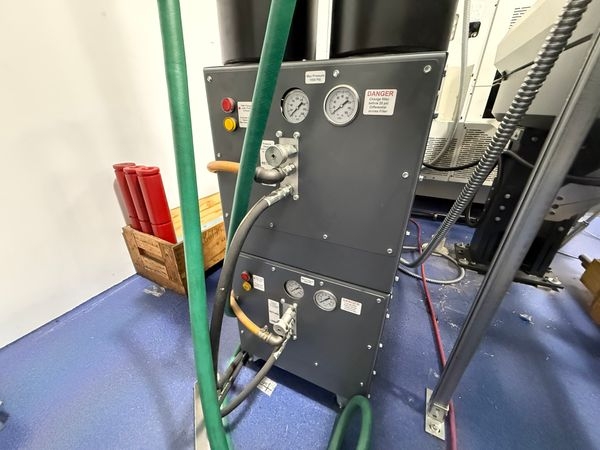

Dual Jet 2 High Pressure Unit - 1,000psi to the upper & lower turret simultaneous

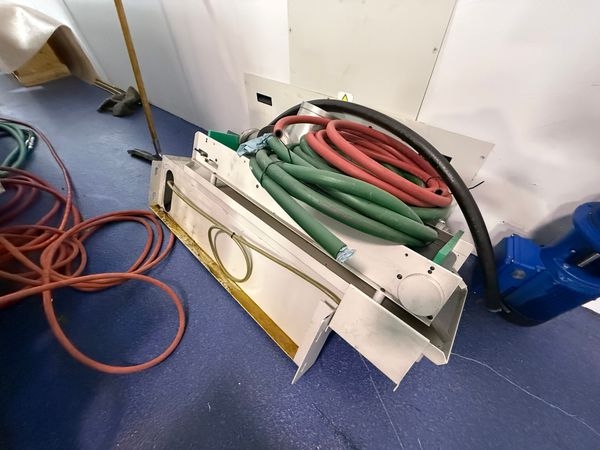

LNS TURBO MAGNETIC CHIP CONVEYOR
Coolant Through Sub-Spindle Option, 7-bar
CHUCK, COLLET, ACCU-LENGTH, QG-65, A2-6 EXTENDED LENGTH
CHUCK, COLLET, ACCU-LENGTH, QG-42, A2-6 ULTRA COMPACT
ADAPTER PLATE A2-5 TO A2-6
